Product Features
Default outputs include:
- 3-axis angular velocity
- 3-axis linear acceleration
- System temperature
Applications
- UAV attitude reference and navigation control
- Pipeline inspection and monitoring
- Radar / infrared / EO pod stabilization platforms
- Fire control and guidance systems
- Vehicle attitude measurement
- Mobile mapping systems
- Oil and gas drilling exploration
Performance Specifications
| Parameter | Specification |
| Gyroscope | |
| Measurement Range | –400°/s ~ +400°/s |
| Bias (full temperature) | ≤ 1°/h |
| Bias Stability (1σ, 10s) | ≤ 0.3°/h |
| Bias Repeatability (1σ) | ≤ 0.3°/h |
| Scale Factor Nonlinearity | ≤ 100 ppm |
| Bandwidth | ≥ 200 Hz |
| Accelerometer | |
| Measurement Range | –10 g ~ +10 g |
| Bias (full temperature) | ≤ 5 mg |
| Bias Stability (1σ, 1s) | ≤ 0.15 mg |
| Bias Repeatability (1σ) | ≤ 0.15 mg |
| System | |
| Data Update Rate | 200 Hz |
| Electrical Interface | RS422 |
| Power Supply | 9 V ~ 36 V |
| Power Consumption | < 8 W |
| Weight | < 800 g |

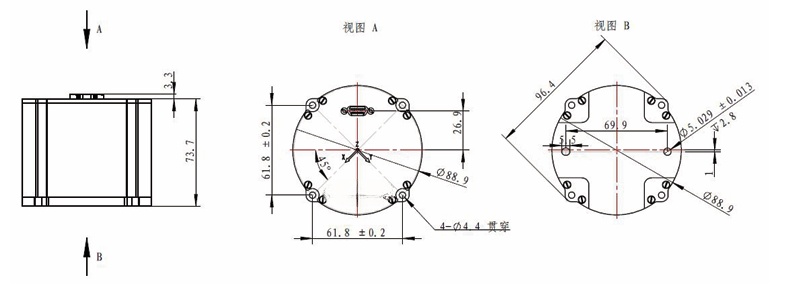

| Dimensions | Φ 88.9 mm × 73.7 mm |
| Color | Silver |
| Operating Temperature | –40 °C ~ +70 °C |
| Storage Temperature | –55 °C ~ +85 °C |
Key Benefits
- High-precision fiber optic gyroscope IMUwith low bias drift
- Advanced static and dynamic error compensation for improved reliability

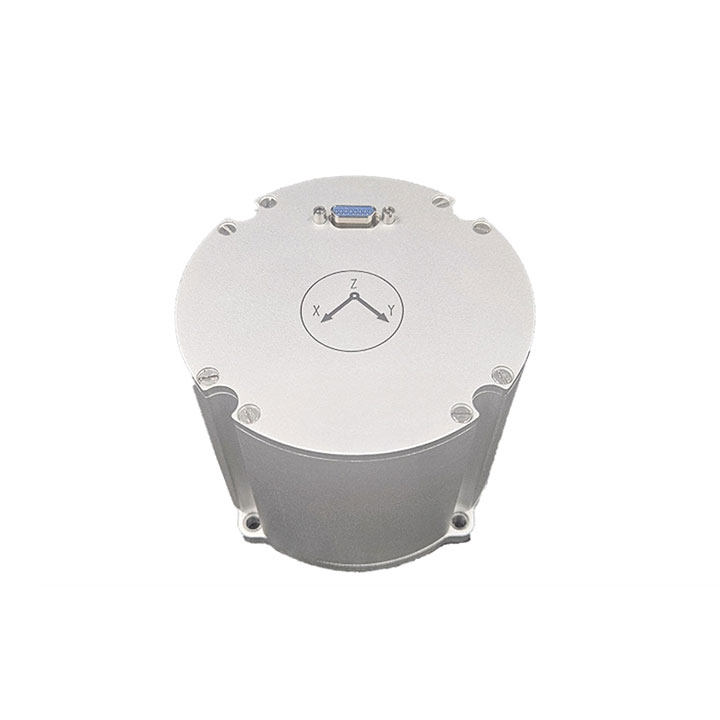

- Rugged cylindrical design for industrial and aerospace integration
- Wide operating temperature range for harsh environments
- Strong performance in long-duration missions requiring navigation stability
Q1: What makes China Moneypro MP-IMU1303 different from a MEMS IMU?
A1: China Moneypro MP-IMU1303 fiber optic gyroscope IMU (FOG IMU) offers significantly higher accuracy and long-term stability compared to MEMS IMUs. With a gyro bias stability ≤ 0.3°/h and full-temperature bias ≤ 1°/h, it is ideal for applications requiring high precision inertial navigation, such as UAVs, defense, and oil drilling systems.
Q2: What level of accuracy can the China Moneypro MP-IMU1303 achieve?
A2: China Moneypro MP-IMU1303 high precision IMU provides:
- Gyroscope: bias stability ≤ 0.3°/h (1σ, 10s)
- Accelerometer: bias stability ≤ 0.15 mg (1σ, 1s)
- Bandwidth: ≥ 200 Hz
These specifications make it suitable for precision mapping, guidance systems, and aerospace navigation, where small errors can have large impacts.
Q3: What are the main applications of China Moneypro MP-IMU1303?
A3: China Moneypro MP-IMU1303 fiber optic IMU is widely applied in:
- UAV attitude control and navigation
- Pipeline inspection and geophysical mapping
- Radar/EO/IR payload stabilization
- Vehicle and ship dynamics monitoring
- Oil drilling and exploration systems
- Defense and aerospace guidance control
Q4: Is China Moneypro MP-IMU1303 suitable for harsh environments?
A4: Yes. With a rugged cylindrical design and wide temperature range (–40 °C to +70 °C, storage –55 °C to +85 °C), the NV-IMU3031 inertial measurement unit ensures stable operation in extreme aerospace, industrial, and defense conditions.
Q5: What are the integration and power advantages of China Moneypro MP-IMU1303?
A5: China Moneypro MP-IMU1303 supports RS422 interface with a 200 Hz update rate and power consumption < 8 W, making it efficient for integration into navigation systems, gimbals, drilling rigs, and unmanned platforms without excessive energy demand.
