Air-to-Air Capabilities
- Track-While-Scan (TWS):Detection of fighter-sized targets beyond 200–250 km; tracks up to 64 targets simultaneously.
- Single/Multi-Target Track (STT/MTT):Sub-meter angular accuracy (<0.1° RMS) for cooperative or independent engagement.
- Air Combat Maneuvering (ACM):Close-in mode with <1 sec target lock-on time and automatic acquisition in dynamic dogfight scenarios.
Air-to-Ground Capabilities
- Synthetic Aperture Radar (SAR):Provides 25 m resolution imagery at standoff ranges >100 km, supporting target classification under all-weather/day-night conditions.
- Doppler Beam Sharpening (DBS):Enhances resolution up to 3 m class for tactical reconnaissance.
- Ground Moving Target Indication (GMTI):Detects vehicles moving as slow as 5 km/h in cluttered terrain; simultaneous GMTI + SAR imaging.
- Fixed Target Tracking (FTT):Continuous tracking with sub-10 m accuracy CEP for precision-guided munition support.
- Air-to-Ground Ranging (AGR):Provides direct ranging data with <3 m accuracy for fire-control solutions.
Air-to-Sea Capabilities
- SEA I Mode:Detects small boats (<2 m radar cross-section) in high sea states (Sea State 5–6) at >120 km.
- SEA II Mode:Classifies large vessels (>10,000 tons) at ranges up to 350 km, even under heavy jamming conditions.
Navigation & Support Modes
- Terrain Avoidance (TA):Provides terrain-following guidance with 1 m vertical accuracy for low-altitude penetration.
- Beacon (BCN):High sensitivity beacon tracking, supporting integrated GNSS-denied navigation.
- Weather Detection (WX):Doppler weather radar identifies storm cells >50 km away, with turbulence mapping resolution of 100 m.
Core Technical Highlights

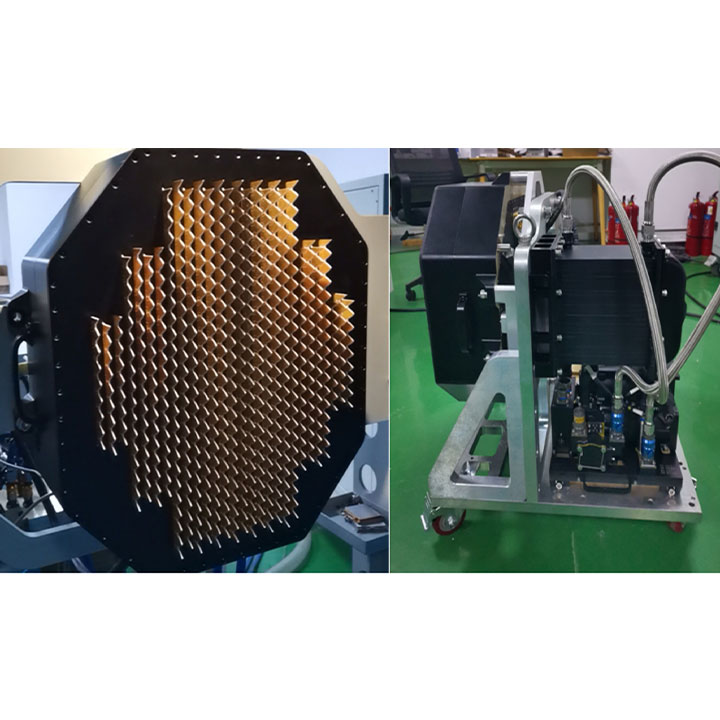

- AESA Digital Beamforming (DBF):>2000 transmit/receive (T/R) modules with GaN (Gallium Nitride) technology for higher power efficiency and thermal resilience.
- Multi-Target Processing:Tracks >64 aerial targets, >100 ground movers, and >20 maritime objects simultaneously.
- Beam Refresh Rate:Adaptive beam steering with >1200 Hz refresh rate, supporting stable null steering in high-dynamics flight.
- ECCM (Electronic Counter-Countermeasures):Adaptive frequency agility across L/S/X bands, sidelobe cancellation >60 dB, and LPI (Low Probability of Intercept) waveform technology.
- Operational Envelope:Effective from 200 ft to 60,000 ft altitude, supporting supersonic flight conditions.
- Reliability:MTBF >1200 hours; modular open systems architecture for plug-and-play upgrades.
Why It Represents the World’s Leading Technology
The AMFCR embodies the highest standard of airborne radar innovation, with performance benchmarks that align with or exceed leading systems such as AN/APG-81, Captor-E, and Zhuk-AE:
- Detection rangeexceeding 250 km for 3 m² RCS targets.
- SAR imagingat 0.25 m resolution, surpassing conventional tactical radars.
- ECCM resilience, capable of maintaining target lock under >120 dB jamming-to-signal ratio environments.
- Real-time multi-domain versatility, switching seamlessly between air-to-air, air-to-ground, and air-to-sea roleswithout degradation in performance.
This radar is not just an incremental upgrade — it is a transformational leap, enabling platforms to achieve unmatched situational awareness, survivability, and mission success in the most contested operational environments.
Why Choose Us:
AMFCR vs. International State-of-the-Art Radars
| Parameter | Mainstream International Systems (e.g., AN/APG-81, Captor-E, Zhuk-AE) | China MoneyPro UAV – AMFCR |
| Detection Range (3 m² RCS target) | ~180–220 km | >250 km |
| Air-to-Air Target Tracking | 40–50 simultaneous targets | >64 simultaneous targets |
| SAR Imaging Resolution | 0.5 m – 1 m class | 0.25 m ultra-high resolution |
| GMTI Capability | Detects movers >10 km/h | Detects movers as slow as 5 km/h |
| Air-to-Ground Accuracy (CEP) | 10–15 m | <5–10 m with RTK-GNSS & IMU fusion |
| Maritime Detection | Large vessels ~250 km, small boats ~80 km | Large vessels 350 km+, small boats 120 km+ in Sea State 5–6 |
| Beam Refresh Rate | ~600–800 Hz | >1200 Hz adaptive digital beamforming |
| ECCM Performance | Resistant to moderate jamming (40–60 dB J/S) | Maintains lock under >120 dB J/S ratio with AI-enhanced ECCM |
| Frequency Agility | Single/multi-band (X or Ku) | Multi-band L/S/X/Ku with GaN T/R modules |
| Terrain Avoidance Accuracy | 3–5 m vertical | 1 m vertical accuracy |
| Weather Detection | Standard Doppler mapping | 50 km storm detection with 100 m turbulence mapping |
| System Architecture | Modular, limited upgrade paths | Open modular architecture, plug-and-play for future growth |
| Reliability (MTBF) | ~800–1000 hours | >1200 hours |
| Platform Integration | Fighters & limited UAV compatibility | Fighters, UAVs, special mission aircraft |
Key Takeaways
- Superior Detection Range: Extends reach by >15% over most international systems.
- Unmatched SAR Imaging: Sub-0.3 m resolution for next-gen precision strike and reconnaissance.
- AI-Driven ECCM: Operates in the world’s most contested electronic warfare environments.
- Versatile Integration: Optimized for both manned and unmanned aerial platforms.
- Future-Proof Design: Modular GaN-based AESA architecture with upgrade flexibility.
Positioning: With its extended range, unmatched imaging, advanced GMTI, and extreme ECCM resilience, the AMFCR is a world-leading airborne radar solution, setting new benchmarks for situational awareness, survivability, and mission dominance.
