Product Detail

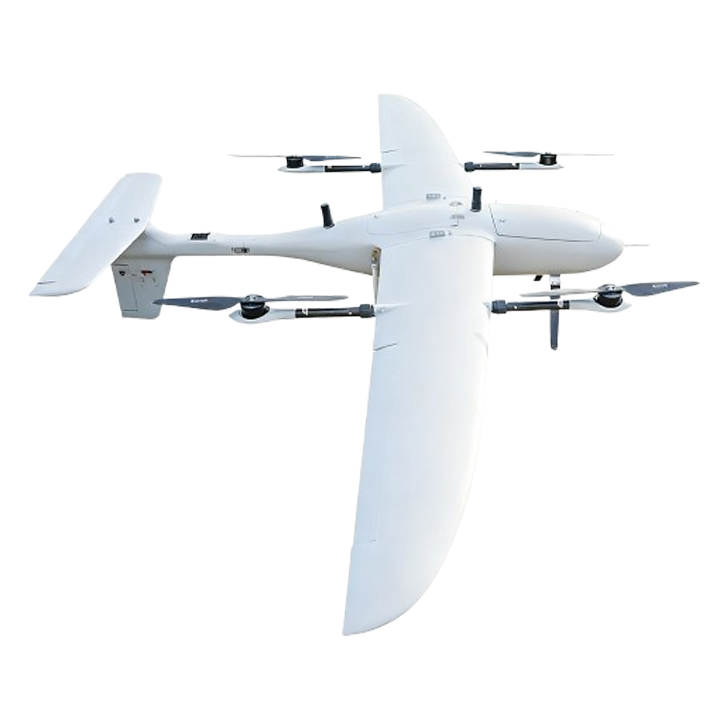

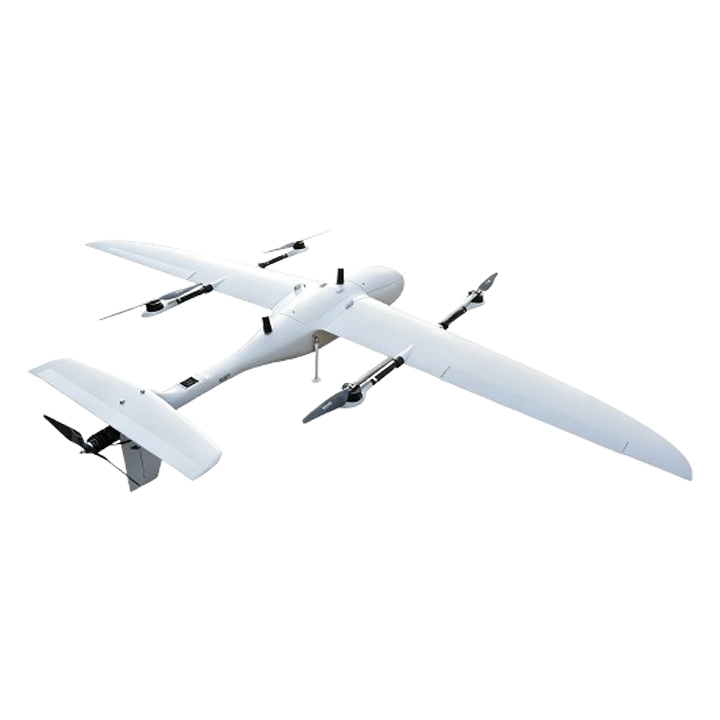

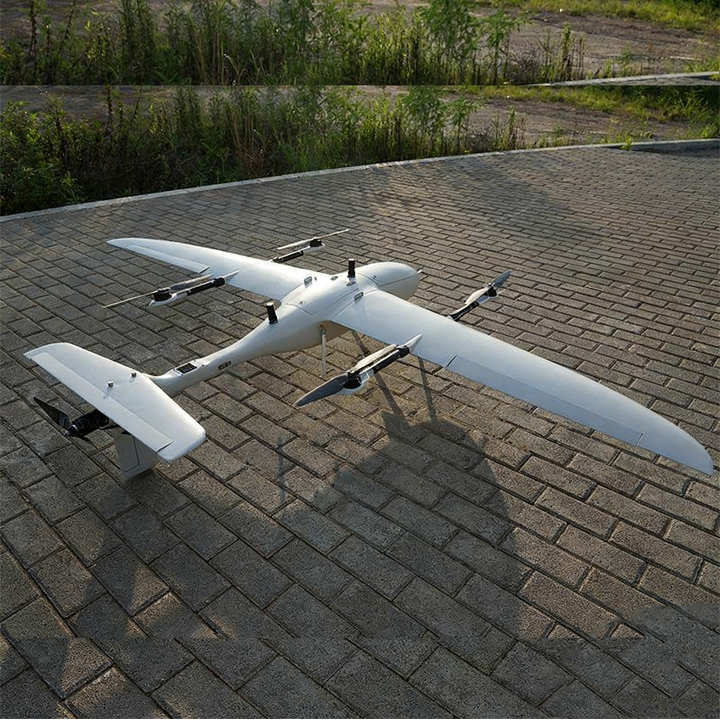

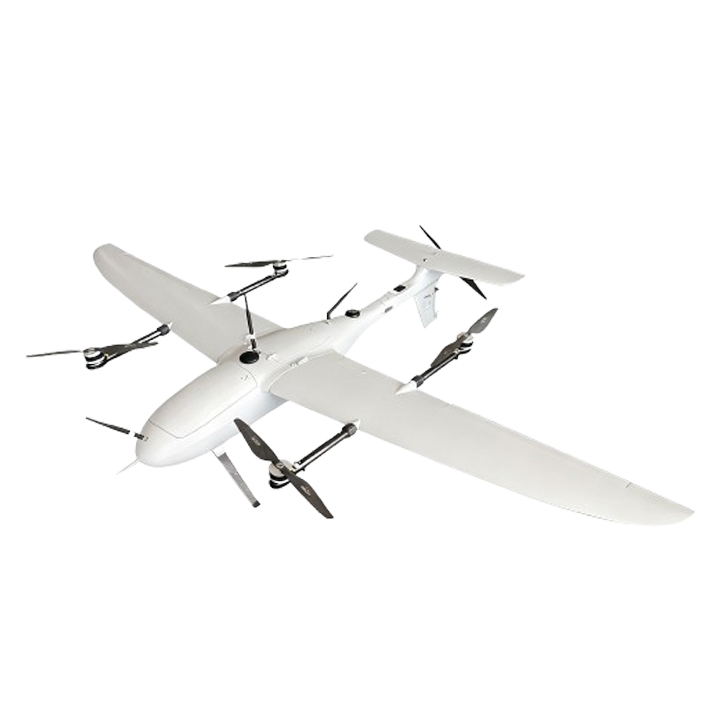

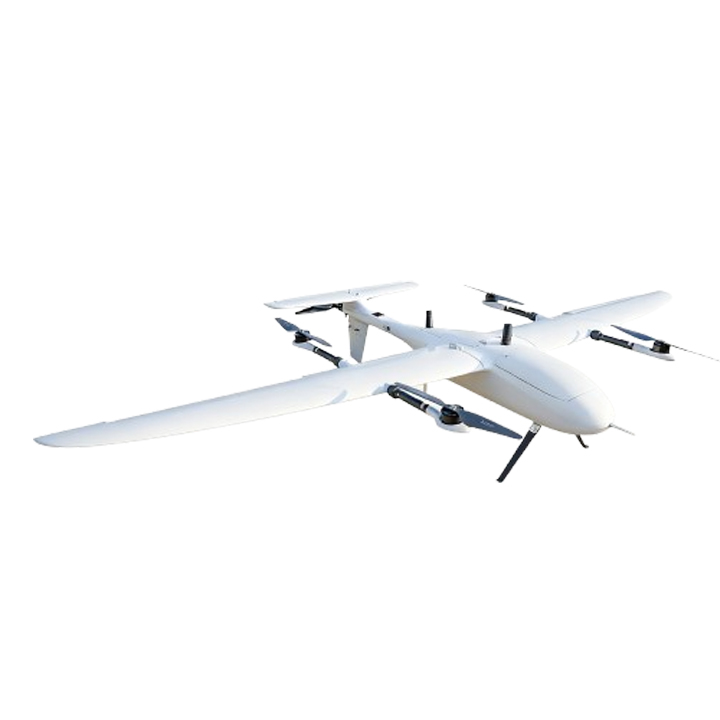

The MVT250 boasts extended endurance, reaching up to 4 hours when unloaded and 3.5 hours with a 1kg payload—performance enabled by two Moneypro 6S 30,000mAh lithium-ion batteries.
Constructed from carbon fiber and glass fiber, the drone achieves an optimal balance of light weight and durability: its fuselage weighs just 3.5kg, with a Maximum Take-Off Weight (MTOW) of 13.5kg. For enhanced operational convenience in outdoor missions, it features fully quick-release connectors for the wings, arms, and tails, plus a foldable nose gear—allowing assembly and transport in as little as 10 minutes.
In terms of flight capabilities, the MVT250 hits a maximum speed of 100km/h and can withstand Grade 6 winds.
Combining long endurance and high-efficiency flight performance, the MVT250 is an ideal UAV for diverse missions when paired with payloads like the Moneypro A30TR, VO305, and Q30TIRM. These applications include mapping & surveying, surveillance & inspection, and more.
Packing List for Different Versions:
| Version |
CUAV V5+ RTF |
Cube Orange RTF |
CUAV X7+ RTFÂ |
| Flight Controller |
CUAV V5+ |
Cube Orange |
CUAV X7+ |
| GPS |
NEO3 GNSS |
Here 3 GNSS |
NEO3 Pro GNSS |
| VTOLÂ Airframe |
√ |
√ |
√ |
| VTOL Motor |
4pcs |
4pcs |
4pcs |
| VTOL ESC |
4pcs |
4pcs |
4pcs |
| Airplane Motor |
1pc |
1pc |
1pc |
| Airplane ESC |
1pc |
1pc |
1pc |
| VTOL Propeller |
2Pairs |
2Pairs |
2Pairs |
| Airplane Propeller |
1pc |
1pc |
1pc |
| Servo |
4pcs |
4pcs |
4pcs |
| UBEC |
1pc |
1pc |
1pc |
| Night Light |
1pc |
1pc |
1pc |
| RC&Ground Station |
1x FT24 14Channels RC |
1 x DK32S 16Channels RC |
1 x DK32S 16Channels RC |
| Video Transmitter |
/ |
/ |
/ |
| Battery |
/ |
/ |
/ |
| Battery Charger |
/ |
/ |
/ |
| Flight Case |
√ |
√ |
√ |
| Assembling, tuning and flight test service |
√ |
√ |
√ |
Specification
| Model No |
eVT250 |
| Type |
VTOL fixed wing |
| Color |
White color as default （support customization) |
| Wingspan |
2500mm |
| Length |
1500mm |
| Belly to Ground |
160mm(land gear height support customized) |
| Battery compartment size |
280*160*100mm |
| Device compartment size |
150*130*120mm |
| Payload compartment size |
220*170*110mm |
| Material |
Carbon fiber+Glass fiber |
| Airframe Weight |
3.5kg |
| MTOW |
13.5kg(include batteries) |
| Max Payload |
2kg |
| Suggested load |
1.5kg (A30TR) |
| Flight time |
4hrs (no load), 3.5hrs@1.2kg load |
| Max Flight Speed |
100km/h |
| Suggest cruising Speed |
75-90km/h |
| Max climb rate |
5m/s |
| Max angel of roll |
35° |
| Max Flight Altitude |
3000m |
| Max Wind resistance |
Grade 6 |
| Battery (Recommended) |
2*6S 30000mAH HED Li-ion |
| Working Temperature |
-20℃~50℃ |
| IP Grade |
IPX3 |
| Package Size |
1260x486x405mm |
