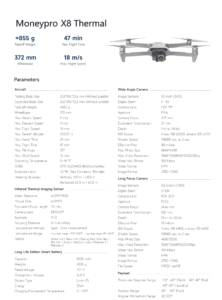

Performance Specifications
- Weight: ~855g (Folded: 204×106×72.6mm | Expanded: 242×334×72.6mm)
- Flight: 47min max / 18m/s speed / 5,000m altitude
- Resilience: 12m/s wind resistance / 0-40°C operating range
- GNSS: Quad-system (GPS+GLONASS+BeiDou+Galileo) + 12-PIN expansion
Tri-Sensor Imaging System
- Visual Cameras:
- Wide-Angle: 48MP, f/1.6, 5x zoom (4K/60fps)
- Telephoto: 13MP, 30x zoom, 120mm focus (4K/30fps)
- Thermal Core:
- 640×512 IR sensor | f/1.0 aperture
- -20°C~500°C range (dual-gain modes)
- Spot/area measurement + 10 color palettes
Industrial Safety Architecture
- Obstacle Avoidance:
- Forward/rear vision (0.5-20m) + inferior positioning
- ±0.5m hover accuracy at 6m/s avoidance
- Airframe Design:
- 35° max tilt | 5m/s ascent speed
- Foldable 372mm wheelbase
Power & Payload Engineering
- Battery: 5,000mAh Li-ion (72Wh) / 47-min endurance
- Gimbal Control:
- 3-axis stabilization (-115° to 40° pitch)
- Angular momentum ±0.005° precision
- Payload Support:
- Compatible with multispectral/LiDAR modules
Sector-Specific Applications
- Energy: Solar panel thermography, substation scans
- Fire Rescue: Heat-source detection through smoke
- Infrastructure: Building insulation audits, pipeline monitoring
- Night Ops: Search & rescue with IR/long-zoom fusion
China Moneypro Advantages
- Thermal Expertise: Calibrated IR sensor integration
- Global Logistics: Shenzhen port access for fast delivery
- R&D Ecosystem: Moneypro camera tech + 12-PIN open interface
