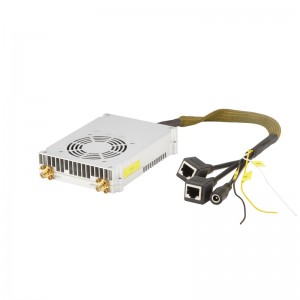

China Moneypro Dual Band Mini UGV Data Link For Low Latency Video And Telemetry Data



Unlock Deep Operations with Reliable Robotic Control

Introducing the FDM-6823UG UGV Communications Solution—your key to maintaining seamless, real-time command over robotic platforms operating deep within challenging environments. Whether your UGVs are navigating buildings, pipelines, culverts, or other complex structures, this system delivers high-bandwidth video, command and control (C2), system health, and telemetry data from a safe standoff distance. Stay connected, informed, and in control—no matter where your robots go.

Key Features & Capabilities:

  • High-Speed Connectivity: 2×2 MIMO with 100–120 Mbps throughput for crisp HD video and real-time data.
  • Scalable Network: One master node supports up to 64 slave nodes.
  • Extended Range: 1–3 km ground-to-ground, even in non-line-of-sight (NLOS) conditions.
  • Flexible Networking: Supports point-to-point and point-to-multipoint configurations.

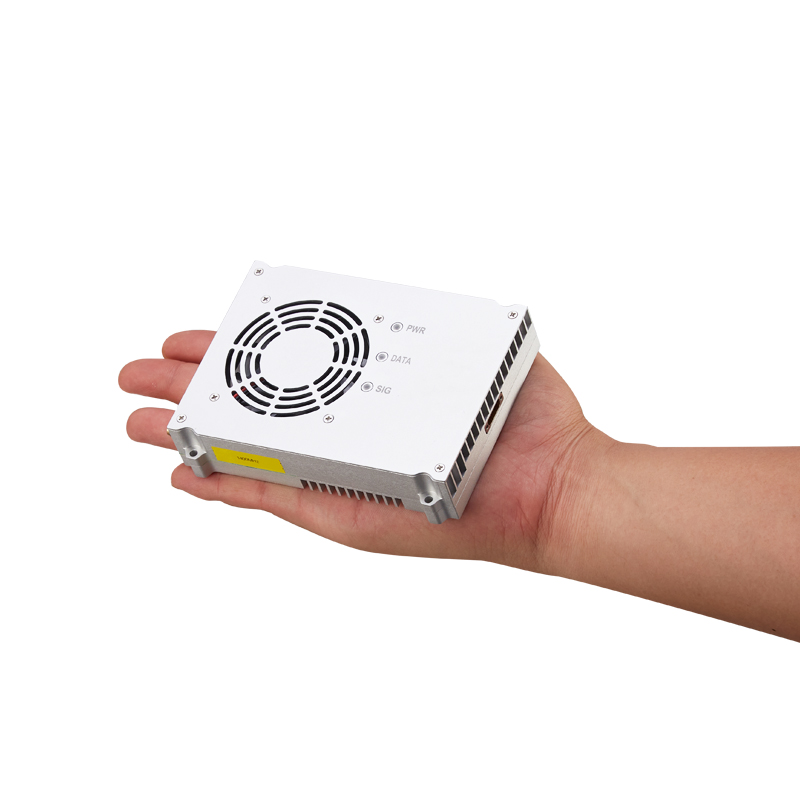

  • Compact & Lightweight: Just 12.7 × 9.4 × 1.8 cm and 281 g—designed for integration without compromise.
  • Multi-Band Flexibility: Software-selectable 600 MHz + 1.4 GHz bands with sensing for intelligent interference avoidance.
  • Anti-Jamming Resilience: High-speed frequency hopping (≥300 hops/sec) ensures reliable performance in contested spectra.
  • Swarm-Enabled: PtMP (point-to-multipoint) wireless linking allows coordinated operations across multiple manned and unmanned systems.

Built for Demanding Missions

The FDM-6823UG utilizes an advanced IP star network and high-speed FHSS technology to provide robust, high-definition video streaming and telemetry data—ideal for non-line-of-sight tele-robotics missions in harsh urban settings and remote locations.

Engagement-focused improvements:

  • Stronger opening that connects the product to user goals.
  • Bullet points reorganized for better flow and readability.
  • Clearer benefit statements (e.g., “Stay connected, informed, and in control”).
  • Active voice and concise phrasing throughout.
  • Added subheadings to break up technical details and improve scanability.
  • Mission-focused closing to reinforce use-case relevance.

Let me know if you’d like this tailored for a specific audience (e.g., technical spec sheet, marketing brochure, or proposal language).



Category:
Description

Key Features

Multi-Band Flexibility
IWAVE’s Star Network Technology allows a single radio device to operate across multiple bands and channels. With simple software controls, users can seamlessly switch between the L-band (1.4GHz) and UHF (600MHz), taking advantage of superior signal penetration through obstacles.

What This Means for You:

  • Ultra-Wide Frequency Range: Choose from 1420–1530MHz and 566–678MHz to enhance anti-interference performance.

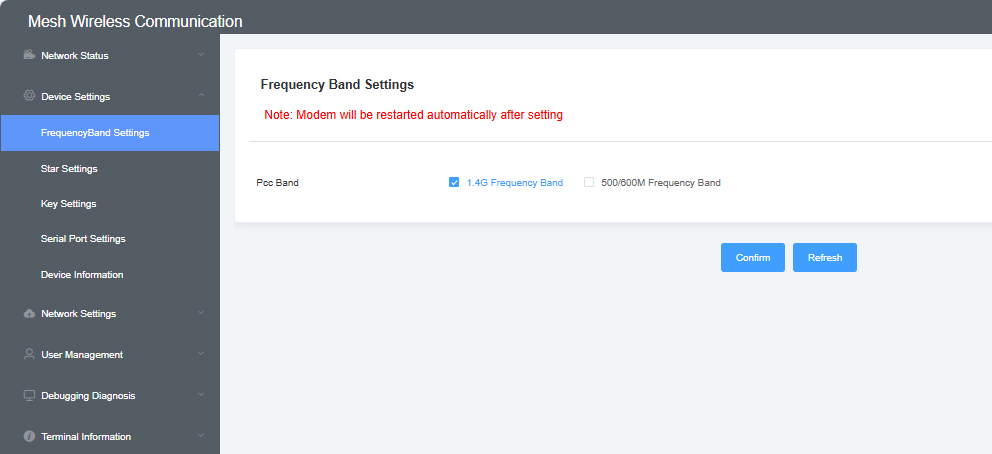

  • Easy Frequency Switching: Instantly toggle between 600MHz and 1.4GHz via intuitive management software—no technical expertise needed.



ugv systems

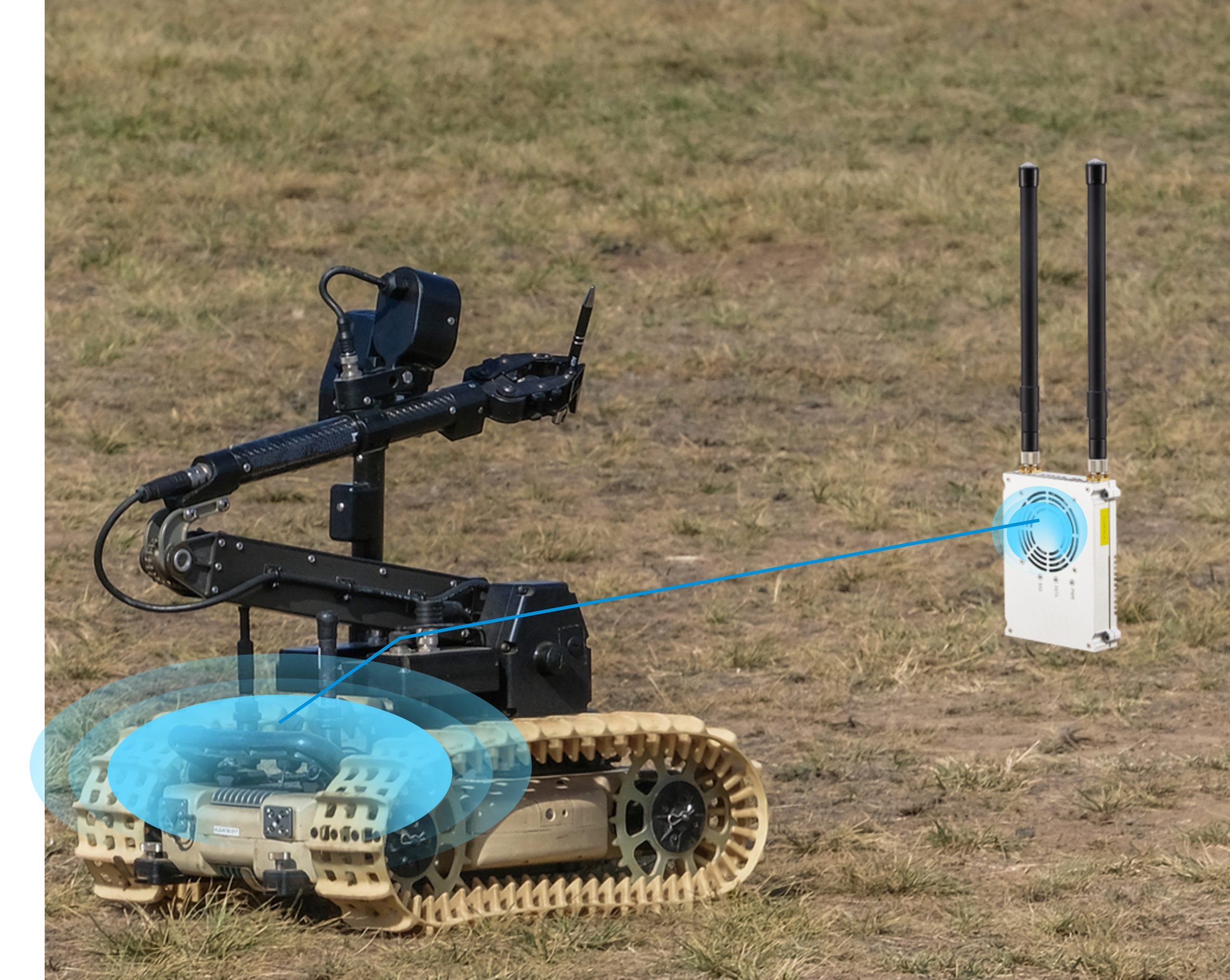

robotic



Powerful & Secure Wireless Datalink for UGVs & Robotic Swarms

Engineered for mission-critical performance in demanding environments.

🚀 Core Performance Features

– High-Speed Connectivity: 100–120 Mbps throughput enables real-time, full HD video streaming. – Extended Range: 1–3 km reliable non-line-of-sight (NLOS) range for ground-to-ground operations. – Massive Network Scale: Supports up to 64 nodes—control a swarm or convoy with one master unit. – Flexible Networking: Choose between Point-to-Point (P2P) or Point-to-Multipoint (P2MP) modes.

🛡️ Advanced Security & Reliability

– Military-Grade Encryption: AES128 secures your wireless link against unauthorized access. – Strong Anti-Jamming: Multi-band sensing and ultra-fast frequency hopping (300+ hops/sec) maintain connectivity in contested RF environments. – Dual-Band Agility: Software-selectable 600 MHz or 1.4 GHz bands let you avoid interference and optimize signal penetration.

⚙️ Robust Hardware Design

– 2×2 MIMO Technology: Ensures stronger signal stability and consistent connections. – High-Power Output: 5W amplifier extends communication distance and enhances penetration. – Compact & Lightweight: Ultra-portable form factor (12.7 × 9.4 × 1.8 cm, 281 g) for easy integration into any platform.

Key Technologies Explained

📡 Anti-Jamming Capability

Utilizes Frequency Hopping Spread Spectrum (FHSS) with hopping rates exceeding 300 hops/sec—ideal for low-latency, high-reliability missions in congested or adversarial signal environments.

📶 Long Non-Line-of-Sight Range

Combines ultra-high sensitivity (-102 dBm/20 MHz), dual-band flexibility, and advanced FHSS to deliver clear communication over 3+ km, even in complex urban or terrain-obstructed settings.

🔧 Easy Integration

Comes complete with API documentation, AT commands, 3D model files, and dedicated technical support—allowing seamless integration into advanced robotic and unmanned systems.

Your Single-Radio Swarm Solution

The FDM-6823UG UGV Datalink provides a unified communication platform to enable convoy operations, robotic swarms, and coordinated missions across multiple manned and unmanned systems.Ready to deploy? Integrate the FDM-6823UG for long-range, high-bandwidth, and secure wireless control.

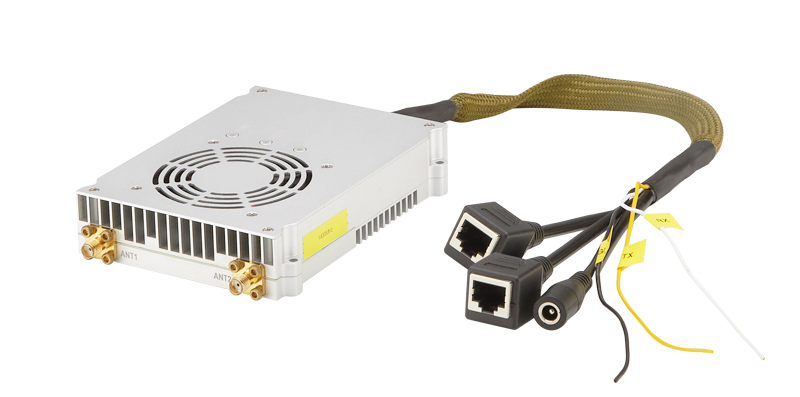

unmanned systems

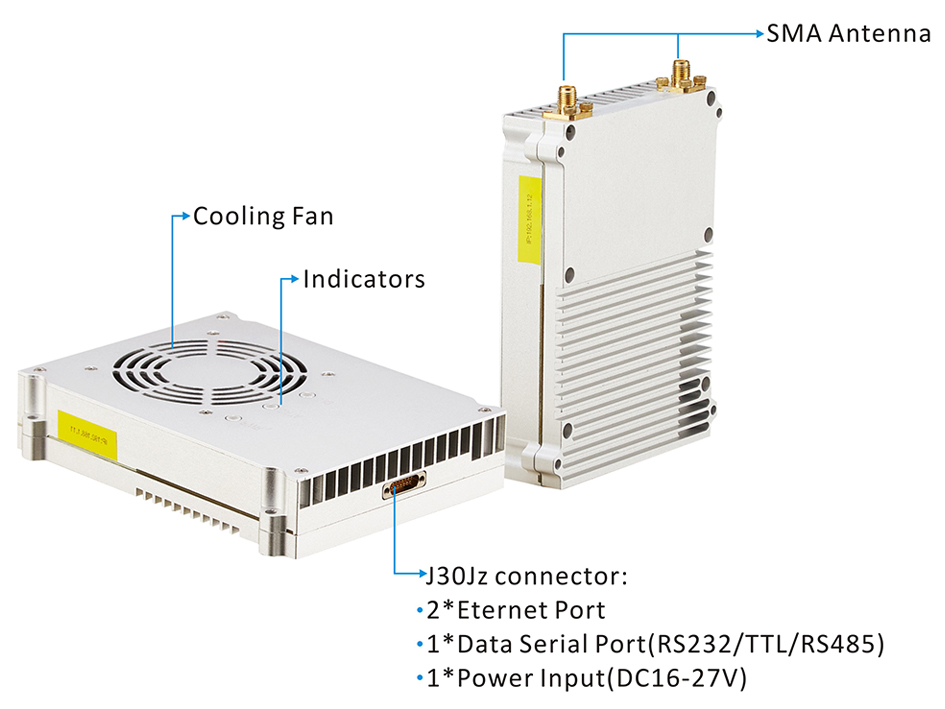

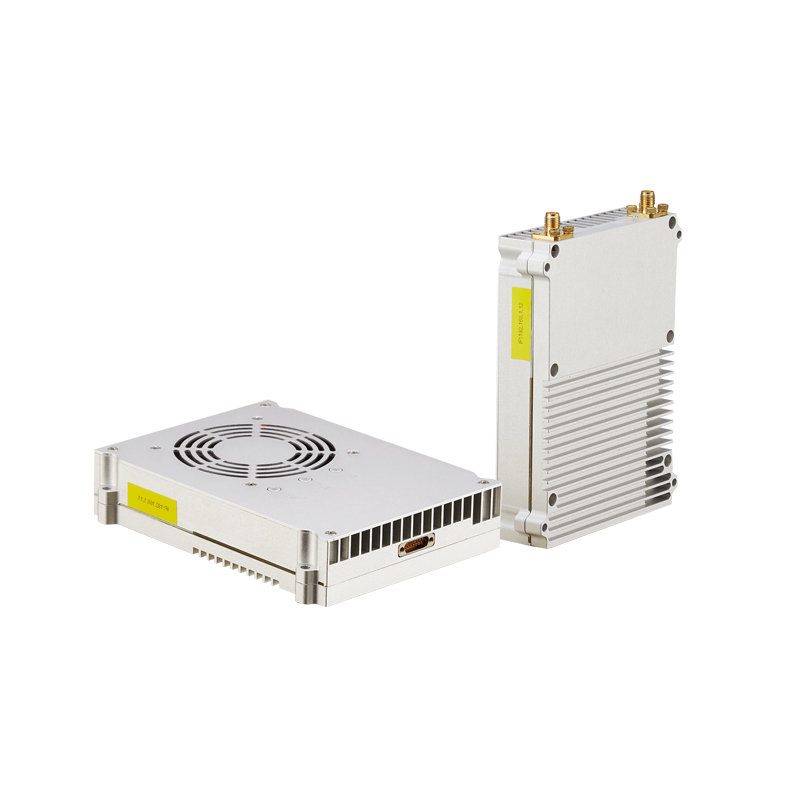

Various Ports

ptmp wireless
MECHANICAL
Working Temperture -20℃~+55℃
Dimension 12.7×9.4×1.8cm(Antenna Not Included)
Weight 281g
INTERFACES
RF 2 x SMA
ETHERNET 1xEthernet
COMUART 1xSerial Port Full duplex communication: RS232/TTL/RS485
POWER 1xDC INPUT DC16V-27V


Powering the Future of Robotics

In robotic missions, failure is not an option. Operators often can’t intervene, which means every wireless link must be relentlessly reliable.

The IWAVE radio is engineered for this reality. It delivers robust, consistent connectivity for non-line-of-sight (NLOS) tele-robotics, performing in the most demanding environments—from dense urban jungles to the most remote field locations.

Key Applications Include:

Public Safety & Disaster Response
Fire Rescue | Urban Search & Rescue | Police Operations | Pipeline Detection & Disposal

Defense & Security
Route Clearance | Combat Engineering | UGV/Robot Dog Swarm Operations | Manned/Unmanned Teaming

Critical Infrastructure
Power Plant Monitoring & Inspection

Equip your robots with the connection built to endure. Choose IWAVE.

Improved for:
 Clarity: Structured with clear headings and logical grouping.
Engagement: Stronger opening, active voice, and a confident call-to-action.
 Readability: Removed redundancy, used bullet groups, and added visual spacing.

  • Impact: Focused on the core benefit—dependability in impossible situations.



ugv


Specifications

General Wireless
Technology Star Network based on IWAVE proprietary time slot frame structure & waveform. Communication 1T1R1T2R2T2R
Video Transmission 1080p HD video transmission, H.264/H.265 adaptive IP Data Transmission Supports data transmission based on IP packets
Encryption ZUC/SNOW3G/AES(128) Optional Layer-2 Data Link Full duplex communication
Data Rate Max 100-120Mbps(Uplink and Downlink) Up And Down Ratio 2D3U/3D2U/4D1U/1D4U
Range 1-3km Ground to ground(NLOS) Automatic Reconstruction Chain Automatic link re-establishment after link failure/ re-deploy the network after a link failure
Capacity 64nodes Sensitivity
MIMO 2×2 MIMO 1.4GHZ 20MHZ -102dBm
POWER 2watts(DC12V)
5watts(DC27)		 10MHZ -100dBm
Latency Air interface delay 5MHZ -96dBm
Modulation QPSK, 16QAM, 64QAM 600MHZ 20MHZ -102dBm
Anti-jamming FHSS(Frequency Hop Spread Spectrum) and Adaptive Modulation 10MHZ -100dBm
Bandwidth 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz 5MHZ -96dBm
POWER CONSUMPTION 30Watts Frequency Band
POWER INPUT DC16-27V 1.4Ghz 1420Mhz-1530MHz
DIMENSION 12.7*9.4*1.8cm 600Mhz 566Mhz-678Mhz
