China Moneypro Tactical Body-Worn IP MESH Radio

Introducing the FD-6705BW: Your Lifeline When Connectivity Isn’t

The FD-6705BW is a rugged, body-worn broadband wireless MANET Mesh Transceiver built for one critical purpose: to create an instant, reliable network when infrastructure fails—and lives depend on staying connected.

Key Features Include:

  • Integrated support for PTT headsets, helmet cameras, Wi-Fi, 4G, and GPS
  • Standard IP and RS232 interfaces
  • Flexible camera connectivity via HDMI and IP interfaces
  • Extended communication coverage for video, data, and audio transmission

Built for Teams in Critical Situations
From public safety and emergency response to field operations and major event security, the FD-6705BW ensures your team stays linked—sharing real-time video, audio, and data so every member can see, hear, and coordinate seamlessly as missions unfold.

Ready when communication isn’t.
Equip your team with the FD-6705BW—and ensure no one is ever out of touch.

Category:
Description




Key Features

L-MESH Technology
Built on IWAVE’s proprietary MS-LINK technology, the FD-6705BW delivers resilient, high-bandwidth communication in demanding environments. Unlike conventional Wi-Fi or COFDM systems, MS-LINK combines LTE terminal standards with Mobile Ad Hoc Networking (MANET), creating a decentralized, mesh-based network that excels where other systems falter.

How It Works
Each FD-6705BW unit operates as an independent node within a self-forming, self-healing network. By leveraging core LTE protocols—including physical layer and air interface standards—along with a custom time-slot frame structure and adaptive waveform design, the system ensures robust connectivity without relying on a central hub.

Performance Advantages

  • High spectrum efficiency & extended coverage
  • Low latency with strong anti-interference and anti-multipath performance
  • Dynamic routing that continuously optimizes the transmission path
  • Rapid link recovery and network reorganization in dynamic conditions

Stay Connected, Informed, and in Control
With the FD-6705BW, your team can:

  • Maintain real-time voice communication
  • Share HD video to assess situations remotely
  • Track team positions via integrated GNSS
  • Exchange critical data seamlessly throughout the mission

Ideal For
Field operations, tactical teams, public safety, and industrial applications where reliable, decentralized communication is essential.

Let me know if you’d like this tailored for a brochure, datasheet, or web copy!



tactical-Body-Worn-IP-MESH-Radio
Ad-Hoc-Network-Communication



Seamless Cross-Platform Connectivity
The FD-6705BW integrates with all current IWAVE MESH models, enabling automatic connections between ground personnel, manned/unmanned vehicles, UAVs, maritime assets, and infrastructure nodes—creating a resilient, adaptable network.

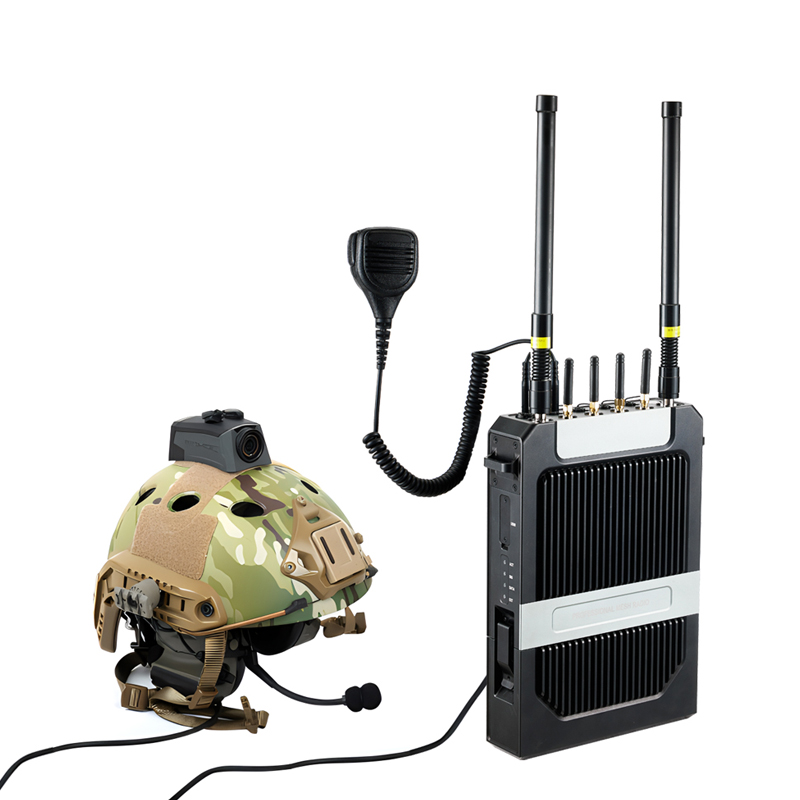

Real-Time Video Capability
Equipped with multiple camera interfaces—including HDMI and IP—the FD-6705BW supports live video feeds. Use the included IWAVE HDMI cable to connect directly to helmet cameras and stream footage in real time.

Instant Push-to-Talk Communication
Stay connected with your team using the simplified Push-to-Talk (PTT) feature. Share critical information instantly through clear, reliable voice communication.

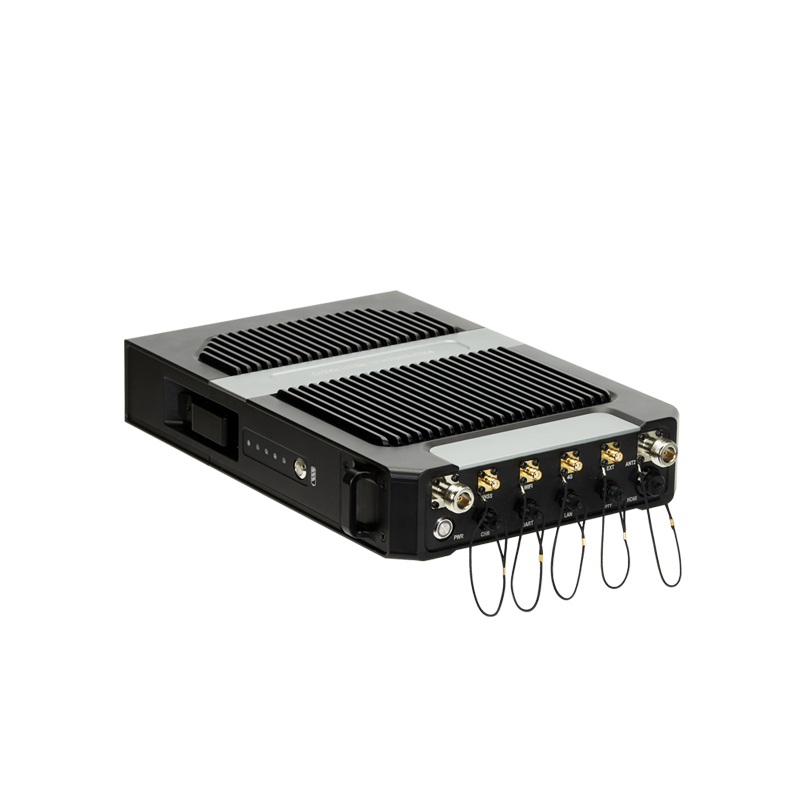

Rich Connectivity & Ports

  • PTT Port
  • HDMI Port
  • LAN Port
  • RS232 Port
  • 4G & Wi-Fi Antenna Connectors
  • GNSS Antenna Connector
  • Dual RF Antenna Connectors
  • User-Defined Connector
  • Power/Charge Port

Compact & Field-Ready Design

  • Dimensions: 312 × 198 × 53 mm (without antenna)
  • Weight: 3.8 kg (with battery)
  • Integrated robust carry handle
  • Mounts easily on backs or vehicles for rapid deployment

Durable & Rugged Construction

  • Magnesium-aluminum alloy casing
  • Precision craftsmanship
  • Built to resist corrosion, drops, and high temperatures

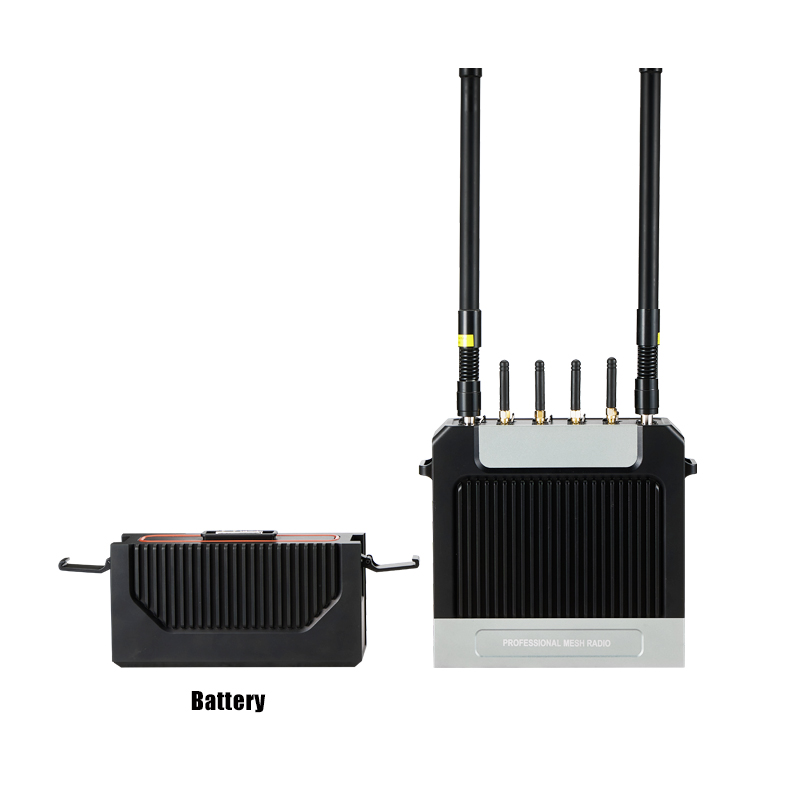

Flexible Power Options

  • 7000mAh battery: 8 hours continuous operation, buckle design, fast-charging
  • Vehicle power compatibility
  • Solar power ready

Clear User Feedback

  • Power level indicator
  • Network status indicator

Let me know if you’d like this tailored for a datasheet, brochure, or web copy.

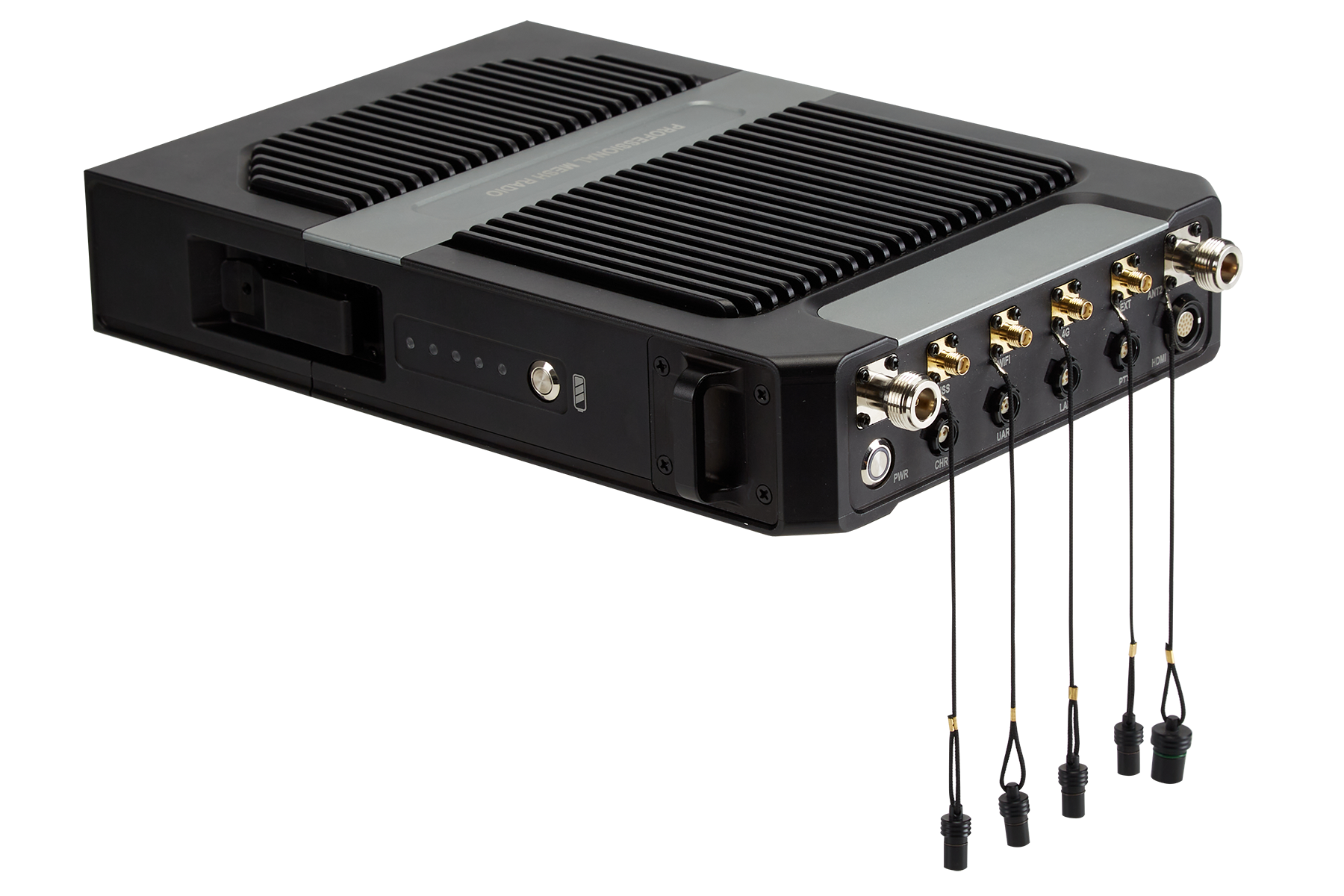

Bodyworn-IP-Mesh-Radio


Mission Commander

Mission-Commander

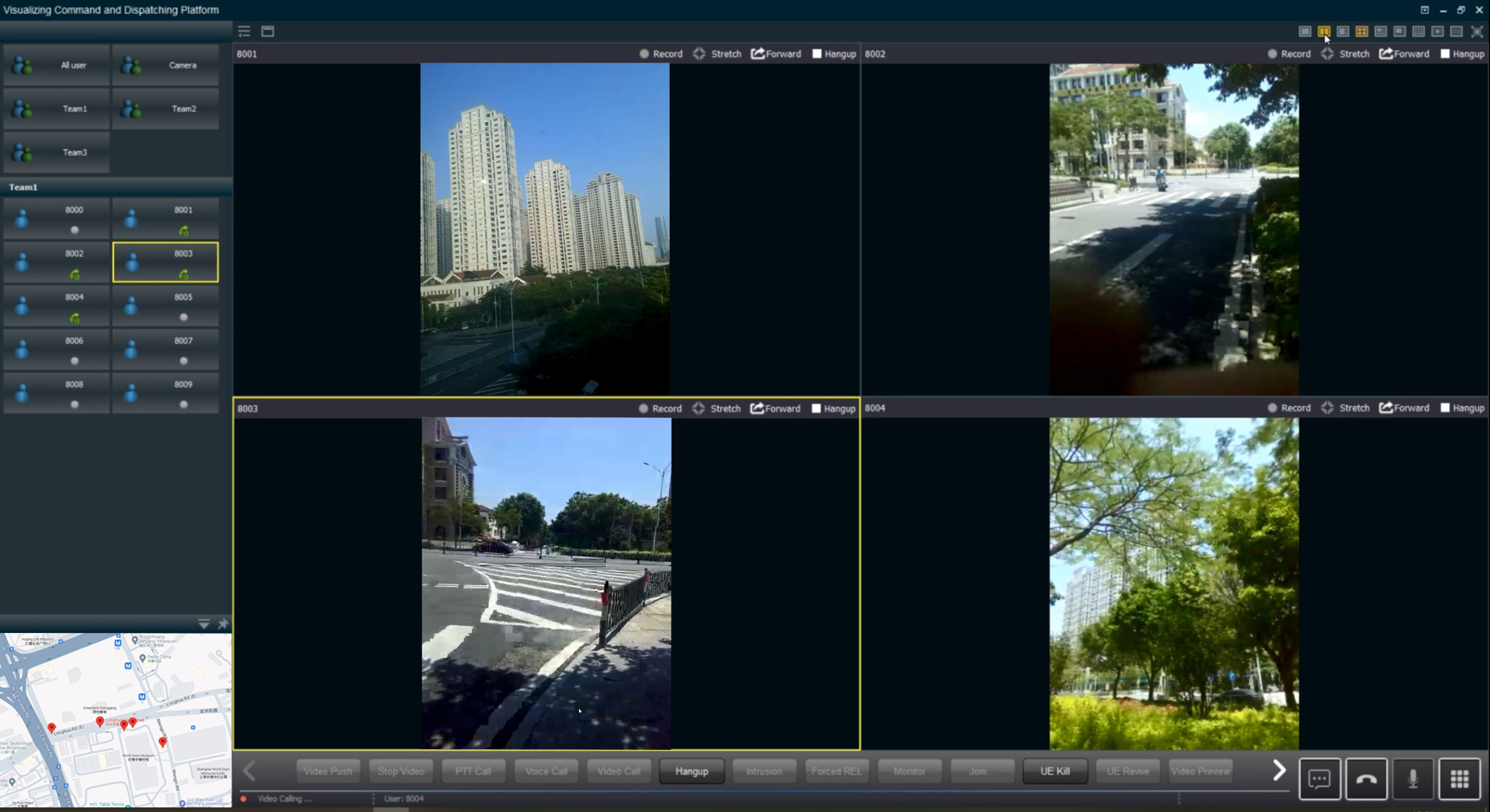

Mission Command Platform (CDP-100)

The CDP-100 is a powerful visual command and dispatching platform designed for IP MESH networks. Running seamlessly on desktop or tablet devices, it integrates:

  • Visual intercom technology
  • Real-time video transmission
  • GIS positioning capabilities

Through a single intuitive interface, the platform unifies voice, image, video, data, and live location tracking of every MESH node. This gives commanders a complete operational picture—delivering the critical insights needed to make fast, informed decisions in real time.

Specifications

General Mechanical
Technology MESH based on TD-LTE Technology Standard Temperature -20º to +55ºC
Encription ZUC/SNOW3G/AES(128)Layer-2 Encryption Color Black
Date Rate 30Mbps(uplink+downlink) Dimension 312*198*53mm
Sensitivity 10MHz/-103dBm Weight 3.8kg
Range 2km-10km(nlos ground to ground) Material Anodized Aluminum
Node 16nodes Mounting Bodyworn
Modulation QPSK, 16QAM, 64QAM Power Input DC18-36V
Anti-jamming Automatically frequency hopping Power Consumption 45W
RF Power 5Watts Protection Grade IP65
Latency 20-50ms Anti-Vibration Anti-vibration design for fast moving
Frequency Options Antenna
1.4Ghz 1420-1530MHz Tx 4dbi omni antenna
800Mhz 806-826 MHz Rx 6dbi omni antenna
Interfaces
UART 1 x RS232 LAN 1xRJ45
RF 2 x N Type Connector HDMI 1 x HDMI video port
GPS/Beidou 1 x SMA WIFI Antenna 1 x SMA
Indicator Battery level and network quality 4G Antenna 1 x SMA
PTT 1xPush To Talk Power Charge 1x Power input
