China Moneypro MIMO Broadband IP MESH Link With Outdoor Design For NLOS Video Transmitting

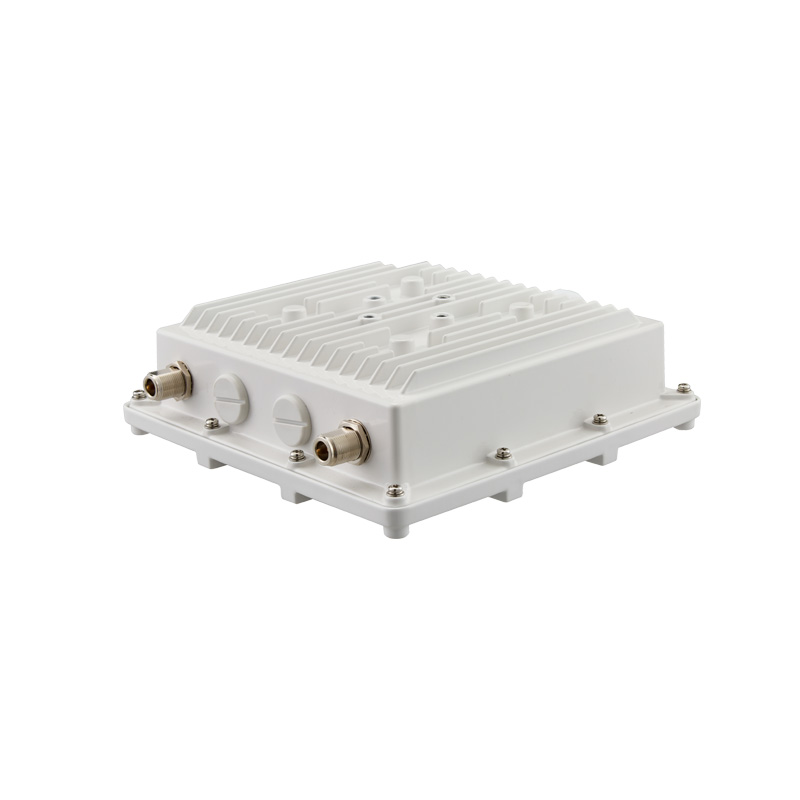

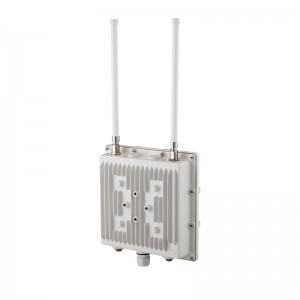

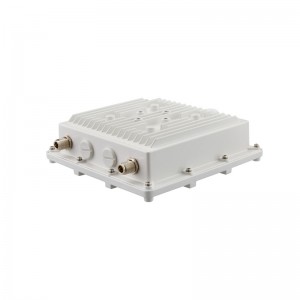

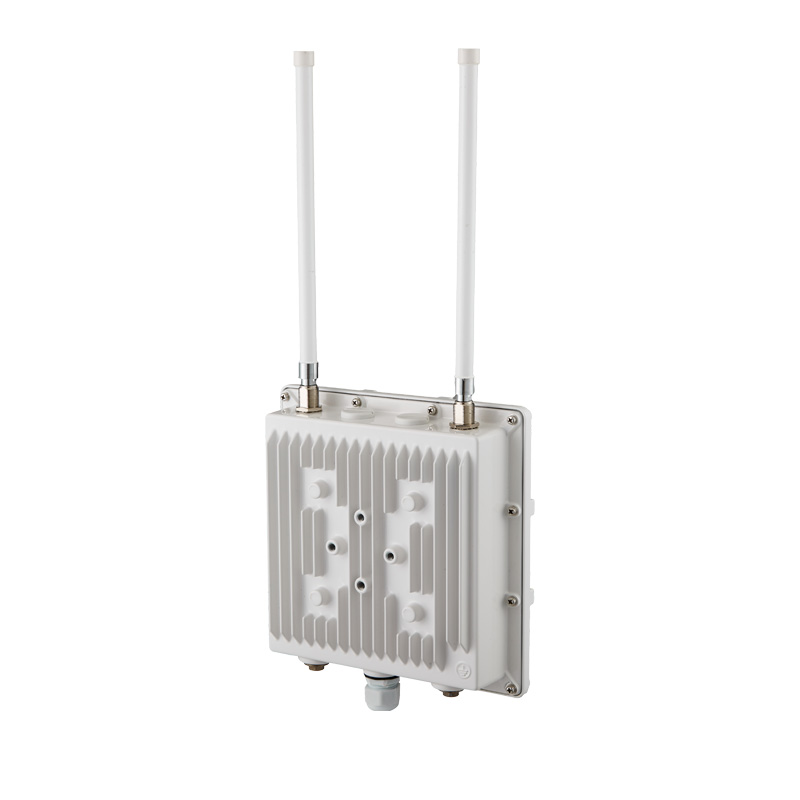

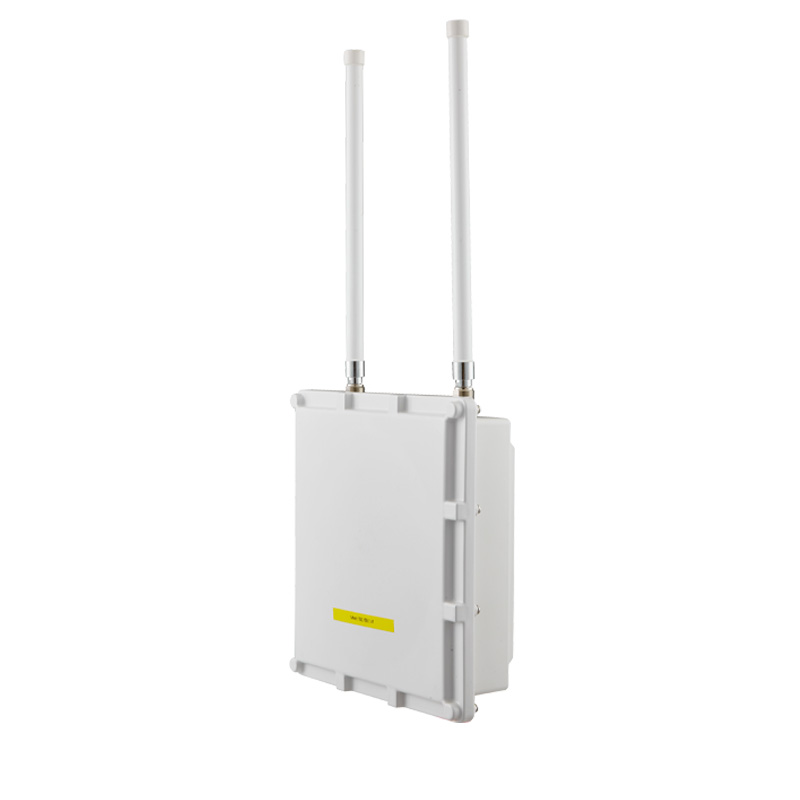

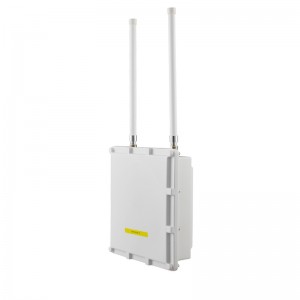

Introducing the FD-6710FT: The Resilient Outdoor Wireless IP Mesh Link

Built for demanding environments, the FD-6710FT is an IP66-rated outdoor fixed wireless IP mesh link designed to create robust, decentralized communication networks. It establishes a self-forming, self-adapting, and self-healing mesh network that dynamically routes data—ensuring reliable connectivity even in challenging conditions.

Key Features & Benefits:

  • Dynamic Multi-Hop Relay: Enables seamless HD video, multi-channel data, and broadband Ethernet connections across network nodes, even in non-line-of-sight scenarios.
  • Built for Tough Environments: Excels in complex settings such as dense forests, fast-moving applications, and obstructed terrains where traditional wireless links falter.
  • High-Speed Performance: Leverages smart antenna MIMO technology and an efficient AD-HOC/MESH architecture to deliver real-time HD video with transmission rates up to 30Mbps.
  • Autonomous & Resilient: Forms intelligent, self-healing networks that adapt on the fly—ideal for critical private networks requiring uninterrupted communication.

Ideal for secure, mission-critical private networks, the FD-6710FT ensures strong, adaptive, and high-bandwidth wireless communication where it matters most.



Category:
Description




Key Features

  • Flexible Bandwidth Options: Choose from 1.4MHz, 3MHz, 5MHz, 10MHz, or 20MHz to match your needs.
  • Dual Frequency Support: Operates on 800MHz or 1.4GHz bands for versatile deployment.
  • Carrier-Independent: Does not rely on any cellular carrier’s infrastructure.
  • Anti-Interference: Uses automatic frequency hopping to maintain a clear, stable connection.
  • Self-Organizing Mesh Network: Self-forming and self-healing architecture ensures reliable, resilient communication.
  • Low Latency: End-to-end latency as low as 30–50ms for real-time responsiveness.
  • Web-Based Management: Intuitive WEBUI for easy network management and parameter configuration.
  • Long-Range Capability: Line-of-sight range of 10–30km ground-to-ground.
  • Automatic Optimization: Features automatic power control and frequency point adjustment for peak performance.
  • High-Definition Video Ready: Supports UDP/TCPIP for full HD video transmission.

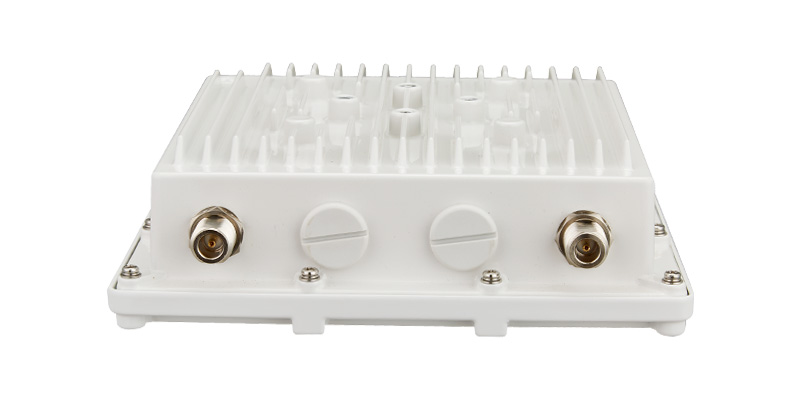

MESH outdoor FD6710T-5

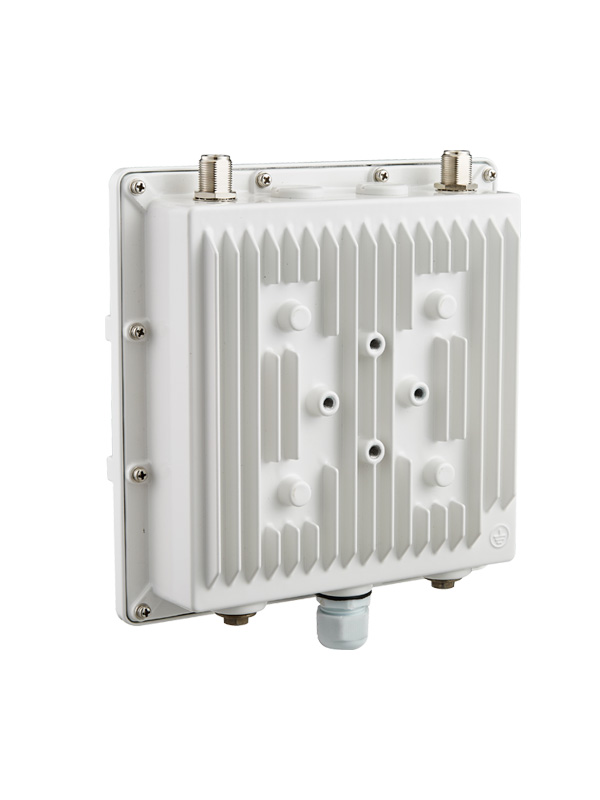

MESH outdoor FD6710T-6



Automatic Frequency Point Control
Upon startup, the device first attempts to connect using the last-used frequency points saved before shutdown. If those frequencies are unavailable or unstable, it will automatically scan and switch to the best available frequency for reliable network deployment.

Automatic Power Control
Each node intelligently adjusts its transmission power based on real-time signal quality, ensuring optimal performance and minimal interference.

Frequency-Hopping Spread Spectrum (FHSS)
IWAVE’s proprietary FHSS algorithm continuously monitors link quality—using metrics like RSRP, SNR, and bit error rate—to determine if a frequency hop is needed. If conditions require it, the system seamlessly switches to the best available frequency. Frequency hopping only occurs when necessary; stable links remain undisturbed to maintain consistent performance.

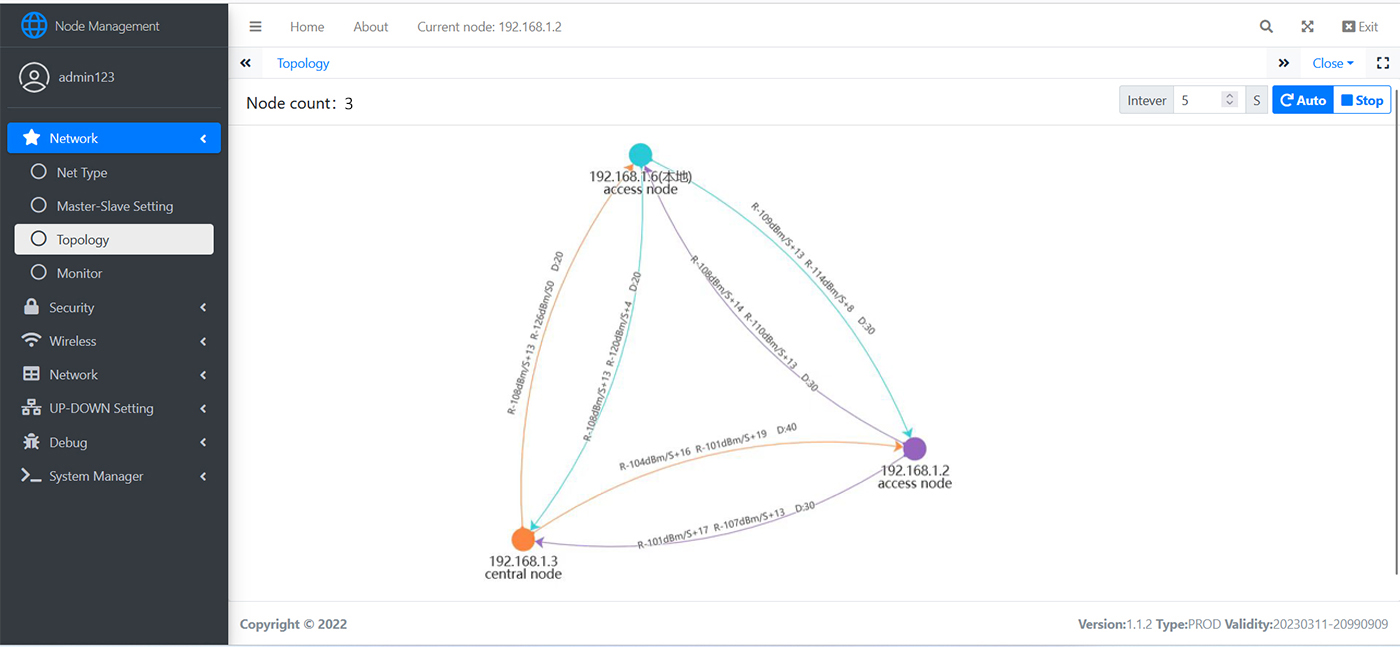

MESH Network Management Software
Take full control with IWAVE’s self-developed, web-based management platform. Accessible anytime from any browser, the software provides a real-time overview of your entire network—including topology, signal strength (RSRP/SNR), distance between nodes, IP addresses, and more.
Easily configure settings such as:

  • Working frequency & bandwidth
  • IP addressing & dynamic topology
  • Real-time distance monitoring
  • Algorithm settings & frame configuration
  • AT commands and other advanced options

Monitor, manage, and optimize your mesh network—all through an intuitive, centralized interface.



MESH-Management-Software2




Enhanced Version:

The FD-6710FT is engineered for versatile outdoor deployment, serving as both a mobile and fixed-site communication system. It is designed to perform reliably across terrestrial, airborne, and maritime environments.

Ideal applications include:

  • Border surveillance and security operations
  • Mining and remote resource extraction sites
  • Offshore oil and gas communications
  • Urban backup and emergency communication networks
  • Private and secure microwave networks

Why this version works better:

  • Clearer structure – Separates the description from the use cases
  • Active voice – “Engineered for” and “designed to perform” sound more confident and engaging
  • Bulleted list – Improves readability and scannability
  • Stronger verbs – “Engineered,” “serving,” “perform reliably” add impact
  • Removes redundancy – Combines “mobile and fixed site” into a smoother phrase
  • Professional yet accessible – Maintains technical accuracy while being easy to read

This rewrite keeps all original information but presents it in a more organized and compelling way, making it suitable for datasheets, proposals, or product descriptions.

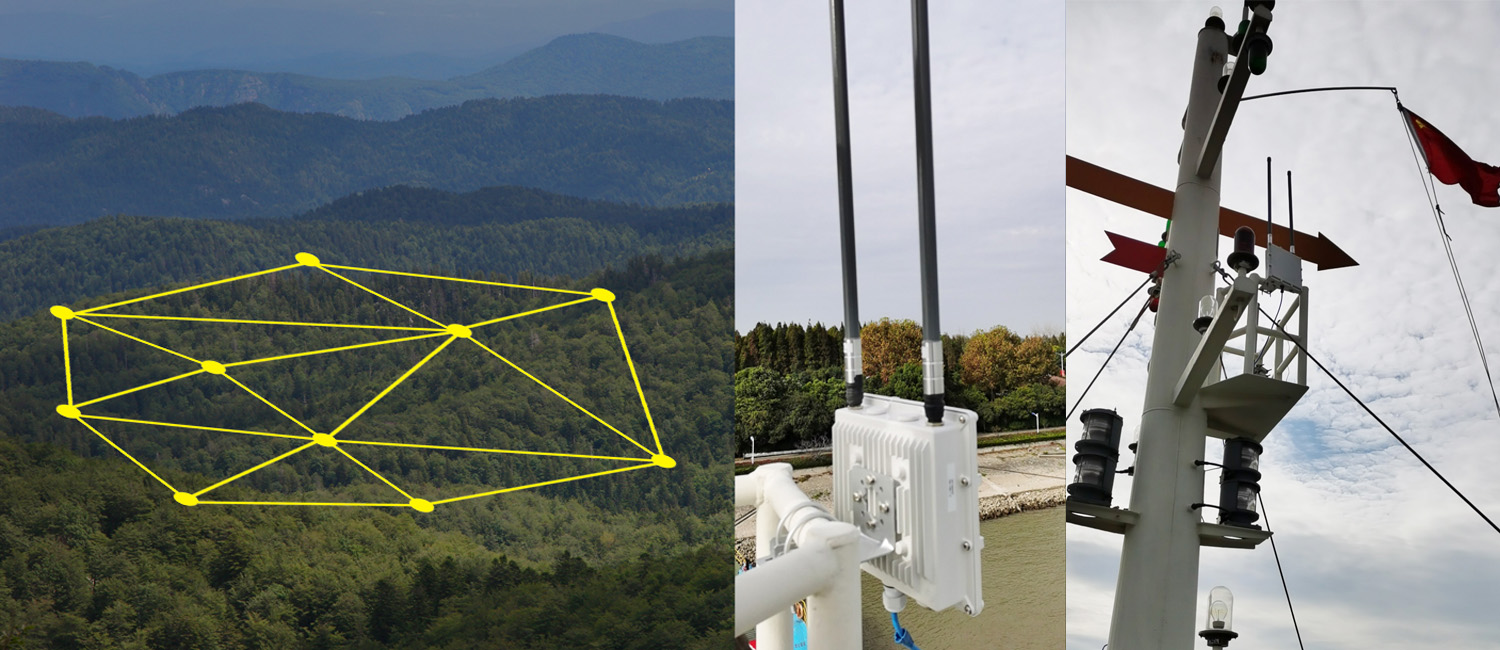

MESH outdoor FD6710T-7


Specification

Frequency Options 800Mhz(806-826Mhz)/1.4G(1420-1530Mhz) Serial Data Transmission Supports mutual conversion between serial port data and IP data

Supports various serial communication protocols such as Modbus, MQTT, HTTP, etc.
Working Mode IP MESH Start Time ≤60s
Modulation QPSK/16QAM/64QAM/AES128 Networking Time ≤90s
Transmitting Power 10Watts(adjustable) Power Input DC28V Or AC220V
Receive Sensitivity -103dBm@10MHz Power Consumption 35W
Bandwidth 3MHz/5MHz/10MHz/20MHz Indicator Power, Network quality
Anti-jamming Dynamic frequency hopping Antenna 5dbi omni antenna
Latency Air interface delay Interface Power Input Aviation Connector*1
Encryption ZUC, SNOW3G, AES128 LAN Aviation Connector*2
Data Rate 30Mbps(Uplink+downlink time slots can be configured) RF N Type Connector*2
Networking IP MESH Weight 3kg(Antenna Not Included)
Distance 20km-30km(LOS)3-10KM(NLOS) Dimension 216*216*70mm(Antenna Not Included)
Capacity 32Nodes Working Temperature -20ºC~55ºC
IP Data transmission Supports data transmission based on IP packets Storage Temperature -40ºC~65ºC
Video Transmission 1080p HD video transmission, H.264/H.265 adaptive IP Grade IP67
