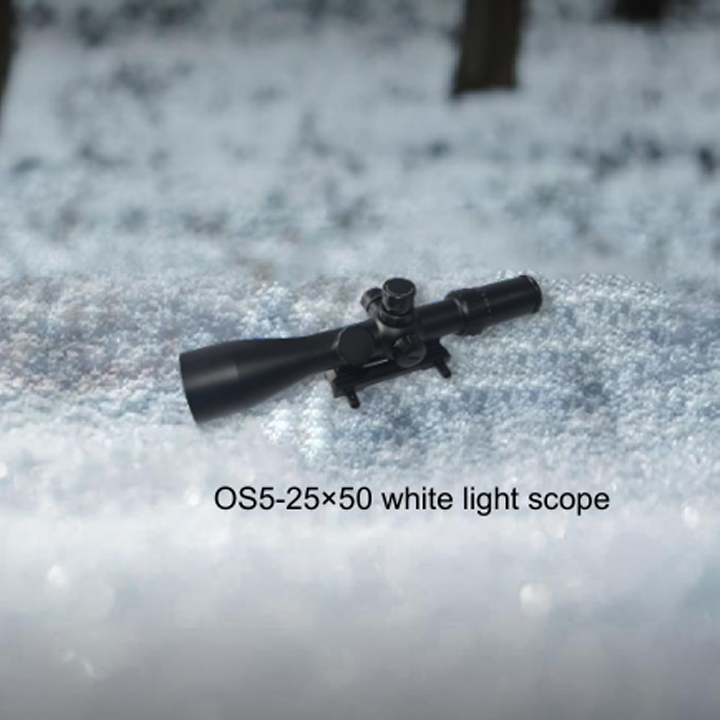

High Power Variable Optic

It is a Keplerian telescope system with a delineated sight line, which has the functions of focusing (distance parallax compensation), ballistic correction, brightness adjustment of delineated illumination, magnification adjustment and visual adjustment. It can meet the needs of people with different eyesight in different environments to accurately aim at targets within 800 meters, thus realizing accurate shooting.

Categories: ,
Description

High Power Variable Optic Features

It is suitable for high-precision sniper rifles, single-shot hunting rifles
It supports professional level customization

High Power Variable Optic Parameters

Specification Parameters
Weight (with connector) 1250g
Magnification 5 ～ 25x
Obj Dia 50mm
FOV 4°~0.8°
EP Dia 10~2mm
Eye Relief ≥80mm
Diopter -3~+2.5SD
WIndage adjustment range ≥8mil
UP direction adjustment range ≥12mil
DOWN direction adjustment range ≥4mil
Bracket One-piece Picatinny rails

High Power Variable Optic

Related products

China Moneypro ASIV 6199 ADS SERIES IN-VEHICLE ASSISTED DRIVING SYSTEMS

The main purpose and function of the ADS series vehicle-mounted assisted driving system is to provide drivers with near-infrared image imaging, thermal imaging, and other auxiliary functions in all-weather environments, enabling the safe and rapid driving of ground vehicles of current air defense and anti-missile equipment in all-weather conditions. The driver can clearly observe the road conditions and surrounding conditions in front of and behind the vehicle, identify transverse ditches on the road surface, ditches beside the road, puddles, soil pits, and undulating terrain, and detect people and equipment around the vehicle.

TF02 Infrared Fusion Telescope

The TF02 is an HD fusion binocular telescope with four optical channels catering to full-time observation day and night, rangefinding, and geo-location. The product is lightweight and portable, providing users with unprecedented situational awareness.LightWeight, the product has a battery life of up to 8 hours.

FNV14/18Fused Night Vision Binocular

FNV14/18 can realize infrared and microlight imaging. By coupling the microlight night vision image and infrared thermal imaging image, the user is able to observe the microlight and infrared imaging image through the eyepiece at the same time, maximizing the combination of the advantages of the two systems, enhancing the microlight night vision goggles to observe the use of the effect of the detection and observation of the target to get a great deal of improvement in the ability to detect and observe. The product is suitable for night operation observation, can carry out close equipment operation, reading, maintenance, but also for night terrain, features, light vehicles and other distant targets to implement observation.

M2000 Eye-Safe Laser Rangefinder Module

This module, which is based on a 905nm semiconductor laser, is specifically made for systems that have stringent weight and size constraints. We focus on developing multi-pulse rangefinding algorithms using reliable and well-established semiconductor lasers, as well as specially made reception detectors and a high-performance optical system. This has made it possible to develop a cutting-edge, market-leading tiny laser rangefinder module that may be used in a wide range of industries.

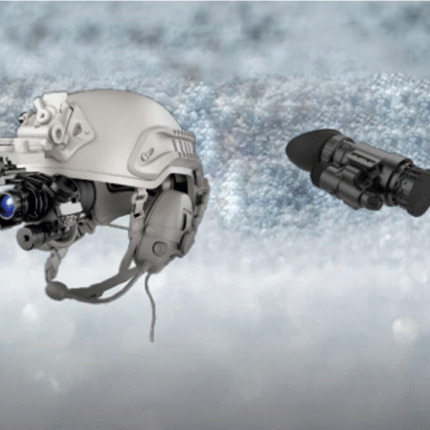

NV14 Night Vision Monocular
