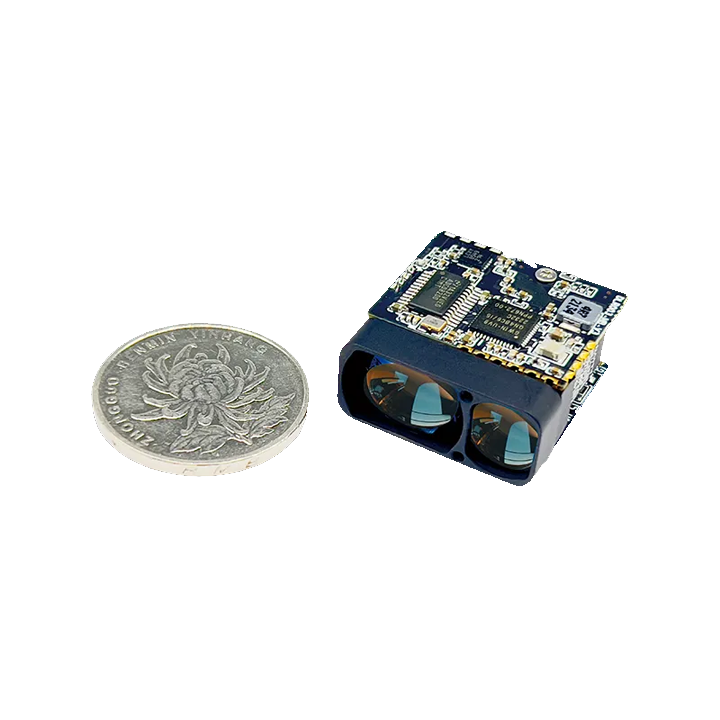

M1200 Eye-Safe Laser Rangefinder Module

This module, which is based on a 905nm semiconductor laser, is specifically made for systems that have stringent weight and size constraints.
We focus on developing multi-pulse rangefinding algorithms using reliable and well-established semiconductor lasers, as well as specially made reception detectors and a high-performance optical system.
This has made it possible to develop a cutting-edge, market-leading tiny laser rangefinder module that may be used in a wide range of industries.

Categories: , ,
Description

Features

Ultra-High Performance for the Best System Performance

uses a self-developed multi-pulse technology that delivers a 1,200-meter measuring range in a small form factor, ensuring optimal system performance.

Exceptionally Small Size for Better System Integration

The M1200 laser rangefinder module is the smallest of its kind, measuring only 25×26×13 mm.
With a weight of just 10g, the module requires very little weight or space when incorporated into systems.

Simpler Integration of Systems

supports universal serial port communication protocols and makes use of a standard UART interface.
offers a set of instructions for data transmission and reception, enabling smooth communication with the primary control and guaranteeing simple system integration.



Specification

Basic Features
Laser Wavelength 905±5 nm
Eye-safe Level Class 1 (IEC 60825-1)
Laser Divergence Angle ~1×6mrad
Rangefinding Performance (for buildings) 5~1200m
Measuring Accuracy ±1m
Measuring Frequency 5~45m, 3Hz; >45m, 0.75~3Hz
Emitting Aperture Φ10×7.5mm
Receiver Aperture Φ15×10mm
Detection Probability ≥98%
False Alarm Rate ≤1%
Electrical Characteristics
Communication Interface UART (TTL_3.3V)
Baud Rate 9,600/14,400/19,200/38,400/57,600/115,200 (default)/128,000/230,400
Power Supply Mode DC3-5V
Maximum Power Consumption 0.9W
Standby Power Consumption ≤1mw (Power ON < 0.3V)
Physical Characteristics
Weight 10±0.5g
Dimensions <25×26×13mm
Shock Resistance 1,200g, 1ms
Vibration Level 5~50~5Hz, 1 octave/min, 2.5g
Environment Adaptability
Operating Temperature -40℃~+60℃
Storage Temperature -40℃-+60℃



Application Scenarios

  • Multi-spectral Telescope
  • Scope
  • UAV Airborne
  • Handheld Laser Rangefinder
