Low Power Variable Optic

Holographic Sight

It has the advantages of large field of view, light weight, adjustable division brightness, waterproof and shockproof, etc. It is recommended to be used in close range combat.

Categories: ,
Description

Holographic Sight Features

It is for submachine guns, automatic rifles, shotguns, machine guns

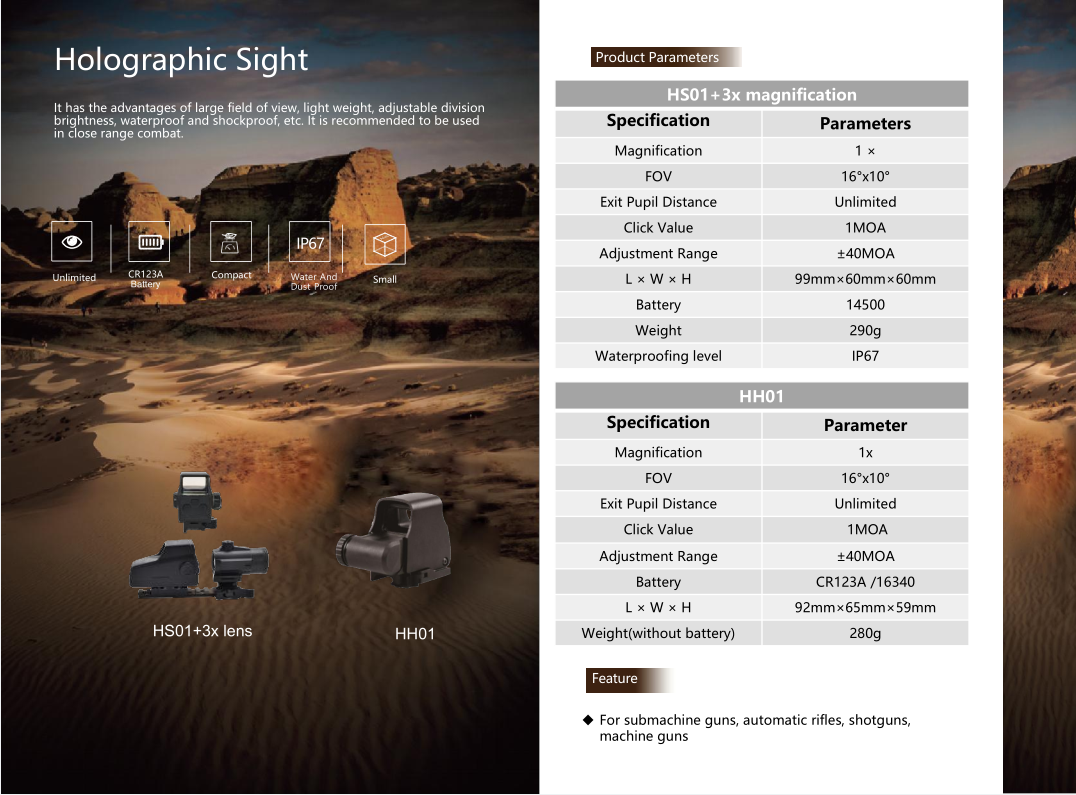

Holographic Sight Parameters

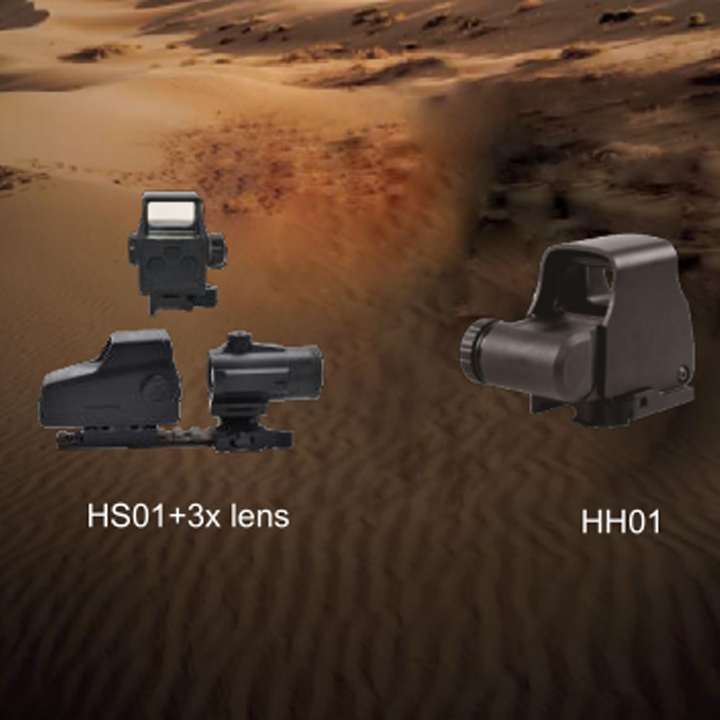

HS01+3x magnification
Specification Parameters
Magnification 1x
FOV 16°x10
Exit Pupil Distance Unlimited
Click Value 1MOA
Adjustment Range ±40MOA
LxW x H 99mmx60mmx60mm
Battery 14500
Weight 290g
Waterproofing level IP67
HH01
Specification Parameter
Magnification 1x
FOv 16°x10
Exit Pupil Distance Unlimited
Click Value 1MOA
Adjustment Range ±40MOA
Battery CR123A /16340
LxW xH 92mmx65mmx59mm
Weight(without battery) 280g

Holographic Sight
