Holographic Sight

Red Dot

The red dot has the advantages of adjustable red dot brightness, unlimited, both eyes open aiming design, small size and light weight, waterproof and shockproof, etc. It is recommended for short distance combat.

Categories: ,
Description

Red Dot Features

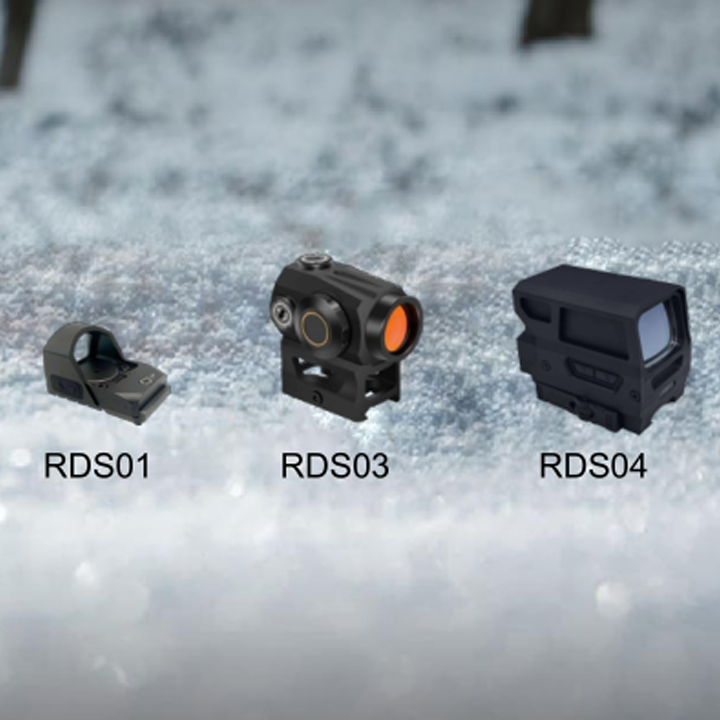

RDS01 for pistols and submachine guns;
RDS03, RDS04 for submachine guns, automatic rifles, shotguns, single shot shotguns, machine guns.

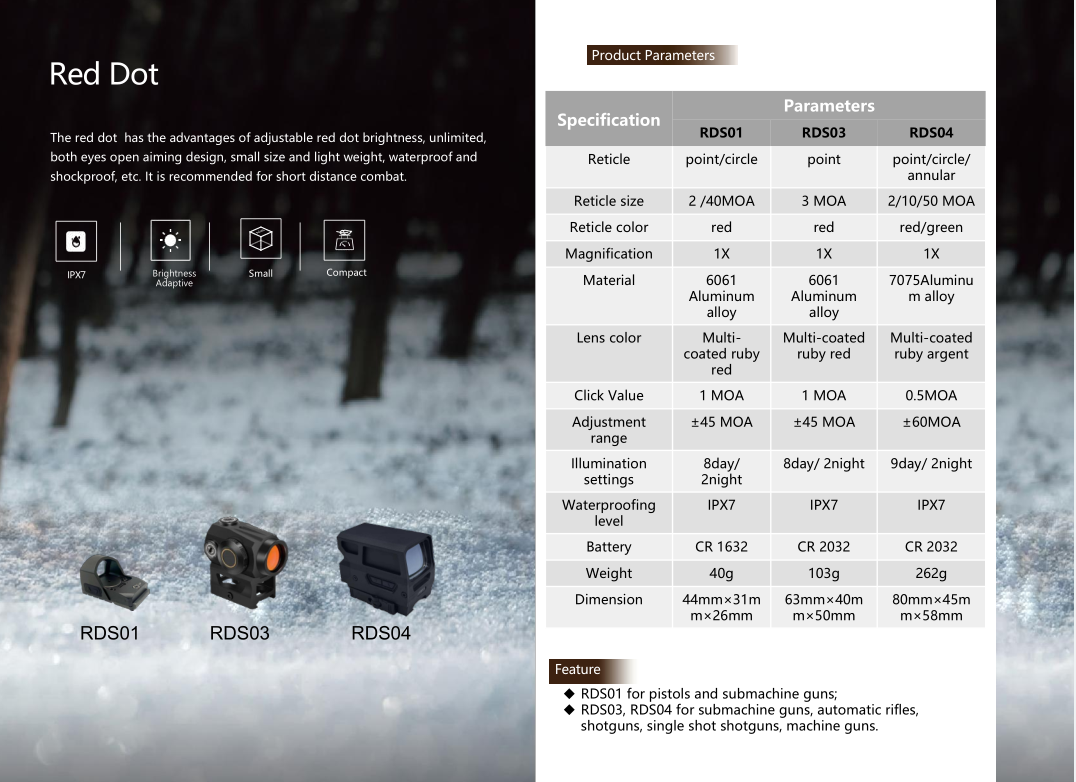

Red Dot Parameters

Specification Parameters
RDS01 RDS03 RDS03
Reticle point/circle point point/circle/annular
Reticle size 2 /40MOA 3 MOA 2/10/50 MOA
Reticle color red red red/green
Magnification 1X 1X 1X
Material 6061 Aluminum alloy 6061Aluminum alloy 7075Aluminum alloy
Lens color Multi-coated ruby red Multi-coated ruby red Multi-coated ruby argent
Click Value 1 MOA 1 MOA 0.5 MOA
Adjustment range ±45 MOA ±45 MOA ±45 MOA
Illumination settings 8day/2night 8day/2night 9day/2night
Waterproofing level IPX7 IPX7 IPX7
Battery CR 1632 CR 2032 CR 2032
Weight 40g 103g 262g
Dimension 44mmx31mmx26mm 63mmx49mmx50mm 80mmx45mmx58mm
