🚨 Industry Pain Points
In modern navigation, control, and motion sensing applications, users commonly face the following challenges:
- Measurement drift caused by temperature variations
- Accuracy degradation under dynamic vibration environments
- Installation misalignment affecting system precision
- Nonlinear sensor errors in complex motion conditions
- Lack of stable output in harsh industrial or outdoor environments
- Insufficient reliability of low-end MEMS sensors
These issues often lead to reduced system accuracy, unstable control performance, and unreliable navigation data.
⚙ Product Advantages
This IMU system is designed to overcome these limitations through advanced engineering:
- ✔ High-precision MEMS gyroscope and accelerometer integration
- ✔ Built-in temperature sensor for full temperature compensation
- ✔ Installation misalignment angle compensation for improved accuracy
- ✔ Nonlinear error correction algorithm for enhanced signal stability
- ✔ Robust signal processing circuit for clean and stable output
- ✔ Structural optimization for vibration resistance and durability
- ✔ Embedded software for real-time data correction and filtering
- ✔ Reliable performance in static, dynamic, and harsh environments
📡 Product Applications
This IMU is widely used in high-precision industrial and navigation systems, including:
- UAV flight control systems
- Fixed-wing and VTOL aircraft navigation
- Autonomous driving and robotics
- Marine and ship navigation systems
- Industrial motion control systems
- Surveying, mapping, and geospatial positioning equipment
- Stabilization platforms and gimbal systems
⭐ Why Choose Us
- Advanced multi-layer error compensation algorithms
- High reliability in extreme environmental conditions
- Industrial-grade MEMS sensor integration
- Stable long-term performance with low drift characteristics
- Designed for professional-grade navigation and control systems
- Strong adaptability for complex motion and vibration scenarios
We focus on delivering accurate, stable, and long-life inertial sensing solutions for mission-critical applications.
❓ Frequently Asked Questions (FAQ)
Q1: Does the IMU support temperature compensation?
Yes, it includes full-temperature compensation for stable performance across varying environments.
Q2: Can it reduce installation errors?
Yes, it supports installation misalignment angle compensation to improve accuracy.
Q3: Is it suitable for dynamic environments?
Yes, it is designed for both static and high-dynamic motion conditions.
Q4: Does it provide real-time corrected data?
Yes, embedded software performs real-time filtering and error compensation.
Q5: Can it be used in UAV systems?
Yes, it is widely used in UAV flight control and navigation systems.
| Parameter | unit | fundamental form | |
| gyroscope | Measurement range (customizable) | ° /s | ±300 |
| Zero-level offset | ° /h | 2 | |
| Zero-pitch instability (@ALLAN variance) | ° /h | 0.05 | |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | ° /h | 1 | |
| Zero bias repeatability | ° /h | 1 | |
| Zero bias error across the entire temperature range | ° /h | 1 | |
| random walk | ° / √ h | 0.051 | |
| Zero-zero acceleration sensitivity | ° /h/g | 1 | |
| resolution ratio | ° /s | 0.01 | |
| Output noise (half-maximum) | ° /s | 0.1 | |
| tape width | Hz | 100 | |
| Nonlinear scaling factor | ppm | 200 | |
| Scale factor repeatability | ppm | 200 | |
| cross coupling | % | 0.2 | |
| Parameter | unit | I mould | |
| accelerometer | Measurement range (customizable) | g | ±30 |
| Zero-pitch instability (@ALLAN variance) | mg | 0.002 | |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | mg | 0.05 | |
| Zero bias repeatability | mg | 0.1 | |
| Zero bias error across the entire temperature range | mg | 1 | |
| random walk | m/s/ √ h | 0.009 | |
| resolution ratio | mg | 0.05 | |
| tape width | Hz | 100 | |
| Scale factor repeatability | ppm | 100 | |
| cross coupling | % | 0.1 | |
| Parameter | unit | fundamental form | |
|
other |
Stabilization start time | s | 2 |
| Data update rate | Hz | 1000 | |
| voltage | V | 5±0.25 | |
| steady state power consumption | W | ≤ 2 | |
| ripple wave | mV | 100 | |
| working temperature | ℃ | -40~60 | |
| storage temperature | ℃ | -55~105 | |
| weight | g | ≤ 60 | |

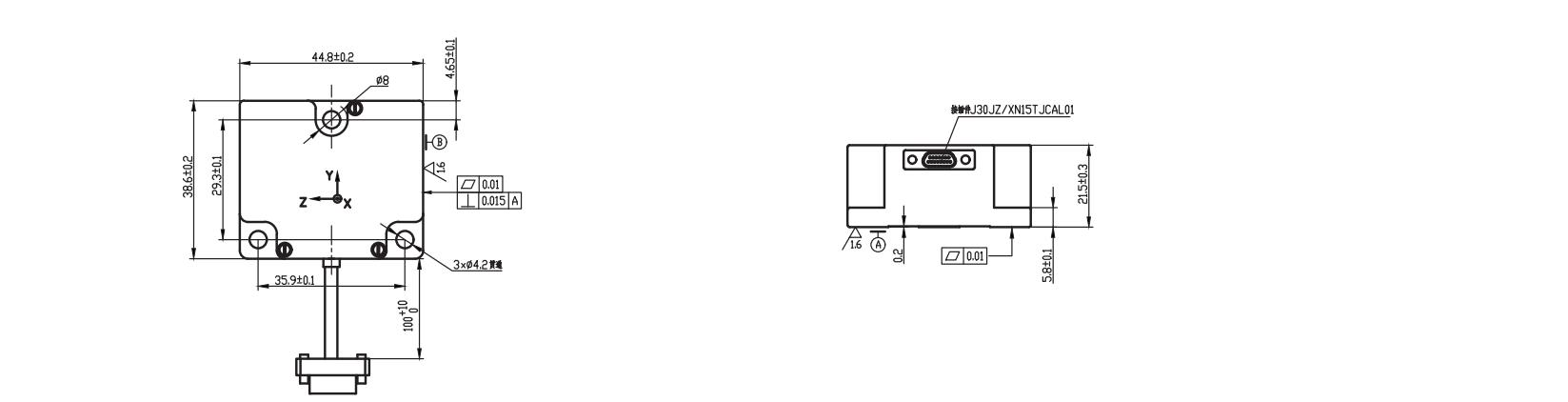

| size | mm | 44.8*38.6*21.5 | |
| Interface | —— | RS-422 | |
