🚨 Industry Pain Points
In precision motion measurement and inertial navigation applications, traditional gyroscope systems often face critical limitations:
- Performance drift under wide temperature variations
- Installation alignment errors affecting measurement accuracy
- Nonlinear sensor response under dynamic motion conditions
- Poor stability in harsh vibration or environmental conditions
- Inconsistent data output due to lack of real-time compensation
- Limited reliability in long-duration autonomous operation
These challenges significantly reduce system accuracy and operational reliability in aerospace, UAV, robotics, and industrial control systems.
⚙ Product Advantages

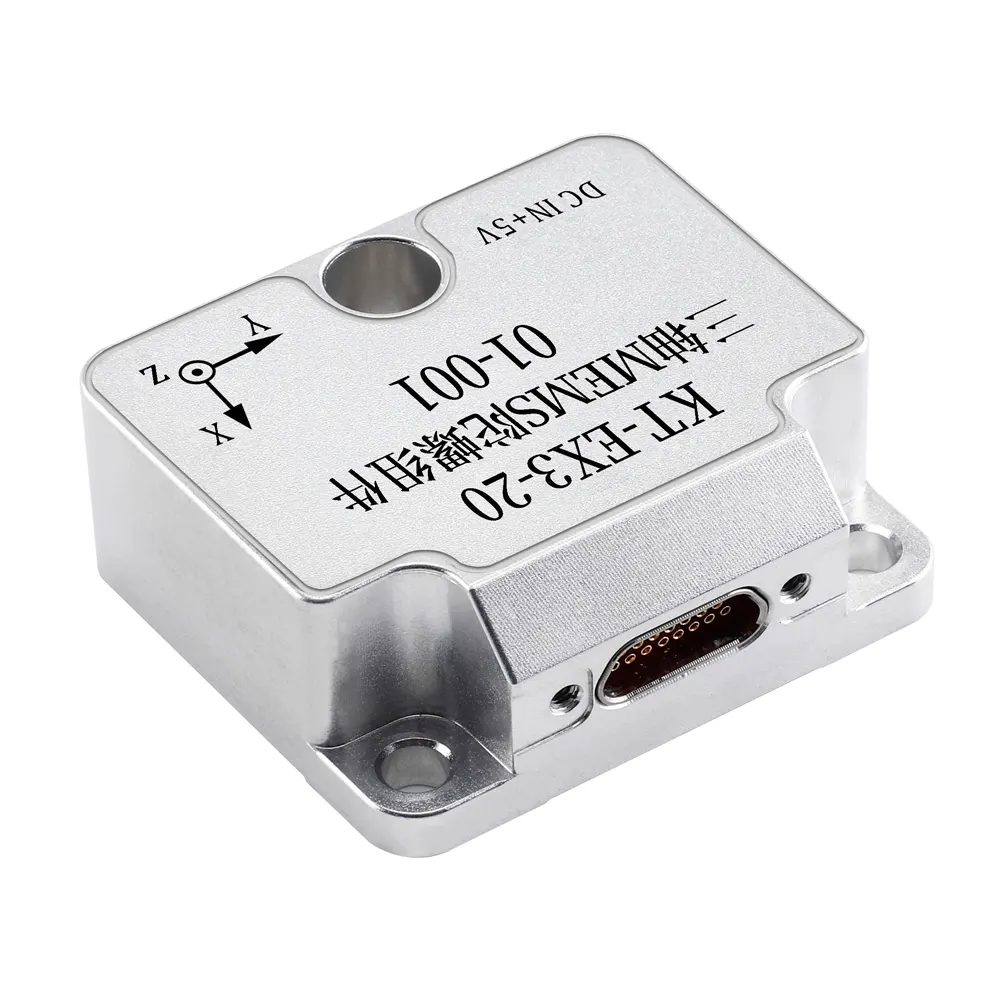

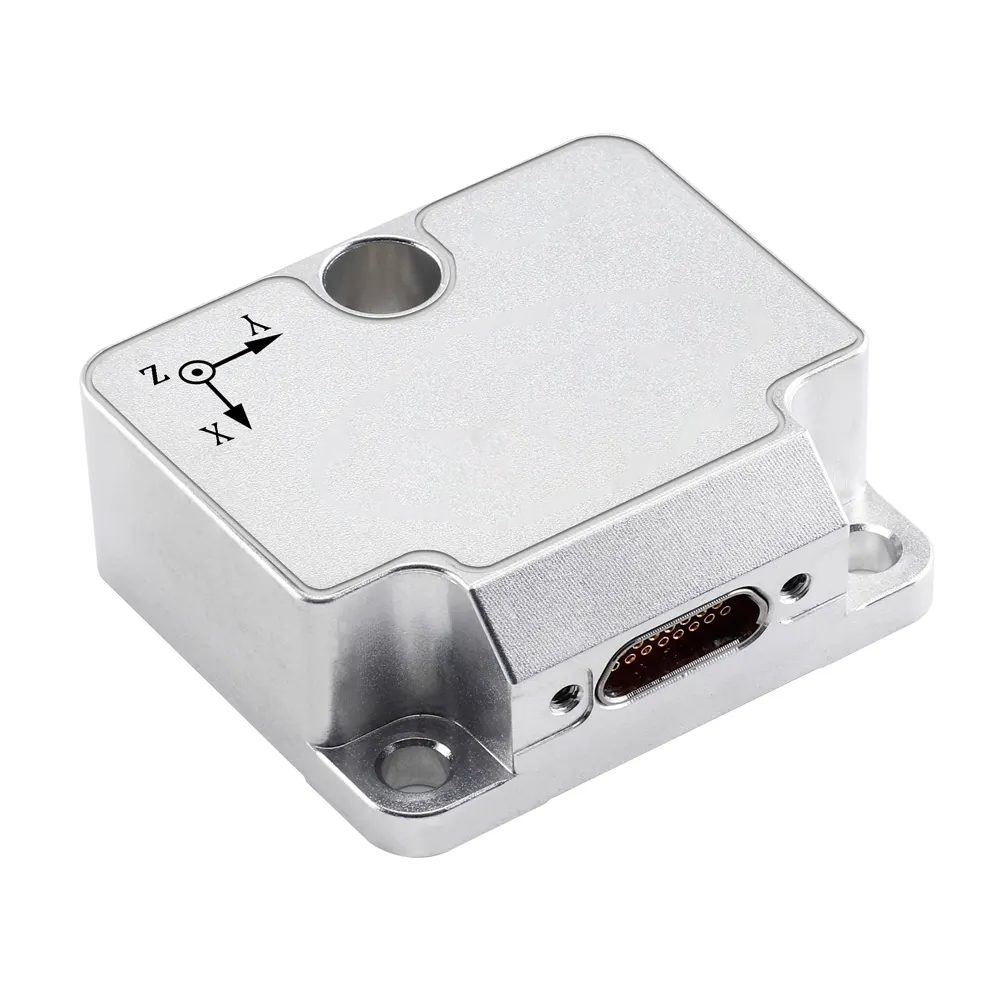

This MEMS gyroscope system is designed to overcome these limitations through advanced sensing and compensation technologies:
- ✔ Integrated MEMS gyro chip with high precision angular rate sensing
- ✔ Built-in temperature sensors for full temperature range compensation
- ✔ Digital signal processing (DSP) for real-time data correction
- ✔ Installation misalignment angle compensation algorithm
- ✔ Nonlinear error compensation for improved measurement linearity
- ✔ Stable performance in static, dynamic, and harsh environments
- ✔ High-speed RS-422 serial output for reliable industrial communication
- ✔ Fully compensated angular velocity data output for downstream systems
🚁 Product Applications
This high-performance gyroscope is widely used in advanced industrial and navigation systems, including:
- UAV flight control and inertial navigation systems
- Aerospace attitude and orientation measurement
- Robotics motion sensing and stabilization systems
- Industrial automation and precision control equipment
- Marine and vehicle navigation systems
- Gimbal stabilization and camera control systems
⭐ Why Choose Us
- Advanced MEMS sensing technology with high reliability
- Multi-layer compensation algorithms ensuring long-term accuracy
- Strong resistance to temperature drift and mechanical interference
- Industrial-grade design for harsh environment operation
- Stable RS-422 high-speed communication output
- Proven performance in UAV and aerospace-grade applications
We deliver stable, accurate, and robust inertial sensing solutions for demanding engineering applications.
❓ Frequently Asked Questions (FAQ)
Q1: Does the sensor support temperature compensation?
Yes, it includes full-temperature compensation algorithms for stable performance across wide temperature ranges.
Q2: Can it correct installation errors?
Yes, it supports installation misalignment angle compensation.
Q3: What output interface does it use?
It uses a high-speed RS-422 serial communication interface.
Q4: Is it suitable for dynamic motion environments?
Yes, it is designed for both static and dynamic conditions with stable performance.
Q5: Does it include nonlinear error correction?
Yes, it integrates nonlinear compensation algorithms to improve measurement accuracy.
| Parameter | unit | fundamental form | A mould | B mould | C mould |
| Measurement range (customizable) | ° /s | ±400 | ±400 | ±400 | ±300 |
| Zero-level offset | ° /h | 15 | 10 | 3 | 5 |
| Zero-pitch instability (@ALLAN variance) | ° /h | 0.3 | 0.1 | 0.05 | 0.2 |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | ° /h | 3 | 1 | 0.4 | 1 |
| Zero bias repeatability | ° /h | 3 | 1 | 0.3 | 0.5 |
| Zero bias error across the entire temperature range | ° /h | 20 | 10 | 2 | 5 |
| random walk | ° / √ h | 0.15 | 0.05 | 0.02 | 0.03 |
| Zero-zero acceleration sensitivity | ° /h/g | 2 | 2 | 2 | 2 |
| resolution ratio | ° /s | 0.0005 | 0.0003 | 0.0001 | 0.0003 |
| Output noise (half-maximum) | ° /s | 0.3 | 0.25 | 0.15 | 0.2 |
| tape width | Hz | 250 | 250 | 150 | 400 |
| Nonlinear scaling factor | ppm | 100 | |||
| Scale factor repeatability | ppm | 100 | |||
| cross coupling | % | 0.1 | |||
| Stabilization start time | s | 1 | |||
| Data update rate | Hz | 1000 | |||
| voltage | V | 5±0.5 | |||
| starting current | mA | < 400 | |||
| steady state power consumption | W | < 1.5 | |||
| ripple wave | mV | 100 | |||
| working temperature | ℃ | -45~85 | |||
| storage temperature | ℃ | -55~105 | |||
| weight | g | 38±1 | |||

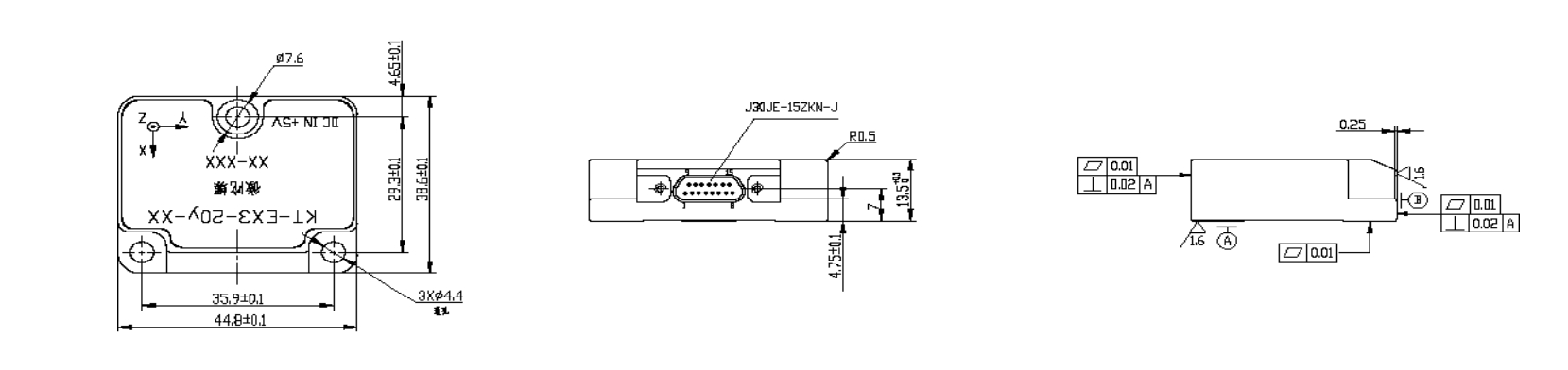

| size | mm | 44.8*38.6*13.5 | |||
| Interface | — | RS-422 | |||
