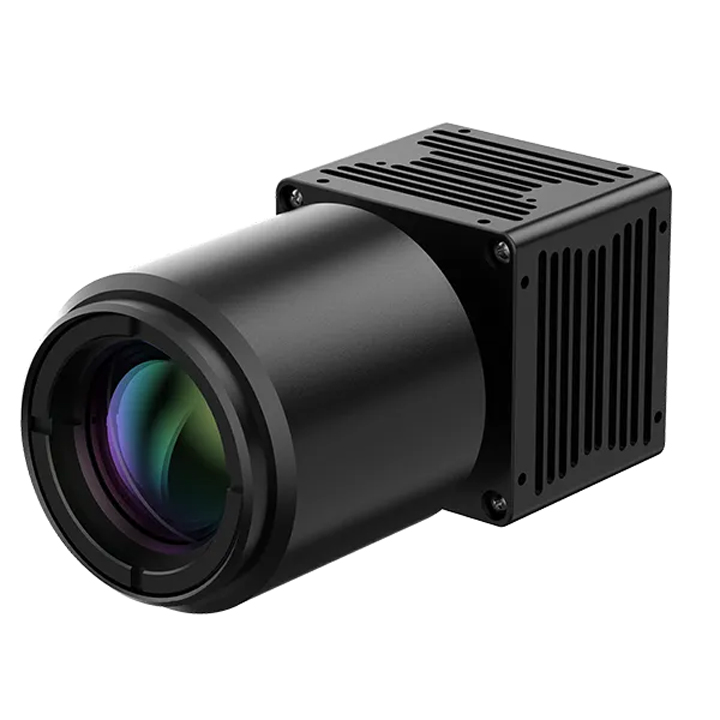

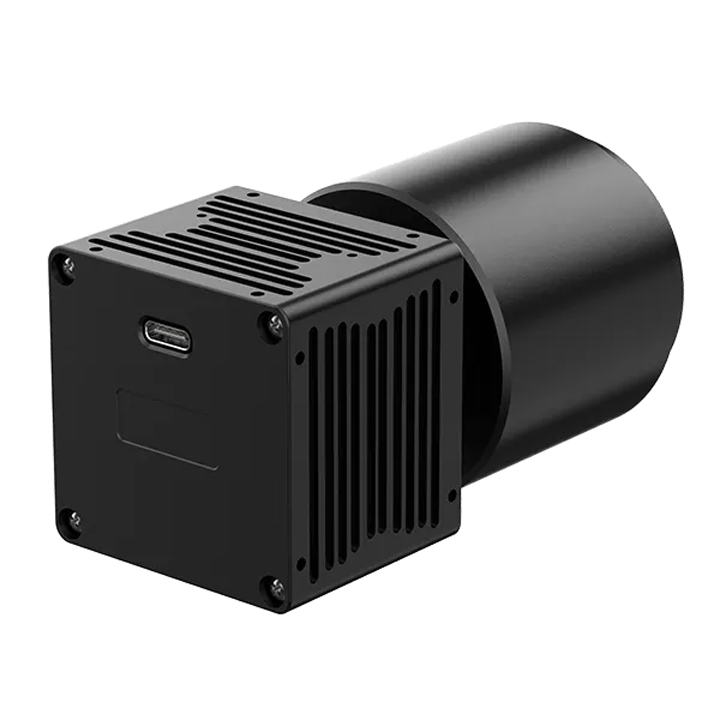

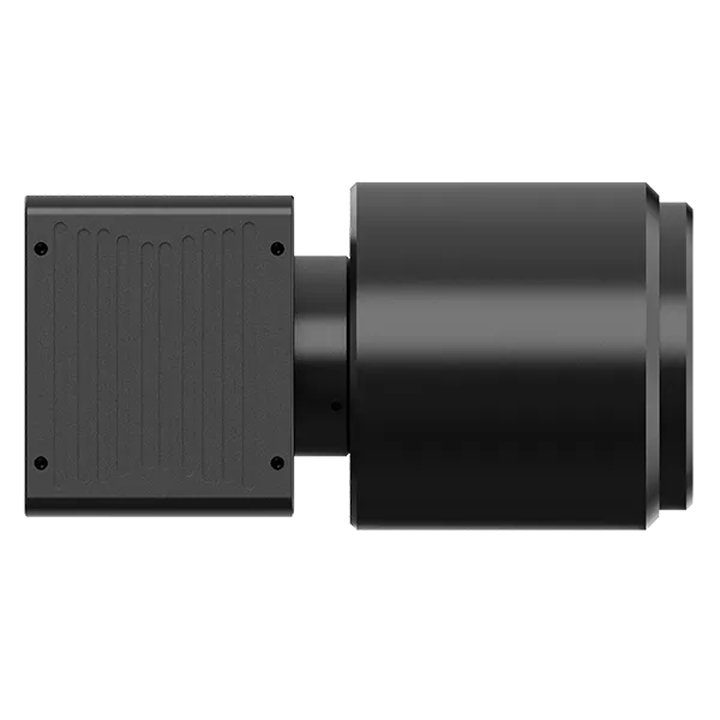

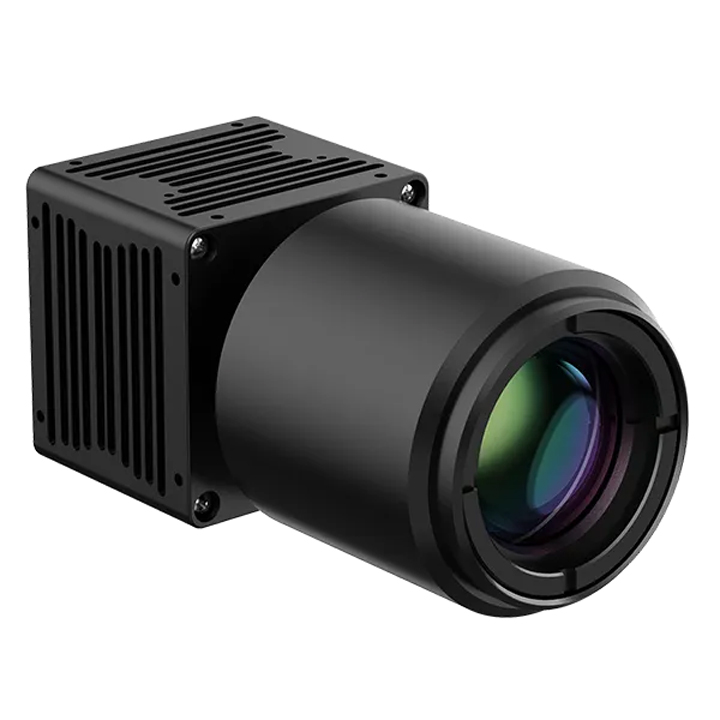

Keen M615 Uncooled Short-Wave Infrared Module Component

A high-sensitivity InGaAs short-wave infrared detector with a pixel size of 15μm and an array size of 640×512 is used in the Keen M615 short-wave infrared module component.
When used with superior image processing methods, it can provide photos that are higher quality and more delicate.
The product has a broad dynamic range, low noise level, and low power consumption.

Numerous serial connection and video output interfaces are supported.
It is extensively utilized in a variety of domains, including laser detection, semiconductor testing, machine vision, and security monitoring.

Categories: ,
Description

Feature

1. High-Performance InGaAs Detection

  • 640×512 resolution with 15μm pixel pitch
  • Self-developed InGaAs detector delivers superior sensitivity
  • Integrated TEC cooling minimizes dark current
  • Compact, low-power design optimized for portable applications

2. All-Weather Imaging Capability

  • Exceptional haze/smoke penetration for long-range detection
  • Broad spectral response covering common laser wavelengths (900-1700nm)
  • Thermal radiation detection (≥250°C targets)
  • Maintains performance in challenging environmental conditions

3. Flexible System Integration

  • Multiple video interfaces:
    • BT.656
    • BT.1120
    • LVDS
  • Expandable high-speed interfaces:
    • USB 3.0
    • CameraLink
  • Comprehensive SDK enables:
    • Rapid application development
    • Custom algorithm integration
    • Simplified system deployment

Specification

Performance Indicators
Detector Type InGaAs Short-Wave Infrared Detector
Resolution 640×512
Pixel Pitch 15μm
Detector Frame Rate 25/50Hz
Spectral Band 0.9～1.7μm
Quantum Efficiency ≥70%
Operability ≥99.8%
Average Pixel Dark Current ≤ 60fA (@-0.2V image element bias@25℃)
Exposure Time Range 0.1~30ms
Integration type Snapshot global shutter
Cooling Mode TEC 1
Depth of Output Data 8bit/10bit/14bit
Image Adjustment
Palette Support
Digital Zoom 1.0~2.0× continuous zoom (step size: 0.1)
Image Processing Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Cross Cursor Display/Blank/Move
Power and Interface
Power Supply Range 5-24V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C ＜1.5w
Digital Video Cameralink/USB 3.0
Communication Interface RS-232/RS-422/UART (3.3V)
Optical Interface C-Mount
Physical Characteristics
Weight 130±3g
Size 48×48×48.5mm
Environment Adaptability
Operating Temperature -40℃～+50℃
Storage Temperature -45℃～+85℃
Humidity 5-95%, non-condensing
Vibration 6.06g, random vibration, 3 axial
Shock 80g, 4ms, final peak sawtooth wave, three axes and six directions
Product Certification RoSH2.0

Application Scenarios

  • Biological Science
  • Education and Research
  • Material Sorting
  • Quality Inspection
