🚨 Industry Pain Points
In high-precision navigation and motion sensing applications, traditional IMU systems often suffer from:
- Performance drift under temperature variations
- Measurement errors caused by installation misalignment
- Non-linear sensor output affecting accuracy
- Reduced stability in high-dynamic or harsh environments
- Compatibility issues with existing industrial IMU systems
These limitations directly impact system reliability in aerospace, UAVs, robotics, and industrial navigation.
⚙ Product Advantages

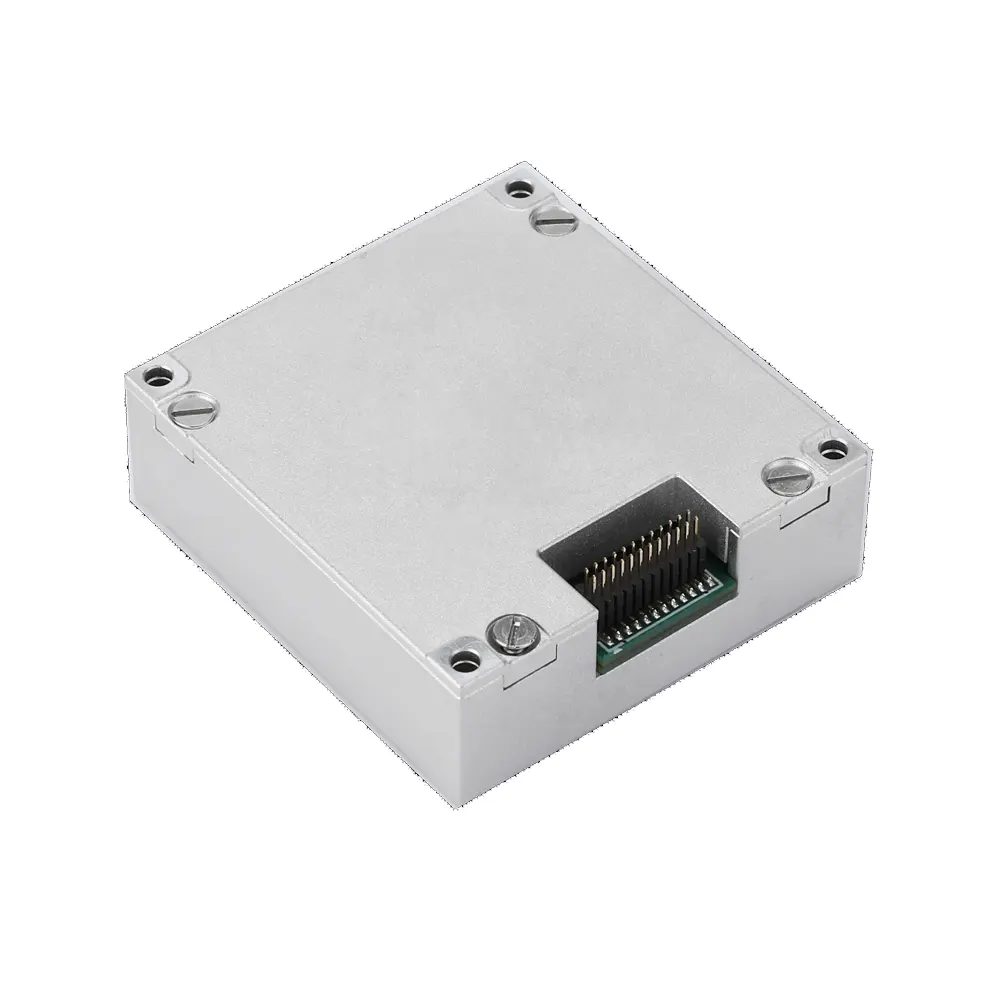

This MEMS-based IMU is designed to overcome these challenges through advanced engineering and calibration technology:
- ✔ Built with MEMS gyroscope and MEMS accelerometer chips for high reliability
- ✔ Integrated structure and embedded software design for system stability
- ✔ Full-temperature compensation ensures accuracy across wide temperature ranges
- ✔ Installation misalignment angle compensation reduces mounting errors
- ✔ Non-linear compensation algorithms improve long-term measurement precision
- ✔ Stable output in static, dynamic, and harsh environmental conditions
- ✔ Fully compatible and interchangeable with ADIS16495 series products
🚁 Product Applications
This IMU is widely used in high-precision and mission-critical systems, including:
- UAV flight control systems
- Aerospace navigation and attitude control
- Autonomous vehicles and robotics
- Industrial motion sensing systems
- Marine navigation and stabilization platforms
- Surveying and mapping equipment
⭐ Why Choose Us
- High-precision MEMS sensing technology
- Advanced multi-layer error compensation algorithms
- Strong environmental adaptability and stability
- Drop-in compatibility with ADIS16495 reduces integration cost
- Reliable performance in harsh and dynamic conditions
- Suitable for both industrial and aerospace-grade applications
We provide stable, accurate, and integration-friendly inertial sensing solutions for demanding navigation systems.
❓ Frequently Asked Questions (FAQ)
Q1: Is this IMU compatible with ADIS16495?
Yes, it is designed for full drop-in compatibility with the ADIS16495 series.
Q2: Does it support harsh environments?
Yes, it maintains stable performance under static, dynamic, and harsh conditions.
Q3: What compensation functions are built in?
It includes full-temperature compensation, misalignment correction, and non-linear compensation algorithms.
Q4: What sensors are used inside?
It integrates MEMS gyroscope and MEMS accelerometer chips.
Q5: Is it suitable for UAV applications?
Yes, it is widely used in UAV navigation and flight control systems.
| Parameter | unit | fundamental form | |
| gyroscope | Measurement range (customizable) | ° /s | ±480 |
| Zero-level offset | ° /h | 15 | |
| Zero-pitch instability (@ALLAN variance) | ° /h | 0.3 | |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | ° /h | 3 | |
| Zero bias repeatability | ° /h | 5 | |
| Zero bias error across the entire temperature range | ° /h | 20 | |
| random walk | ° / √ h | 0.15 | |
| Zero-zero acceleration sensitivity | ° /h/g | 2 | |
| resolution ratio | ° /s | 0.0005 | |
| Output noise (half-maximum) | ° /s | 0.3 | |
| tape width | Hz | 250 | |
| Nonlinear scaling factor | ppm | 100 | |
| Scale factor repeatability | ppm | 100 | |
| cross coupling | % | 0.1 | |
| Parameter | unit | fundamental form | |
| accelerometer | Measurement range (customizable) | g | ±20 |
| Zero-pitch instability (@ALLAN variance) | mg | 0.07 | |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | mg | 0.25 | |
| Zero bias repeatability | mg | 0.5 | |
| Zero bias error across the entire temperature range | mg | 3 | |
| random walk | m/s/ √ h | 0.029 | |
| resolution ratio | mg | 0.1 | |
| tape width | Hz | 200 | |
| Scale factor repeatability | ppm | 500 | |
| cross coupling | % | 0.1 | |
| Parameter | unit | fundamental form | |
|
other |
Stabilization start time | s | 1 |
| Data update rate | Hz | 3200 | |
| voltage | V | 3.3 | |
| steady state power consumption | W | 1.5 | |
| ripple wave | mV | 100 | |
| working temperature | ℃ | -45~85 | |
| storage temperature | ℃ | -55~85 | |
| weight | g | 48±2 | |

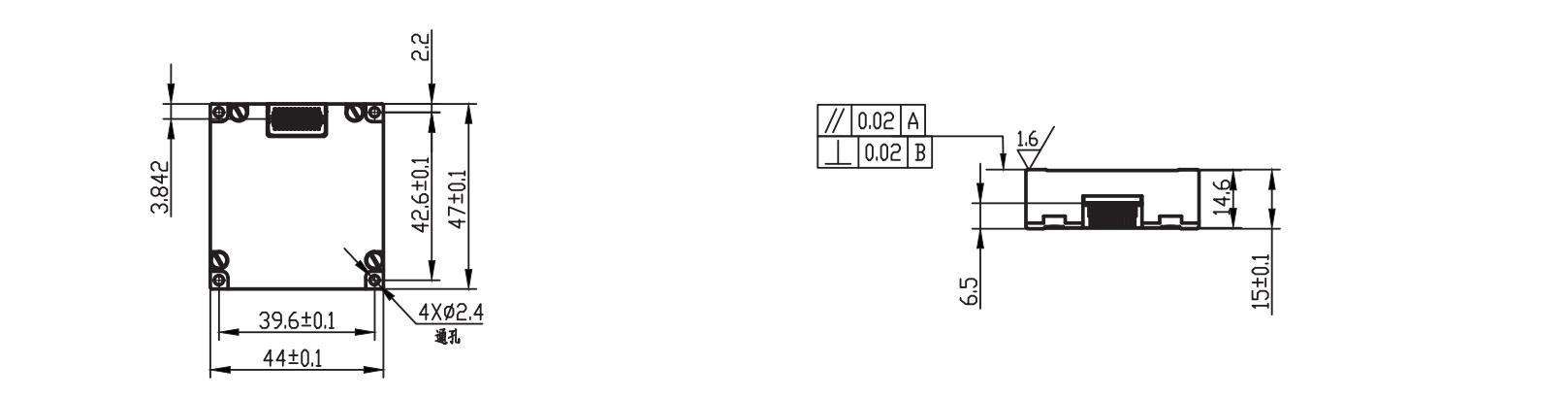

| size | mm | 44*47*15 | |
| Interface | —— | SPI | |
