🚨 Industry Pain Points
In modern navigation, control, and measurement systems, users often face the following challenges:
- Sensor drift and accumulated error in long-term operation
- Performance degradation under extreme temperature conditions
- Sensitivity to installation alignment and mechanical vibration
- Inaccurate output in dynamic or high-maneuver environments
- Lack of compatibility between different IMU systems
- High cost of system integration and replacement upgrades
These issues significantly impact positioning accuracy, navigation stability, and system reliability.
⚙ Product Advantages
This IMU system is designed with advanced MEMS technology and intelligent compensation algorithms to solve the above problems:
- ✔ Integrated MEMS gyroscope, accelerometer, magnetometer, and barometric pressure sensors
- ✔ Built-in full temperature compensation for stable performance across wide temperature ranges
- ✔ Installation misalignment compensation for improved mounting flexibility
- ✔ Nonlinear error compensation algorithms for enhanced accuracy
- ✔ Stable output under static, dynamic, and harsh environmental conditions
- ✔ High compatibility with ADIS16488 series for direct replacement
- ✔ Compact structure with high reliability and long service life
🎯 Product Applications
This IMU is widely used in precision industrial and aerospace systems, including:
- Navigation systems (GNSS/INS integrated navigation)
- Flight control systems for UAVs and aircraft
- Motion control and stabilization platforms
- High-precision positioning and orientation systems
- Robotics and autonomous vehicle navigation
- Surveying, mapping, and geospatial measurement
⭐ Why Choose Us
- High-precision MEMS sensing technology with multi-sensor fusion
- Advanced multi-layer error compensation algorithms
- Strong adaptability for harsh environmental conditions
- Drop-in compatibility with ADIS16488 series systems
- Reliable performance for both static and dynamic applications
- Designed for industrial-grade and aerospace-grade requirements
We provide stable, accurate, and integration-ready IMU solutions for demanding navigation and control applications.
❓ Frequently Asked Questions (FAQ)
Q1: Is this IMU compatible with ADIS16488?
Yes, it is designed to be fully compatible and can be used as a direct replacement.
Q2: Does it support harsh environmental conditions?
Yes, it maintains stable performance under static, dynamic, and harsh conditions.
Q3: What sensors are integrated in this product?
It includes MEMS gyroscope, accelerometer, magnetometer, and barometric pressure sensors.
Q4: Does it support temperature compensation?
Yes, it has full temperature compensation for improved measurement accuracy.
Q5: What are the main application areas?
It is used in navigation, control systems, measurement systems, and orientation positioning applications.
| Parameter | unit | fundamental form | |
| gyroscope | Measurement range (customizable) | ° /s | ±480 |
| Zero-level offset | ° /h | 180 | |
| Zero-pitch instability (@ALLAN variance) | ° /h | 5 | |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | ° /h | 10 | |
| Zero bias repeatability | ° /h | 20 | |
| Zero bias error across the entire temperature range | ° /h | 72 | |
| random walk | ° / √ h | 0.26 | |
| Zero-zero acceleration sensitivity | ° /h/g | 20 | |
| resolution ratio | ° /s | 0.01 | |
| Output noise (half-maximum) | ° /s | 0.4 | |
| tape width | Hz | 330 | |
| Nonlinear scaling factor | ppm | 200 | |
| Scale factor repeatability | ppm | 200 | |
| cross coupling | % | 0.2 | |
| Parameter | unit | fundamental form | |
| accelerometer | Measurement range (customizable) | g | ±20 |
| Zero-pitch instability (@ALLAN variance) | mg | 0.07 | |
| Zero offset stability (10-second smoothing, 1σ, room temperature) | mg | 0.25 | |
| Zero bias repeatability | mg | 0.5 | |
| Zero bias error across the entire temperature range | mg | 3 | |
| random walk | m/s/ √ h | 0.029 | |
| resolution ratio | mg | 0.1 | |
| tape width | Hz | 250 | |
| Scale factor repeatability | ppm | 500 | |
| cross coupling | % | 0.2 | |
| Parameter | unit | fundamental form | |
| magnetometer | Dynamic measurement range | guass | ±2.5 |
| Sensitivity Value | mguass/LSB | 0.1 | |
| barometer | pressure limit | mbar | 300~1100 |
| sensitivity | mbar/LSB | 6.1*10 -7 | |
| Parameter | unit | fundamental form | |
|
other |
Stabilization start time | s | 1 |
| Data update rate | Hz | 2460 | |
| voltage | V | 3.3±0.15 | |
| steady state power consumption | W | 0.5 | |
| ripple wave | mV | 100 | |
| working temperature | ℃ | -45~85 | |
| storage temperature | ℃ | -55~85 | |
| weight | g | 48±2 | |

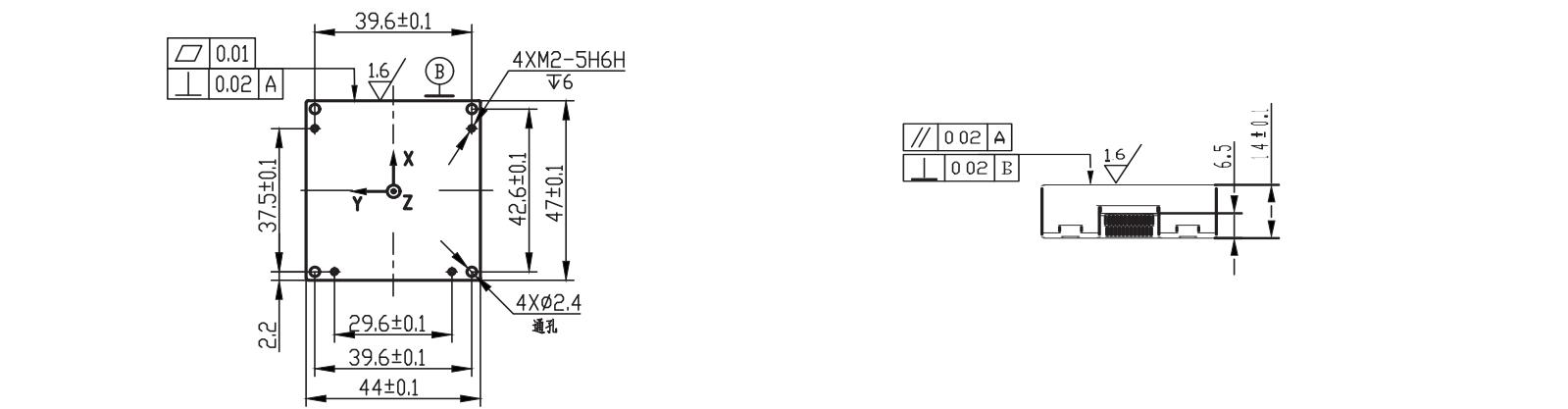

| size | mm | 44*47*14 | |
| Interface | —— | SPI | |
