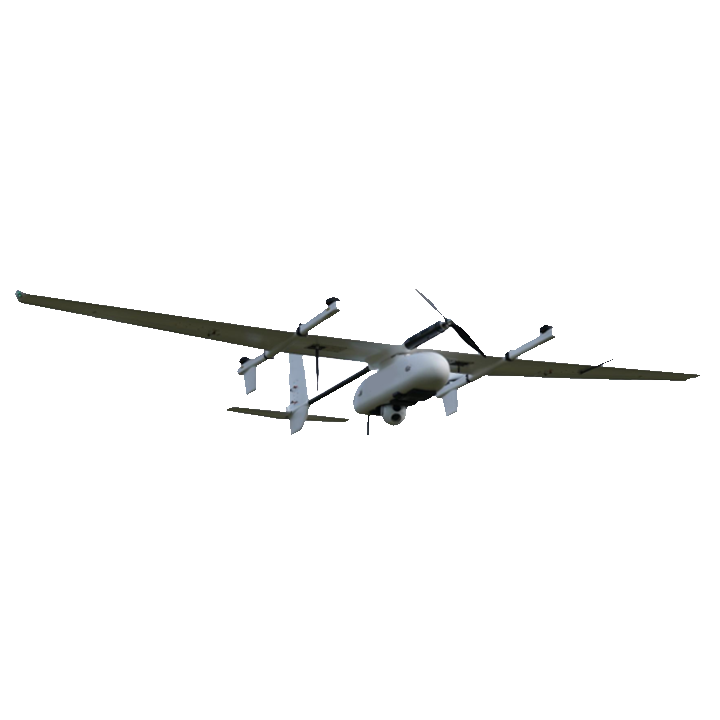

Features Of Mcw-15 Vtol Fixed Wing Uav System
1. Vertical take off and land
2. Long endurance comparing to quadcopter
3. Fully autonomous
4. Interchangeable payload
5. Dual GNSS antenna for orientaion
6. Multiple fail-safe mechnism
7. RTK high precison landing
8. Take off and land on moving vessel
9. Forward and downward obstacle avoidance capability
Technical Spec. Of Mcw-15 Vtol Fixed Wing Uav System
| TECHNICAL SPEC. OF MCW-15 VTOL FIXED WING UAV SYSTEM | |||
| Items | Technical Spec. | Items | Technical Spec. |
| Aerodynamic Layout | Composite wing | Power | Pure electric(battery) |
| MTOW | 18kg | Max. Endurance | 110min(with MG-120E) |
| Payload capacity | 3kg | Control range | 50 km(LOS) |
| Cruising Speed | 61-90km/h | Air-frame Material | Carbon, glass, composite material |
| Max.Takeoff altitude | 4500m(AMSL) | Wind resistance | VTOL: level 5 Cruise: level 6 |
| Max.ceiling | 6500m(AMSL) | UAV size | 3540*2060*620 mm |

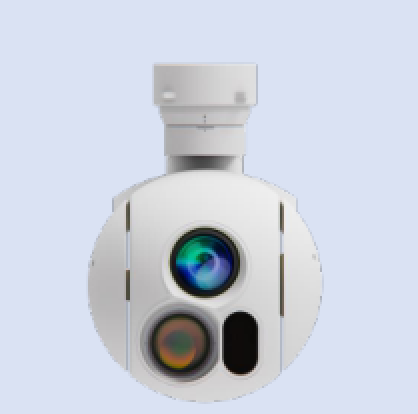

Related 3-axis EO/IR/LRF STABLIZED GIMBAL Specification
| 3-axis EO/IR/LRF STABLIZED GIMBAL | |
| Model | MG-120E |
| EO | 30x optical zoom |
| 1920*1080 resolution | |
| IR | 640*512 resolution |
| Uncooled,35mm lens | |
| LRF | Lasering ranging, 3km |
Related GCS-303 Portable dual screen ground control station
Rich peripheral interface Vehicle or room based.
