Features Of Mcw-40 Vtol Fixed Wing Uav System
1. Vertical take off and land
2. Long endurance
3. Fully autonomous
4. Back-up GNSS and magnetic compass sensor
5. Multiple fail-safe mechanism
6. RTK high precision landing
7. Take off and land on moving vessel
8. 4 stroke EFI engine with the features of lower noise, higher fuel
consumption efficiency
9. GNSS anti-jamming capability
Technical Spec. Of Mcw-40 Vtol Fixed Wing Uav System
| TECHNICAL SPEC. OF MCW-40 VTOL FIXED WING UAV SYSTEM | |||
| Items | Technical Spec. | Items | Technical Spec. |
| Aerodynamic Layout | Composite wing | Power | Gasoline-battery |
| MTOW | 45kg | Max. Endurance | 10h(with MG-150E) |
| Payload capacity | 8kg | Control range | 100/200 km(LOS) |
| Cruising Speed | 80-120km/h | Air-frame Material | Carbon, glass, composite material |
| Max.Takeoff altitude | 3000m(AMSL) | Wind resistance | Level 6 |

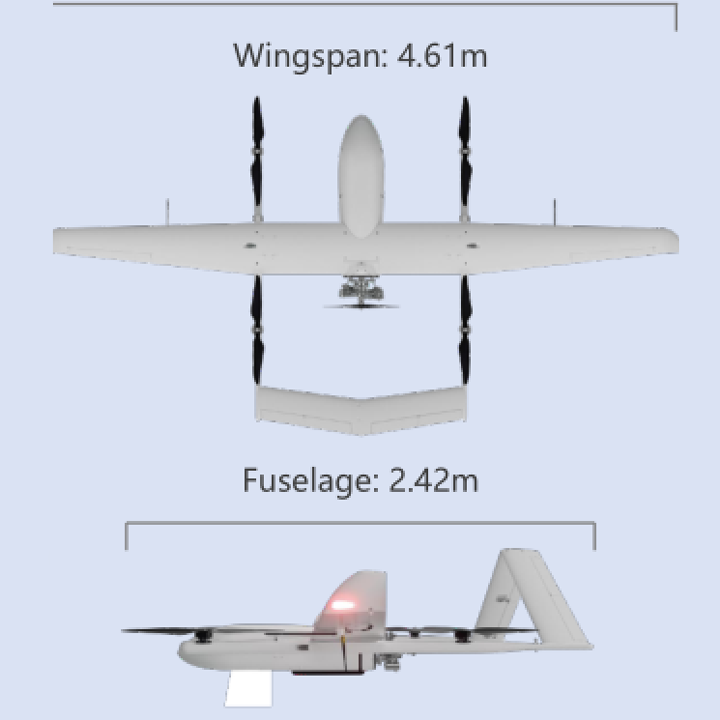

| Max. ceiling | 5500m(AMSL) | UAV size | 4610*2420*800 mm |

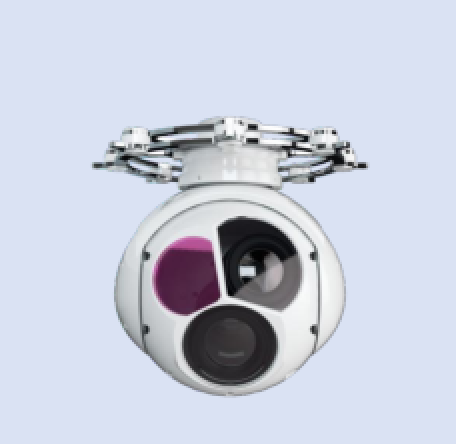

Related EO/IR/LRF STABLIZED GIMBAL Specification
| EO/IR/LRF STABLIZED GIMBAL | |
| Model | MG-150E |
| EO | 30x optical zoom |
| 1920*1080 resolution | |
| IR | 640*512 resolution |
| Uncooled, 50mm lens | |
| LRF | Range: 50-4000m |
Related GCS-303 Portable dual screen ground control station
Rich peripheral interface Vehicle or room based.
