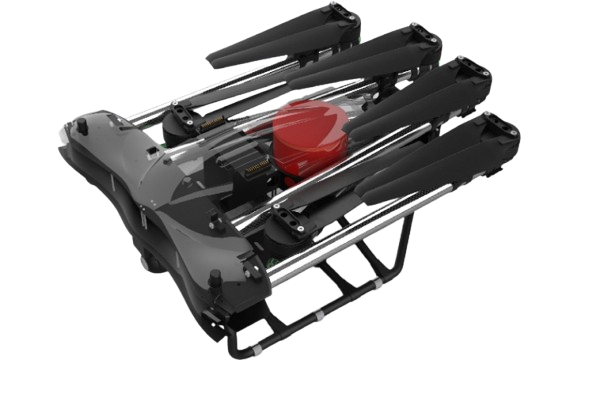

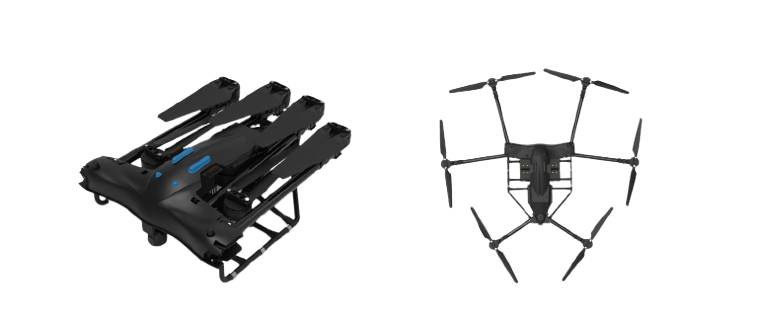

Exquisite Size
Boasting industry-leading model design, the device achieves an unparalleled compact storage size. Both the flight platform and tripod feature a foldable structure, which does not compromise their overall unfolded dimensions or functional performance.

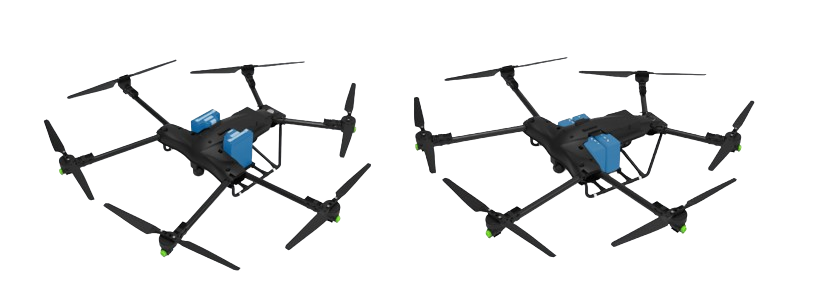

Modular Design
The flight platform and tripod feature universal interface designs, enabling seamless adaptation to mounting devices of varying heights and dimensions.
Interface Unified Mounting
The flight platform is outfitted with a universal interface, offering dozens of mounting possibilities. During operation, users only need to plug in the power cable and Type-C data cable, then pair it with a universal mounting board—this setup enables perfect compatibility with 90% of the mounting modules available on the market.

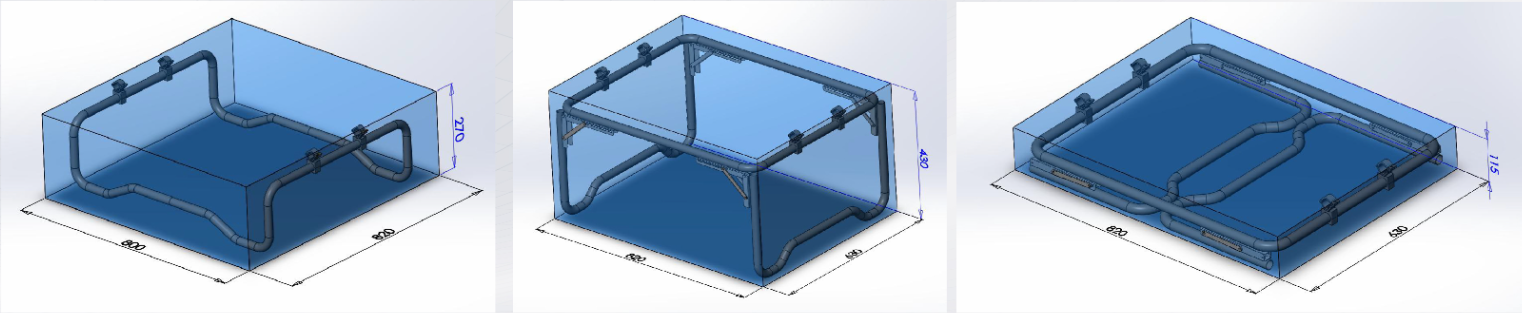

Rapid Deployment
The flight platform, tripod, and mounting module all feature a foldable design. This allows for easy deployment and readiness for takeoff within 10 seconds, eliminating the need for complex operations like bending or fastening.
Multiple Parachute Adaptations
It is perfectly compatible with mainstream manufacturers’ parachute solutions and complies with the requirements of new domestic aircraft management regulations.

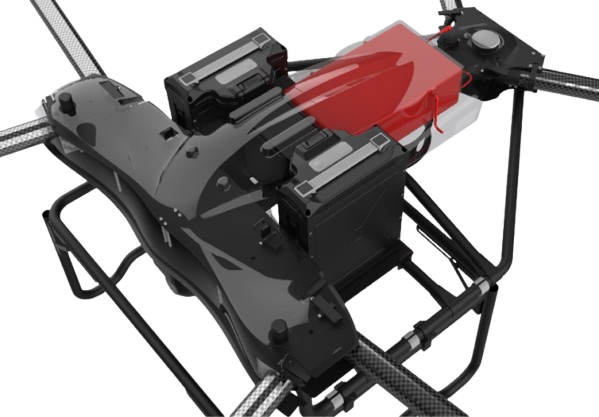

Multi Specification Battery Adaptation
It is compatible with battery specifications commonly used in the market. By pre-reserving battery plugs and sizes of different types, it further enhances the adaptability and performance limits of the flight platform.
Upward Scheme Support
The TF100 reserves a pre-configured universal interface to accommodate devices that require mounting, enabling seamless adaptation to mounting equipment such as air detection devices.
Parameter Details
- Material: High strength carbon fiber
- Propeller: 41 inch folding paddle
- Number of rotors: 6 axes 6 0ARS
- Spread size: 2430*2140*350mm

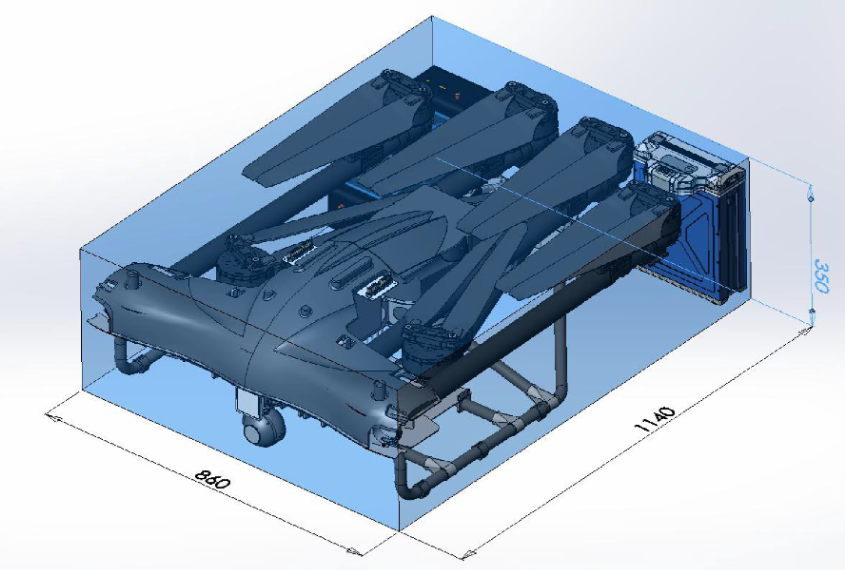

- Folding size: 860*1170*3500mm
- Wheelbase: 2200mm
- Empty weight: 25 kg
- Battery weight: 6.3kgx4
- Maximum load: 50kg
- Maximum take-off weight: 104kg
- No-load life: 70min
- 50 kg load life: 25min
- Maximum flight speed: 20m/s
- Positioning system: GPS/Beidou/Galileo/Glonass
- Positioning accuracy: ±0.5m
