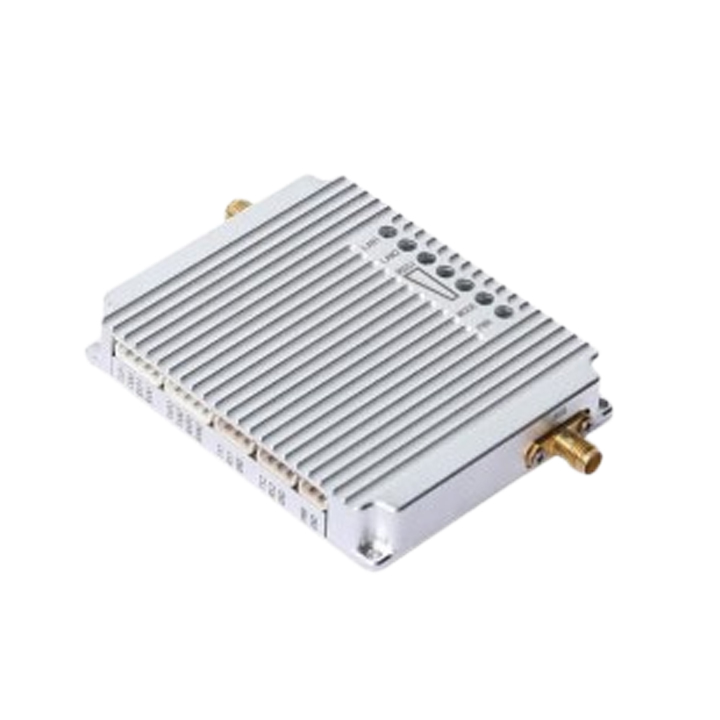

MYD-C-Link P2MP

The MYD-C-Link P2MP is a cutting-edge point-to-multipoint (P2MP) communication module engineered for seamless, reliable data transmission across distributed networks. Designed to bridge a single central node to multiple remote endpoints, it delivers stable performance in industrial IoT (IIoT), smart infrastructure, and remote monitoring scenarios—eliminating the complexity of deploying separate point-to-point links. With support for low-latency data transfer, robust anti-interference capabilities, and easy integration with existing systems, it simplifies network expansion while ensuring consistent connectivity for mission-critical applications. Compact, energy-efficient, and built for durability, the MYD-C-Link P2MP empowers businesses to build scalable, cost-effective communication networks that adapt to evolving operational needs.

Category:
Description

Product Feature

  • Support up to 16 slave nodes
  • Maximum stream: 30Mbps
  • Multiple BW options available

Application 1 (Repeater-NLOS)

MYD-C-Link P2MP

Application 2 (P2MP)

MYD-C-Link P2MP

Application 3 (P2MP)

MYD-C-Link P2MP

Model Working frequency Transmitting power Max transmission distance
TC69B – A – C23 806 – 826MHz 0.2W 10KM
TC69B – B – C23 1427 – 1447MHz 0.2W 10KM
TC69B – C – C23 1420 – 1530MHz 0.2W 10KM
TC69B – D – C23 2401 – 2481MHz 0.2W 10KM
TC69B – A – C33 806 – 826MHz 2W 30/50KM
TC69B – C – C33 1420 – 1530MHz 2W 30/50KM
TC69B – D – C33 2401 – 2481MHz 2W 30/50KM
TC69B – C – C37 1420 – 1530MHz 5W 50KM
TC69B – C – C40 1420 – 1530MHz 10W 50KM

Product Parameter

System parameter Technical index
Equipment type C23 / C33 C37 / C40
RF channel 1T2R 1T2R
Output power C23 (0.2W) / C33 (2W) C37 (5W) / C40 (10W)
Channel BW 3/5/10/20MHz 3/5/10/20MHz
Maximum node Max 16 slave nodes Max 16 slave nodes
Maximum rate 30Mbps@20MHz 30Mbps@20MHz
RF interface SMA*2 SMA*2
Power interface Modelx2.5 – 2pin Modelx2.5 – 2pin
Device interface Ethernet*2; CAN/SBUS*1; TTL/RS232*2 Ethernet*2; CAN/SBUS*1; TTL/RS232*2
Power consumption ≤ 5W@C23; ≤ 15W@C33 ≤ 24W@C37; ≤ 36W@C40
Dimension(L*W*H) 77 x 62 x 13mm @C23; 134*62*16.5mm @C33 153*62*25mm @C37; 173*62*27.5mm @C40
Weight 98g @C23; 162g@C33 247g @C37; 311g @C40
Working voltage DC 9~15V DC 20~30V
Working temperature -20~+55°C -20~+55°C
