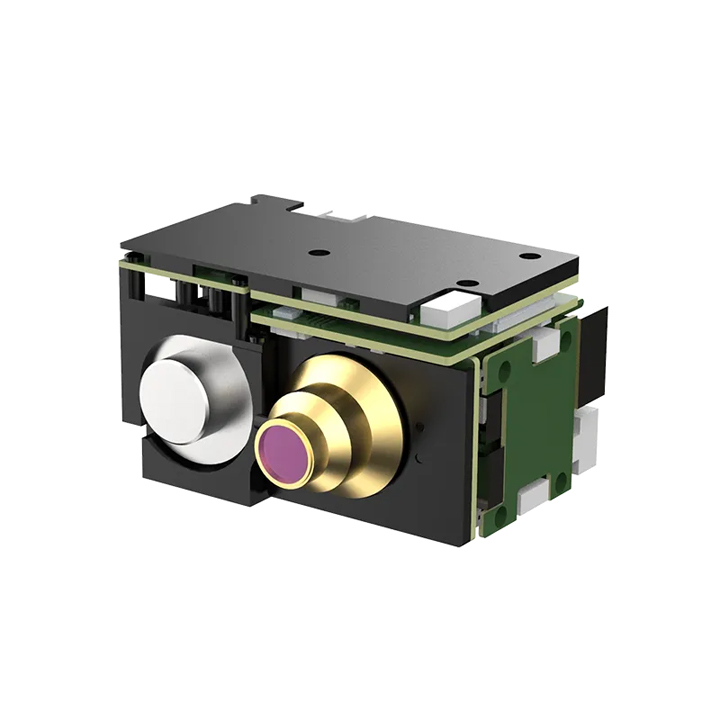

Photon M615 Medium-Wave HOT Cooled Infrared Module

The high-performance T2SL cooled infrared FPA detector, SWaP-designed, and self-developed image processing algorithm are all included with the Photon M615 medium-wave HOT cooled infrared module.
It charts rapidly and operates with flexibility and dependability. It works well with multiple focus and continuous zoom lenses, supports a variety of digital video interfaces, and is frequently used in handheld, micro pod, and other contexts.
It lowers secondary development expenses by offering a straightforward and user-friendly SDK.

Categories: ,
Description

Feature

1. Leading-Edge SWaP Design

Miniaturized applications can be satisfied by the tiny size (76.5 x 69.2 x 46.6 mm), low weight (359 g), and low power consumption (6W).

2. Sensitive and delicate images

Since the NETD is as low as 20 mK, it can observe small targets at long distances.

3 Intelligent Imaging Algorithm Self-Developed

With its innovative self-developed picture algorithm, it offers the optimum imaging effect for various situations by supporting a wide dynamic range and adaptable integral time.

4 Quick Imaging for On-Time Recording

It meets the needs of large-range dynamic target capture with its new generation T2SL detector, which has a resolution of up to 640×512, a frame rate of up to 50Hz, and a cooling time as low as 2.5 minutes.

5. Exceptional Durability and Dependability

Reliable performance in harsh settings, including arctic areas or deserts, is ensured by the working temperature range of -40°C to +70°C and the mean time to failure (MTTF) of up to 20,000 hours.

Specification

Performance Indicators
Detector Type T2SL Cooled Infrared FPA
Resolution 640×512
Detector Frame Rate 50Hz/30Hz
Pixel Pitch 15μm
Spectral Band 3.7～4.8μm
NETD ≤20mK@F4.0，25℃/≤25mK@F5.5，25℃
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot (white-hot by default)
Palette Multiple types support
Reticle Display/Blank/Move
Image Processing Non-uniformity correction, digital filter noise reduction, digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 12±0.5V DC
Typical Power Consumption at 25°C Without Extension Stable power consumption ≤ 6W, peak power consumption ≤ 12W@Cameralink/Stable power consumption ≤ 7W, peak power consumption ≤ 13W@SDl
Interface
Analog Video PAL
Digital Video Cameralink/SDI
Serial Communication Interface RS422 (default baud rate:115200)
Synchronization Mode Internal synchronization (default)/External synchronization/Adaptive synchronization mode
Physical Characteristics
Dimensions (Without lens) 76.5×69.2×46.6mm
Weight (Without lens) 364g@Cameralink/359g@SDI
Environment Adaptability
Operating Temperature -40°C~ +70°C
Storage Temperature -45°C~ +75°C
Random Vibration 4.16g
Shock Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)

Application Scenarios

  • Perimeter Surveillance
  • Nature Reserve
  • UAV
  • Handheld Device
