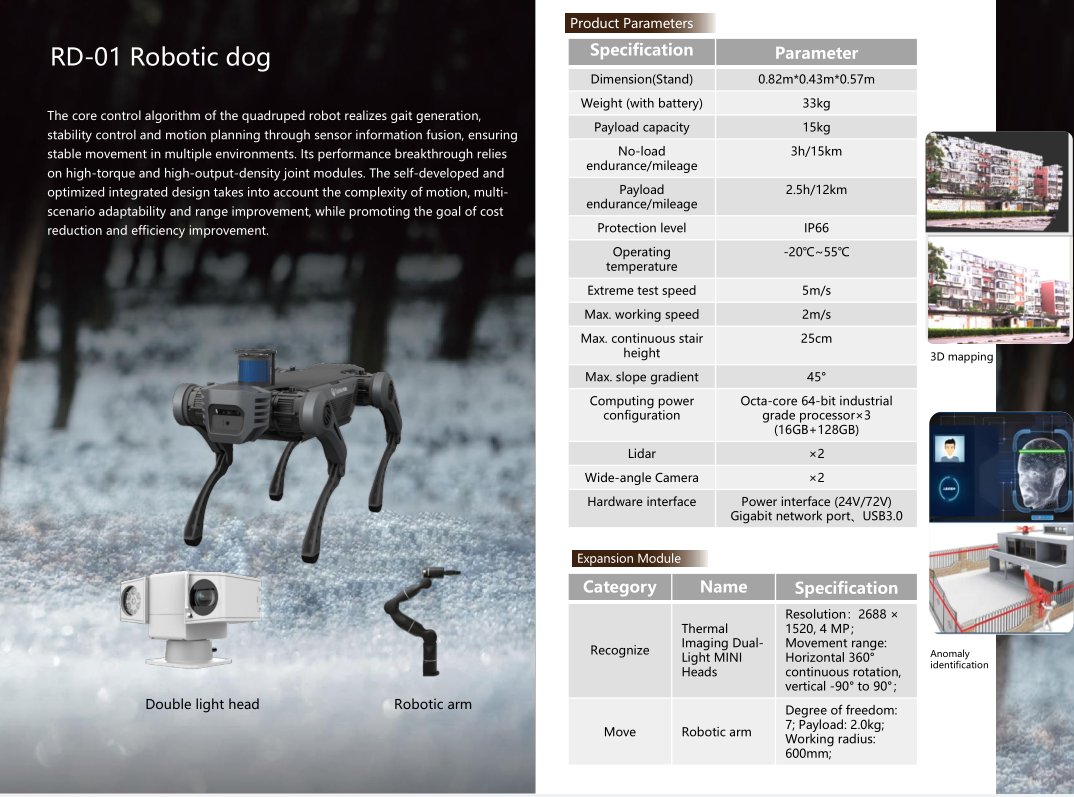

RD-01 Robotic dog Parameters

Specification arameter
Dimension(Stand) 0.82m*0.43m*0.57m
Weight (with battery) 33kg
Payload capacity 15kg
No-load endurance/mileage 3h/15km
Payload endurance/mileage 2.5h/12km
Protection level IP66
Operating temperature -20℃C~55C
Extreme test speed 5m/s
Max. working speed 2m/s
Max. continuous stair height 25cm
Max. slope gradient 45°
Computing power configuration Octa-core 64-bit industrial
grade processorx3
(16GB+128GB)
Lidar x2
Wide-angle Camera x2
Hardware interface Power interface (24V/72V)
Gigabit network port、USB3.0

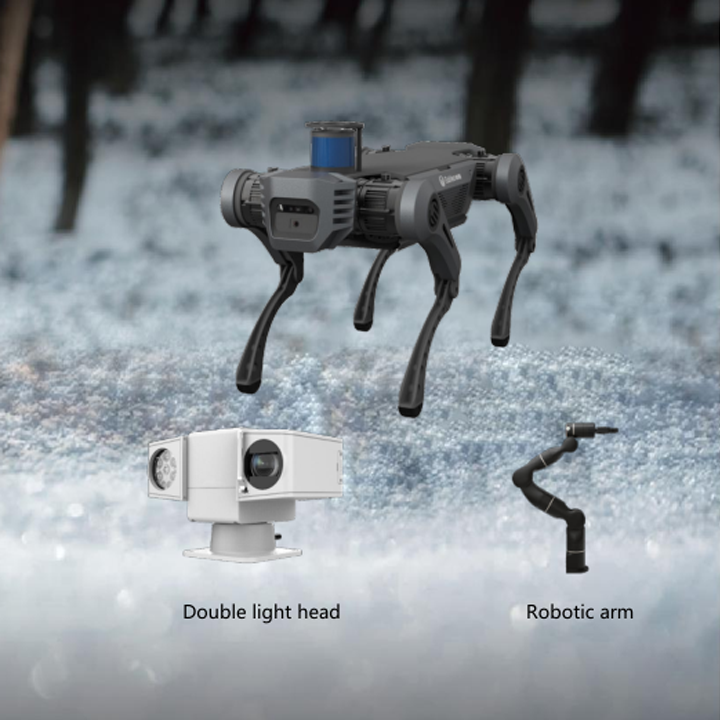

RD-01 Robotic dog Expansion Module

Category Name Specification
Recognize Thermal Imaging Dual-Light MINI Heads Resolution: 2688 x 1520,4 MP;
Movement range: Horizontal 360°continuous rotation, vertical -90° to 90°;
Move Robotic arm Degree of freedom: 7;Payload: 2.0kg:
Working radius: 600mm;
