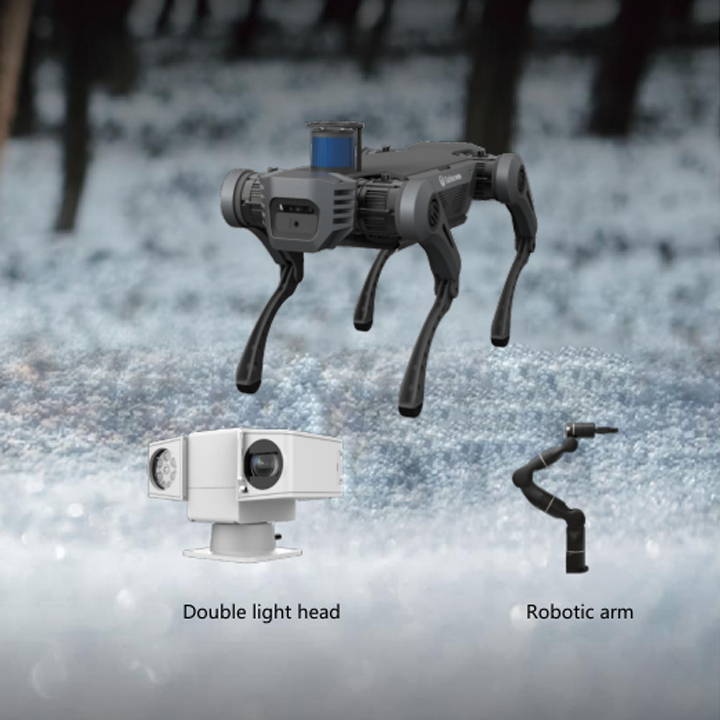

RD-01 Robotic dog
Back to products

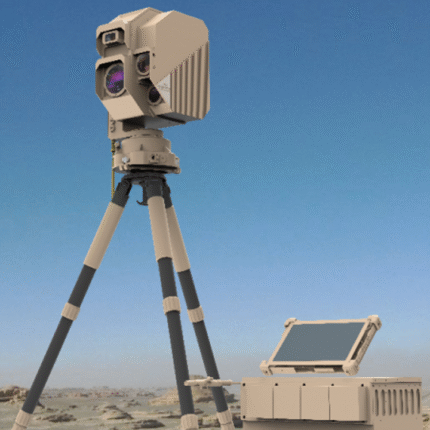

MZL20 series anti-drone laser strike system

RY-ELF Small drones

THE CMB01 Cooled Hand-held Thermal Imager is set of cooling wave infrared thermal imaging, visible observation, laser ranging, Beidou/GPS positioning and electronic compass sensor in integrated multi-functional products, infrared thermal imaging and visible module has continuous zoom, brightness adjustment, contrast adjustment and electronic amplification, can achieve all-weather target detection, recognition, observer can also be completed. Target ranging, positioning, audio and video recording data record and storage and other functions.

Categories: ,
Description

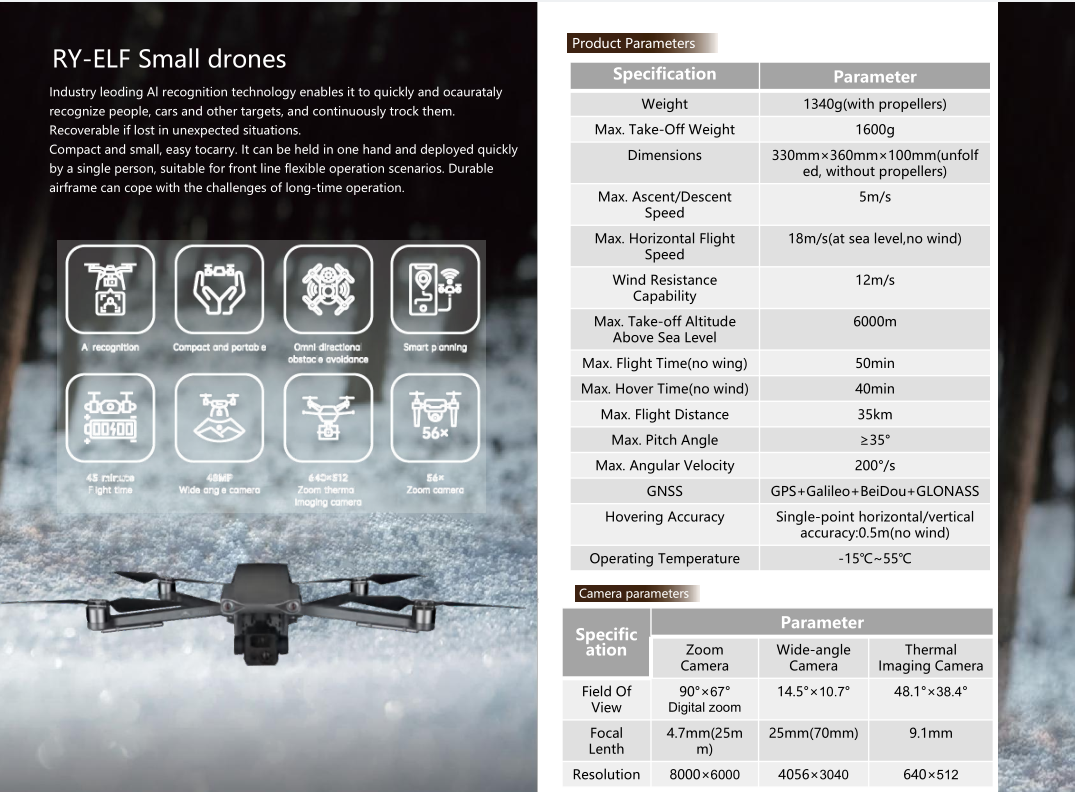

RY-ELF Small drones Parameters

Specification Parameter
Weight 1340g(with propellers)
Max. Take-Off Weight 1600g
Dimensions 330mmx360mmx100mm(unfolfed, without propellers)
Max. Ascent/Descent Speed 5m/s
Max. Horizontal Flight Speed 18m/s(at sea level,no wind)
Wind Resistance Capability 12m/s
Max. Take-off Altitude Above Sea Level 6000m
Max. Flight Time(no wing) 50min
Max. Hover Time(no wind) 40min
Max. Flight Distance 35km
Max. Pitch Angle ≥35°
Max. Angular Velocity 200°/s
GNSS GPS+Galileo+BeiDou+GLONASS
Hovering Accuracy Single-point horizontal/vertical accuracy:0.5m(no wind)
Operating Temperature -15°C~55°C

RY-ELF Small drones  Camera Parameters

Specification Parameter
Zoom Camera Wide-angle Camera Thermal Imaging Camera
Field Of View 90°x67°Digital zoom 14.5°x10.7° 48.1°x38.4°
Lenth Focal 4.7mm(25mm) 25mm(70mm) 9.1mm
Resolution 8000×6000 4056×3040 640×512

RY-ELF Small drones
