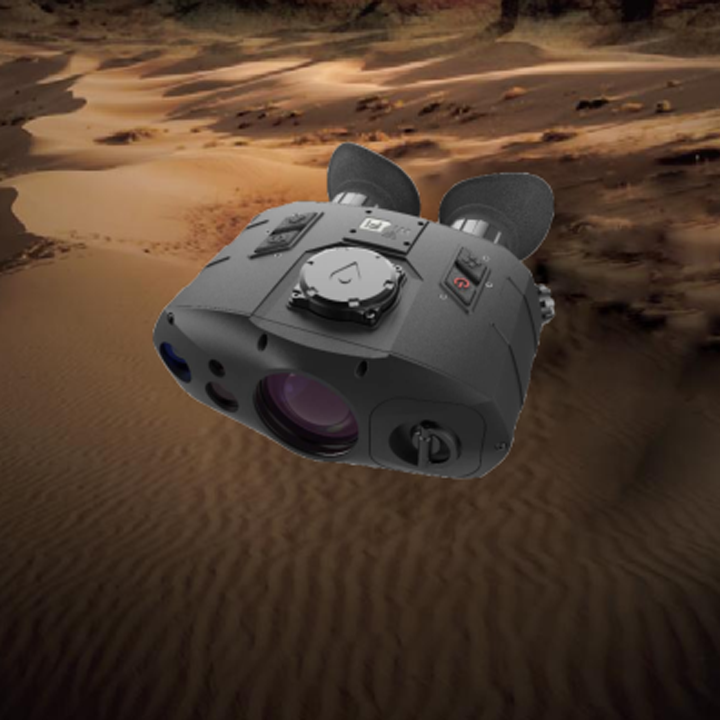

TF03 Three light HD fusion observer

It has a dual-channel high-definition observation channel with a visible resolution of 6.2 million pixels and an infrared resolution of 800,000 pixels, which is universal day and night. Handheld built-in positioning module, electronic compass, laser ranging, can quickly and accurately self- positioning and target positioning, and target information collection and upload. Handheld small size, light weight, low power consumption, can adapt to a variety of complex climate and environment.

Categories: ,
Description

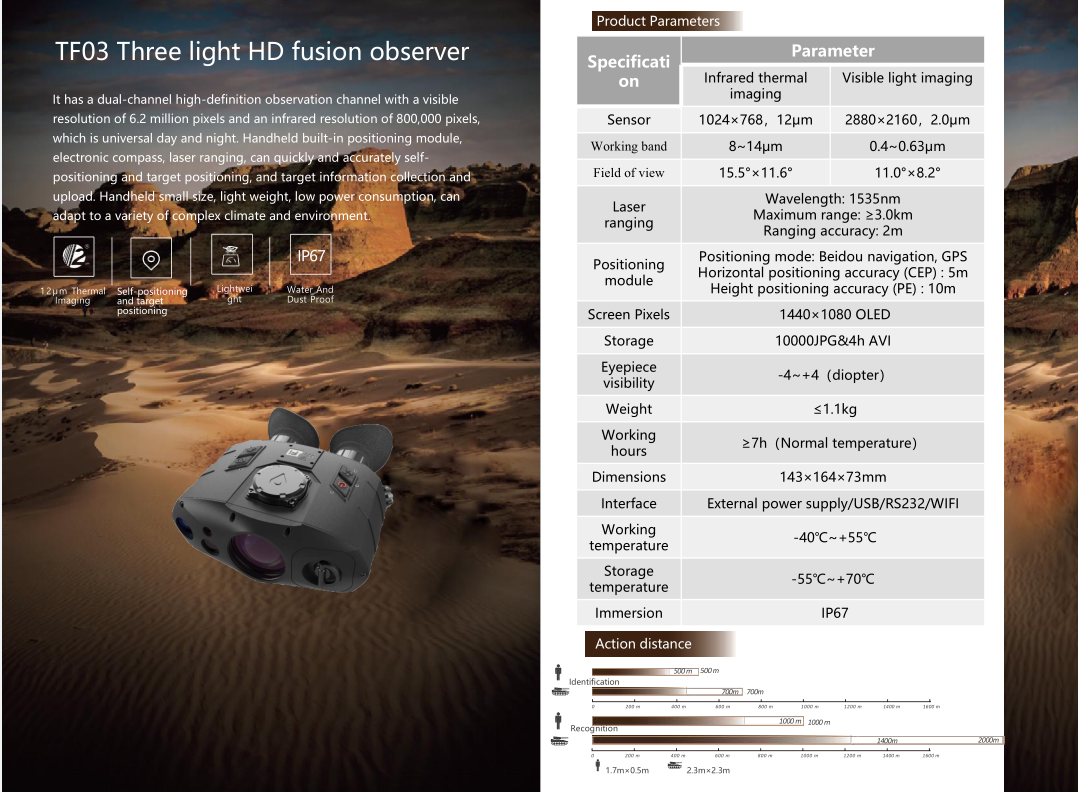

TF03 Three light HD fusion observer Parameters

Specification Parameter
Infrared thermal imaging Visible light imaging
Sensor 1024×768, 12μm 2880×2160,2.0μm
Working band 8~14um 0.4~0.63μm
Field of view 15.5°x11.6° 11.0°x8.2°
Laser ranging Wavelength: 1535nm
Maximum range: ≥3.0km
Ranging accuracy: 2m
Positioning module Positioning mode: Beidou navigation, GPS
Horizontal positioning accuracy (CEP): 5m
Height positioning accuracy (PE) : 10m
Screen Pixels 1440×1080 OLED
Storage 10000JPG&4h AVI
Eyepiece visibility -4~+4 (diopter)
Weight ≤1.1kg
Working hours |≥7h (Normal temperature)
Dimensions 143x164x73mm
Interface External power supply/USB/RS232/WIFI
Working temperature -40°C~+55°℃
Storage temperature -55°C~+70℃
Immersion IP67
