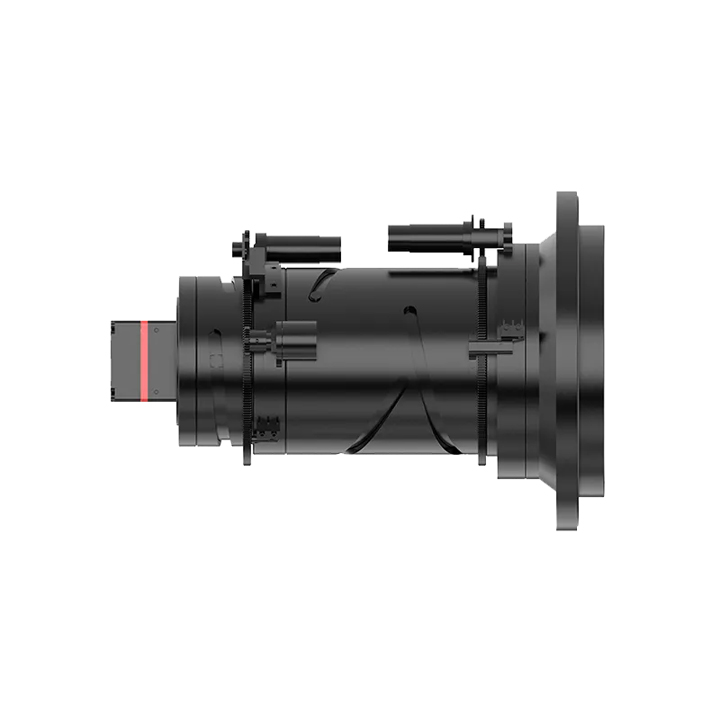

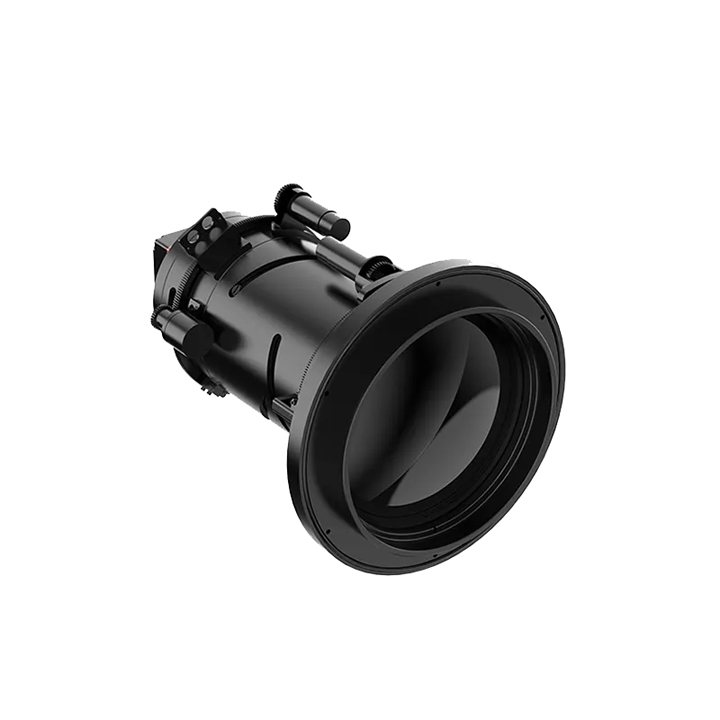

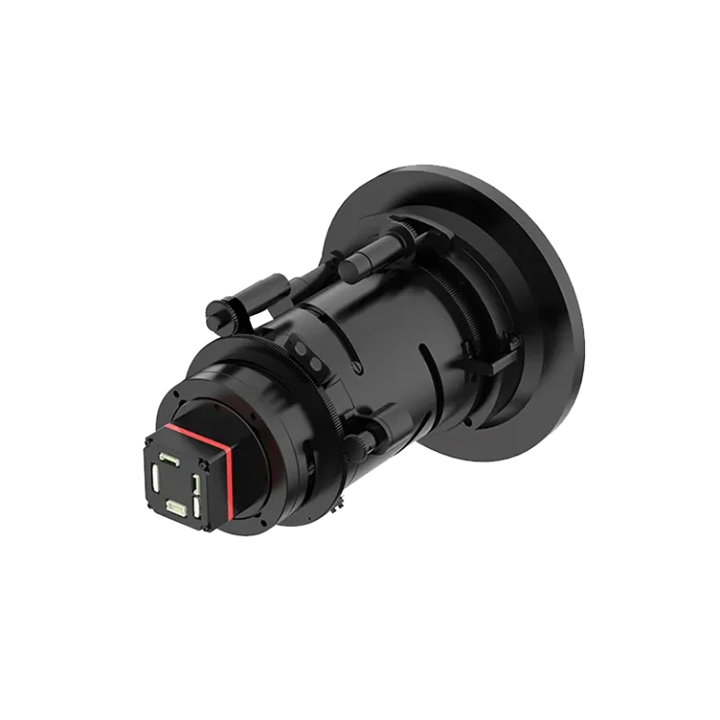

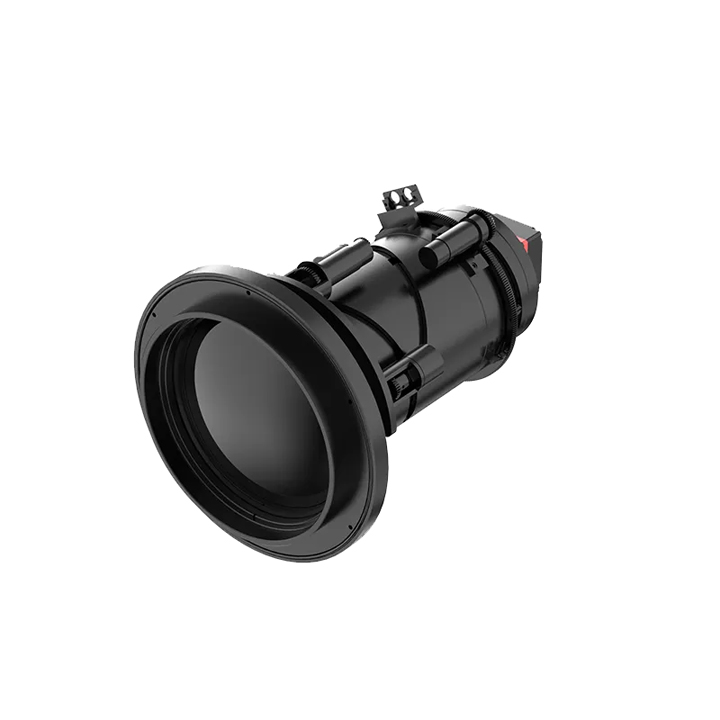

Turing M1024 Uncooled Infrared Module

Long-distance monitoring is made possible by the Turing M1024 uncooled infrared module’s integrated high-sensitivity VOx infrared detector, which offers a consistently high-performance kernel, the best image algorithms, and lens control technology. Numerous application scenarios, including perimeter security, high-altitude surveillance, forest fire prevention, water area monitoring, and industrial temperature measurement, can make extensive use of the device.

Categories: ,
Description

Feature

1. Premium Detector Performance

  • Equipped with a high-sensitivity VOx infrared detector core
  • Incorporates advanced image processing algorithms and precision lens control technology
  • Delivers exceptional long-range monitoring capabilities
  • Ideal for diverse applications:
    • Perimeter security systems
    • Aerial surveillance platforms
    • Forest fire detection networks
    • Maritime monitoring solutions
    • Industrial temperature measurement

2. Enhanced Imaging Technology

  • Next-generation intelligent image processing algorithms
  • Specialized optimization for challenging environments:
    • Dense vegetation (forests)
    • Marine/coastal areas
    • Sky background scenarios
    • Adverse weather conditions (rain, fog, snow)
  • Produces crisp, high-definition thermal imagery

3. Advanced Optical System

  • Comprehensive lens compatibility:
    • Athermalized fixed-focus lenses
    • Motorized prime lenses
    • High-performance zoom lenses
  • Smart focus capabilities:
    • Precision electric focus
    • Smooth zoom control
    • Intelligent autofocus
    • Automatic focus compensation

4. Flexible Integration Options

  • Multiple video output standards:
    • BT.601/BT.1120 digital interfaces
    • Expandable options: SDI, USB 3.0, CameraLink, HDMI
  • Comprehensive development support:
    • Intuitive SDK for rapid integration
    • Reduced system development time
    • Lower total implementation costs
    • Simplified application development

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 1024×768
Detector Frame Rate 30Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25℃,F#1.0
Image Adjustment
Palette Support (20 types)
Digital Zoom 1.0~4.0× continuous zoom (step size: 0.1)
Brightness/Contrast Adjustment Manual/Auto 0/Auto 1
Image Processing Non-uniformity correction/digital filter noise reduction/digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Network Function
Network Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.
Platform Access ONVIF, GB28181, SDK
Simultaneous Previewed Videos Up to 20 channels
User Management Up to 20 users, 3 levels: administrator, operator and user
Browser Support IE8+ and various languages
Intelligent Functions
Fire Point Detection Support
Intelligent Video Support
Intelligent Alarm Abnormality detection for network cable failure, IP address conflict, full memory, memory error and illegal access, and linkage alarm
Intelligent Detection Tripwire and regional intrusion detections, and other intelligent video analysis functions
Alarm Linkage Video taking/image capture/Email/linked PTZ/alarm output
Lens
Lens Type Athermalized/Motorized fixed-focus /Continuous zoom
Focus Mode Manual/Automatic
Electric Focusing Support
Electric Zooming Support
Digital
Power Supply Range 5-24V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C ＜2.4W
Digital Video LVCMOS/LVDS/BT.1120/SDI
Communication Interface RS-232/RS-485
Weight 102.7g (without lens)
Size 45mm×45mm
Network Type
Power Supply Range 9-15V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C ＜3.0W
Communication Interface One RJ45 10M/100M adaptive Ethernet port, one RS-485
Alarm Interface One alarm input, one alarm output
Audio Interface One audio input, one audio output
Weight 180.9g (without lens)
Size 45mm×45mm
Environment Adaptability
Operating Temperature -40℃～+60℃
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoSH2.0

Application Scenarios

  • Perimeter Surveillance
  • Forest Fire Prevention
  • Industrial Temperature Measurement
  • Security Monitoring
