Turing M1280 Uncooled Infrared Module (Temperature Measurement)

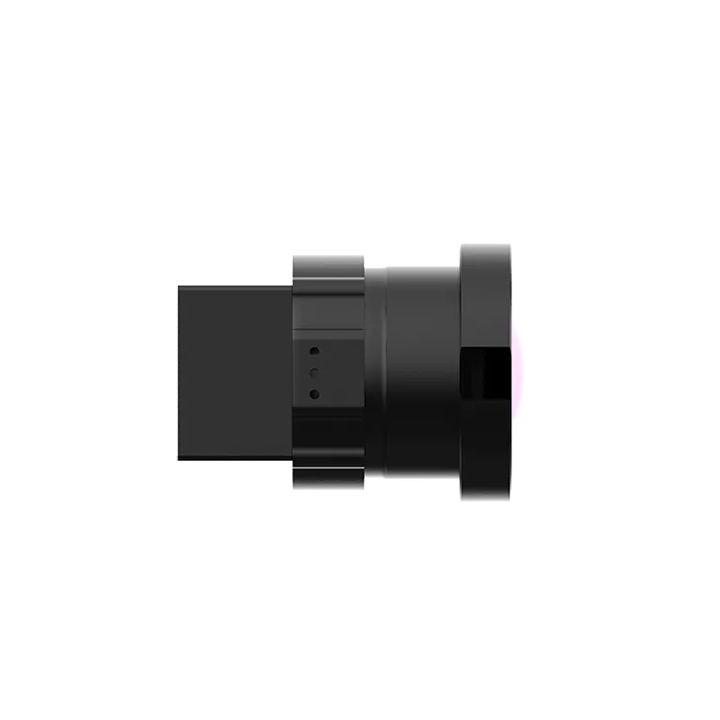

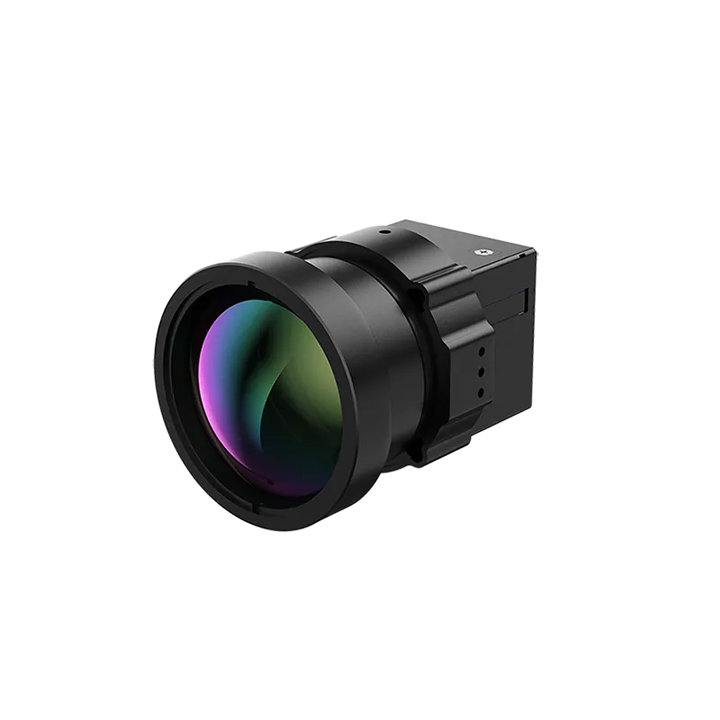

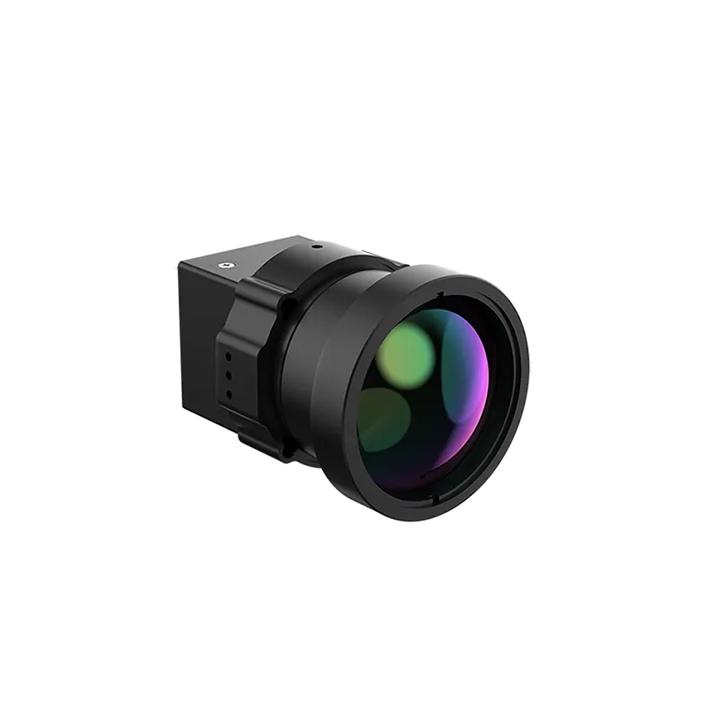

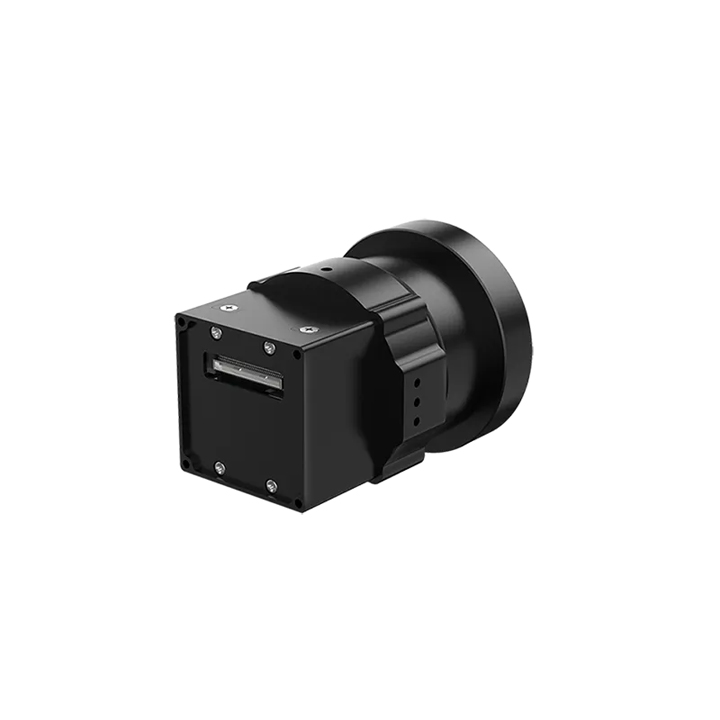

A new generation of module components created for experienced users is the Turing M1280 uncooled infrared module. We are in the lead since the employment of self-developed detectors has significantly advanced lightweighting and shrinking. With the benefit of 1280 wide array imaging, the device weighs only 24.5g and measures only 29mm x 29mm. It is the ideal option for fulfilling the requirements for lightweight development when accompanied by a qualified development team.

Categories: ,
Description

Feature

1. Cutting-Edge Imaging Technology

  • 1,280×1,024 ultra-high resolution infrared detection
  • Advanced 12μm VOx microbolometer core technology
  • Compact 29×29mm industrial design (24.5g weight)
  • Superior thermal sensitivity (<40mK @f/1.0)

2. Unparalleled Image Quality

  • Mega-pixel precision reveals critical thermal details
  • Intelligent image enhancement algorithms:
    • Adaptive dynamic range optimization
    • Real-time digital detail enhancement
    • Advanced noise reduction technology
  • Instant target acquisition for efficient monitoring

3. Flexible Configuration Options

  • Comprehensive lens selection:
    • Wide-angle (45°) for area surveillance
    • Standard (25°) for general inspection
    • Telephoto (12°) for long-range detection
  • Professional consultation services:
    • Application-specific configuration guidance
    • Quick deployment solutions
    • Customized optical solutions

4. Industrial-Grade Performance

  • Precision temperature measurement capability
  • Robust mechanical design:
    • Vibration and shock resistant
    • Wide operating temperature range (-40°C to +70°C)
    • IP54 environmental protection
  • Continuous 24/7 operation reliability

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 1280×1024
Detector Frame Rate 30Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25℃,F#1.0
Image Adjustment
Brightness/Contrast Adjustment Manual/Automatic/Linear
Polarity Black-hot/White-hot
Palette Support
Image Processing TEC-less temperature control algorithm, digital filtering noise reduction, and digital detail enhancement.
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 4.0~5.5VDC, 4.1~5.5V DC supported by user extension components.
Typical Power Consumption at 25°C Without Extension 1w
Interface
Digital Video 14Bit or 8Bit LVCMOS/MIPI, CDS2
Extension Components USB3.0
Control Interface UART（3.3V）
Temperature Measurement Performance
Measurement Range Temperature measurement series: -20°C~+150°C, 100℃~+650°C
Measurement Accuracy @Ambient temperature of 15°C~35°C, Temperature measurement series: ±2°C or ±2% of reading (The greater shall prevail)
Measurement Tool Secondary analysis of points, lines, and areas
Physical Characteristics
Dimensions (Without lens and extension components) 29mm × 29 mm × 18.9mm
Weight (3.2mm, without extension components) 24.5g
Lens Model 10mm,35mm,50mm
Environment Adaptability
Operating Temperature -20°C~+60°C measurement
Storage Temperature -45℃～+85℃
Humidity 5~95%, non-condensing
Product Certification RoHS2.0

Application Scenarios

  • Industrial Temperature Measurement
  • Security Monitoring
  • UAV Pod
  • Machine Vision
