Turing M256 Uncooled Infrared Module

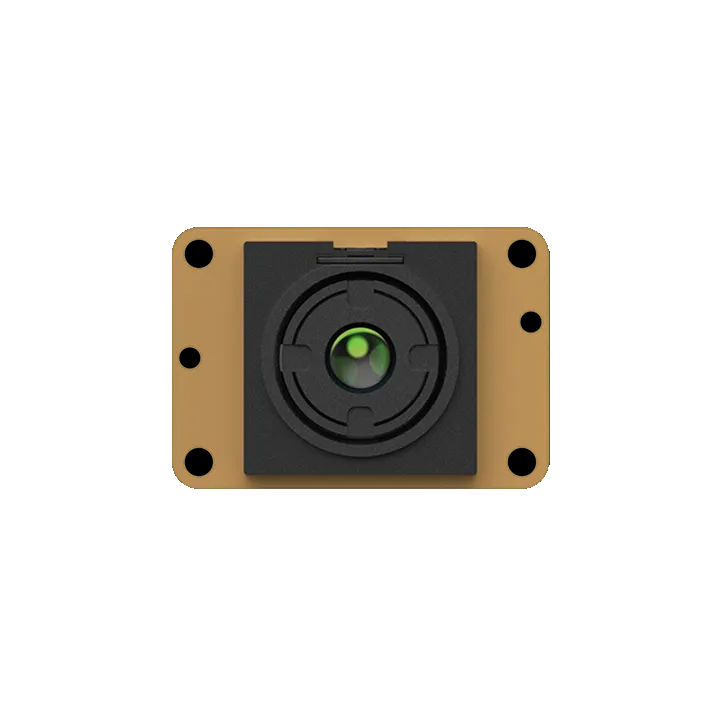

The Turing M256 uncooled infrared module utilizes an advanced 256×192 wafer detector, offering compact dimensions, lightweight design, and low power consumption while fully complying with SWaP³ requirements.

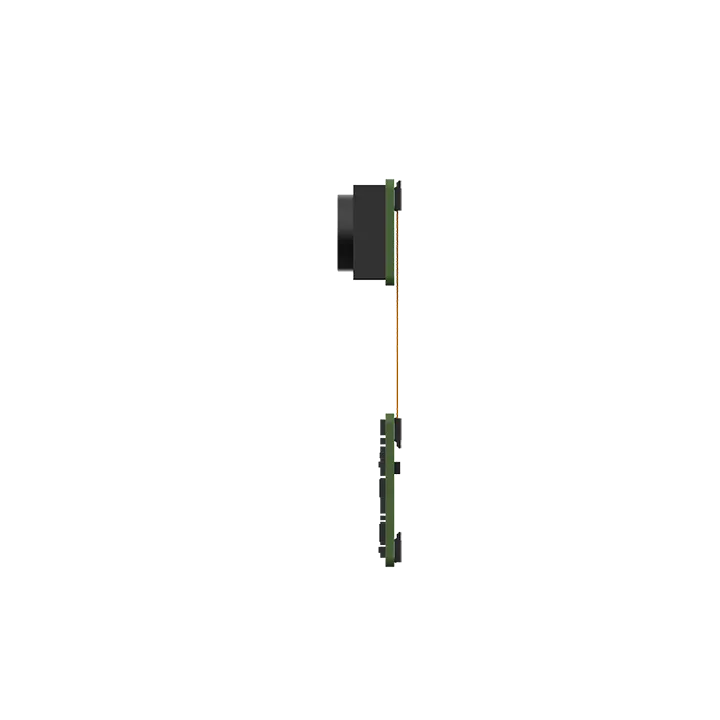

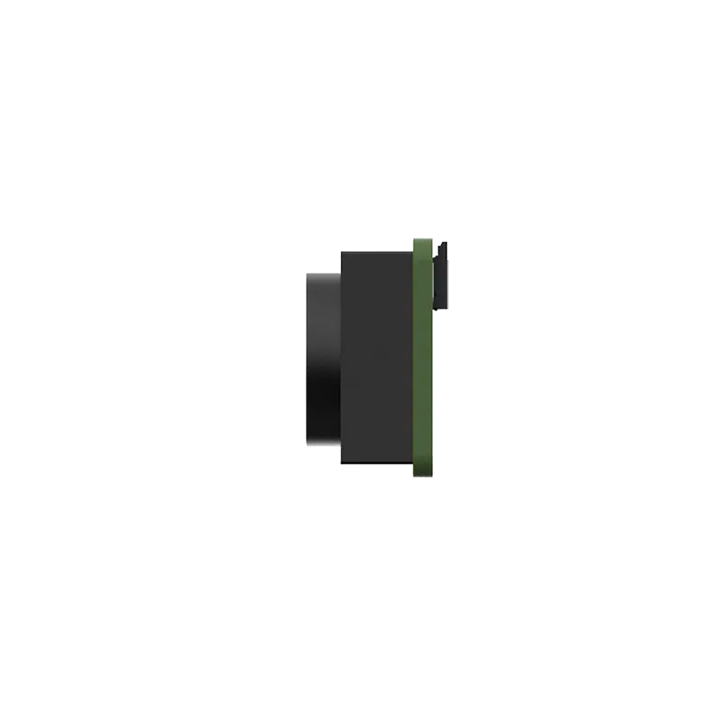

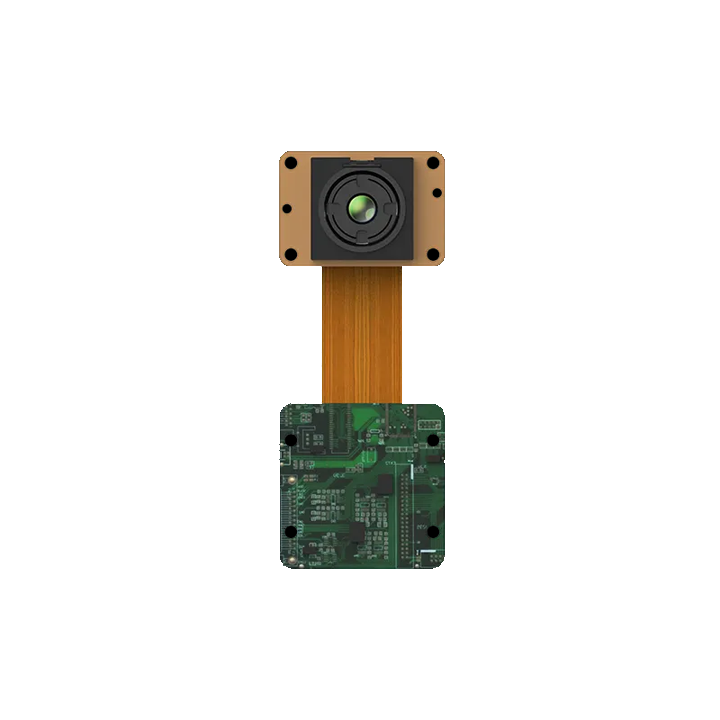

  • Split assembly design enables flexible deployment in diverse applications.
  • Comprehensive auxiliary tools support multiple ARM-based SOC platforms, ensuring seamless integration and ease of development.
  • Dual-output capability: Simultaneous thermal imaging and temperature data output.

Versatile compatibility: Works with lightweight infrared lenses and extension components.

Categories: ,
Description

Key Features

Cost-Effective Thermal Imaging Solution

  • Utilizes 256×192 wafer-level packaged (WLP) detector
  • Ultra-lightweight 3.5g module weight (with 3.2mm lens option)
  • Direct on-board sensor data processing – compatible with ARM-based SOC platforms

Simplified Development Process

  • Broad compatibility with mainstream embedded SOC platforms
  • Integrated ISP optimization for enhanced image quality
  • Comprehensive SDK with multiple development interfaces for accelerated customization

Configurable for Diverse Applications

  • Flexible FOV options (20°~90°) for various use cases
  • Multi-protocol support: DVP, MIPI, analog video interfaces
  • Modular split design enables easy integration across:
    • Consumer electronics
    • Smart devices
    • Security systems
    • Industrial applications

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 256×192
Detector Frame Rate 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK at 25°C (≤40mK, optional)
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot
Palette Multiple types support
Reticle Display/Blank/Move
Image Processing Digital filtering noise reduction, and digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8V~5.2V
Typical Power Consumption at 25°C Without Extension ≤0.35W
Interface
Digital Video CDS2/CDS3/LVCMOS
Serial Communication Interface UART
Extension Components Analog Video
Interface/Supporting
Direct Drive Solution Compatible with SOC platforms such as HIS13516, HIS13519, NT98528, AR9201, AR9341, and CV28M33
Temperature Measurement Performance
Measurement Range Temperature measurement series: -20℃～+550℃
Measurement Accuracy For measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C
Physical Characteristics
Dimensions (Without lens and extension components) 21×14.6mm
Weight (3.2mm, without extension components) ≤3.5g
Lens Model 2mm, 3.2mm, 7mm, 10mm, 13mm
Environment Adaptability
Operating Temperature -20℃～60℃
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS
