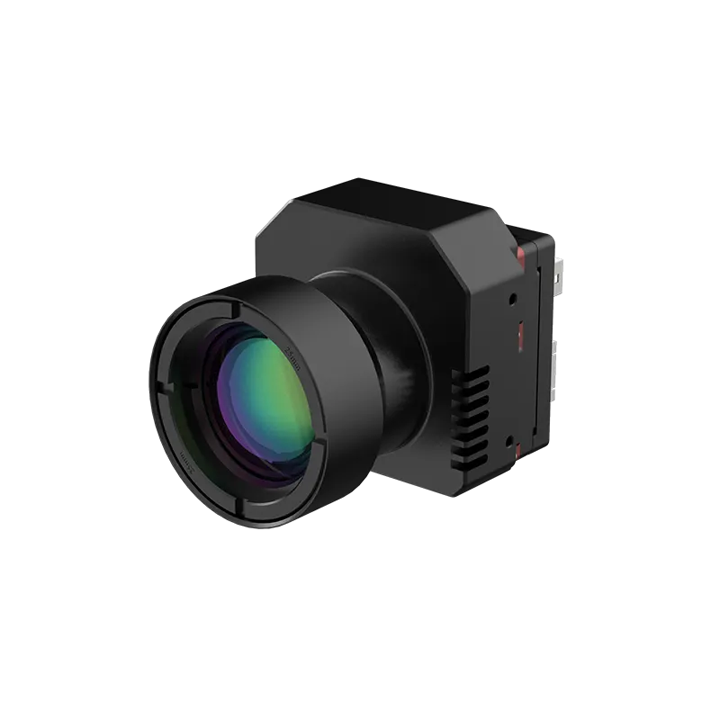

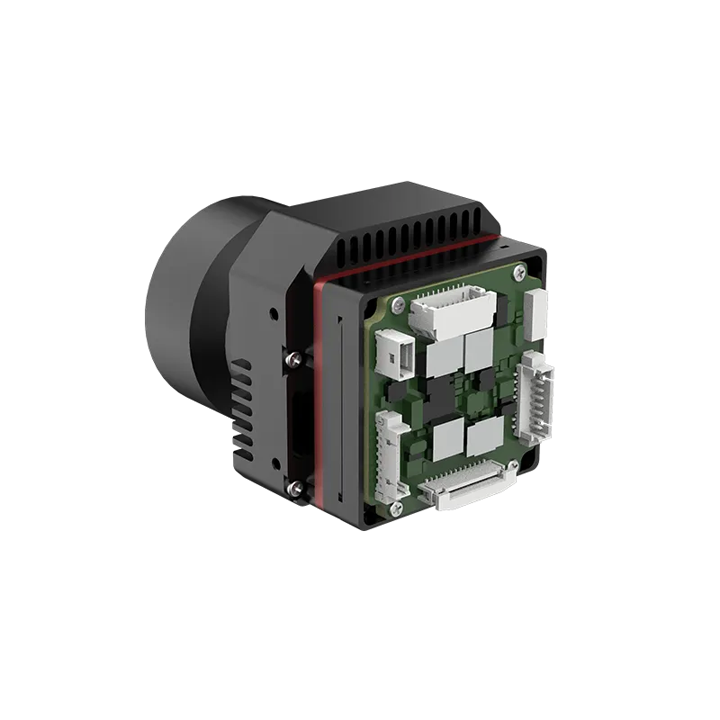

Turing M384 Uncooled Infrared Module (Temperature Measurement)

The Turing M384 Uncooled Infrared Module integrates a high-sensitivity VOx infrared detector, delivering exceptional thermal imaging performance with:

  • Ultra-responsive core architecture for reliable detection
  • Advanced image processing algorithms for superior clarity
  • High-precision temperature measurement with industry-leading accuracy

Versatile Application Scenarios:
• Security & Surveillance – Enhanced night vision and intrusion detection
• Industrial Thermal Monitoring – Non-contact equipment diagnostics
• Wildfire Prevention – Early detection in forestry and grasslands
• Railway Safety – Track inspection and onboard systems

Categories: ,
Description

Feature Highlights

1. Multi-Scenario Precision

  • Wide FOV Range: 10°~62° – Optimized for both long-range monitoring and close-field detection.
  • Digital & Network-Ready – Seamless integration into IoT systems, edge devices, and cloud-based platforms.

2. Unmatched Measurement Accuracy

  • Industry-Leading Precision (±2°C) across an ultra-wide -20°C to +650°C measurement range.
  • Smart Thermal Calibration – Automatic compensation for target distance ensures reliable data in dynamic environments.
  • Full Array Temperature Output – Raw thermal data for advanced analytics and AI-driven processing.

3. Developer-Friendly Integration

  • Flexible Video Outputs: Standard + extended interfaces including BT.601, BT.1120, USB 3.0, HDMI, and SDI (customizable options).
  • Powerful SDK Suite – Streamlined APIs and documentation reduce development time by >30%, slashing project costs.

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 384×288
Detector Frame Rate 50Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤40mK at 25℃, F#1.0
Image Adjustment
Palette Support (20 types)
Digital Zoom 1.0~8.0× continuous zoom (step size: 0.1)
Image Processing Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment
Mirroring Horizontal/Vertical/Diagonal
Network Function
Network Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.
Platform Access Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.
Simultaneous Previewed Videos Up to 8 channels
User Management Up to 20 users, 3 levels: administrator, operator and user
Browser Google, Firefox, Edge, etc.
Intelligent Functions
Intelligent Video Support
Intelligent Alarm Support abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, and illegal access
Intelligent Detection Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.
Alarm Linkage Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output
Lens
Lens Type Athermalized/Prime electric focus
Focus Mode Manual/Automatic
Electric Focusing Support
Electric Zooming /
Digital
Power Supply Range 12V DC ±10%
Typical Power Consumption at 25°C ＜1.5w
Digital Video LVCMOS/BT.601/BT.1120
Communication Interface RS-232/UART
Network Type
Power Supply Range 9-15V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C ＜2.4w (Typical, @25°C)
Communication Interface One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART
Alarm Interface 1-channel alarm input, 1-channel alarm output
Audio Interface 1-channel audio input, 1-channel audio output
Interface
Analog Video 1-channel PAL system
Environment Adaptability
Operating Temperature -40℃～+70℃
Storage Temperature -45℃～+85℃
Humidity 5-95%, non-condensing
Product Certification RoHS2.0
PTZ Function
Fire Warning Supports fire point detection.
Thermal Imaging
Measurement Range -20℃~﹢150℃, 0℃~﹢650℃
Measurement Accuracy ±2°C or 2% (The greater shall prevail)at ambient temperature -20°C ~ +60°C

Application Scenarios

  • Railway Inspection
  • Industrial Temperature Measurement
  • Security Monitoring
  • Fire Rescue
