Infrared and Low-luminous fusion Modules
Back to products
Image Processing Module

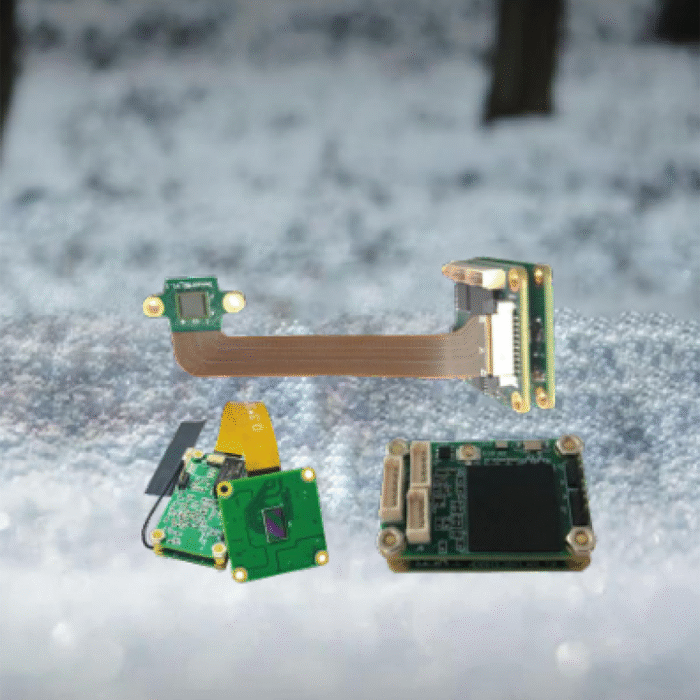

Video Image Acquisition/Transmission/Processing Component

Covers high resolution imaging, high frame rate imaging, low illumination imaging, optical galvanometer imaging and FOD optical detection system. Products can beapplied to individual portable, vehicle-assisted driving, airborne pods, ship-borne monitoring, perimeter security, machine vision and scientific imaging and other related fields.

Categories: ,
Description

Video Image Acquisition/Transmission/Processing Component Features

It can adapt to different environments, different product needs.

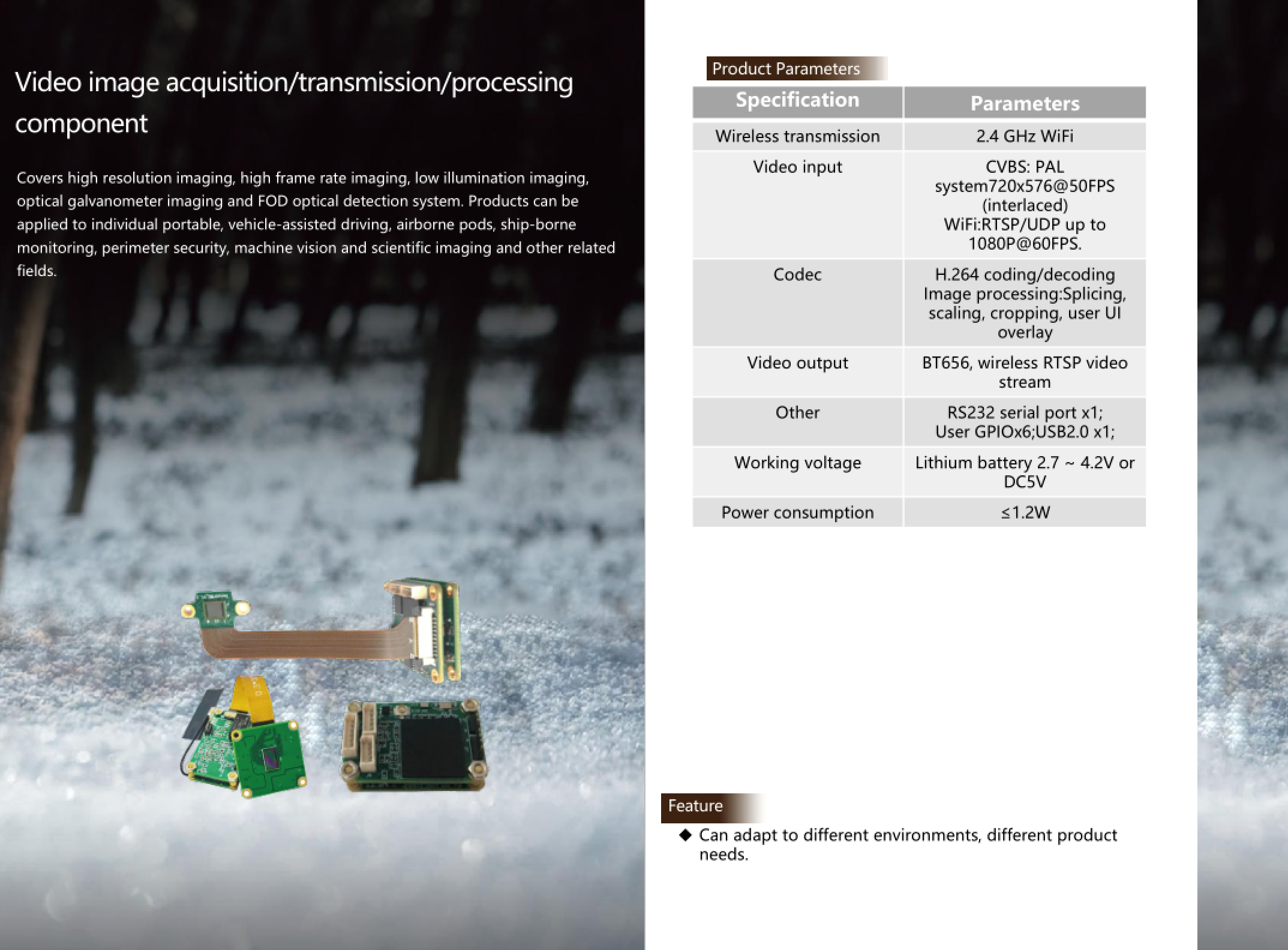

Video Image Acquisition/Transmission/Processing Component Parameters

Specification Parameters
Wireless transmission 2.4 GHz WiFi
Video input CVBS: PALsystem720x576@50FPS(interlaced)WiFi:RTSP/UDP up to1080P@60FPS
Codec H.264 coding/decodingImage processing:Splicingscaling, cropping, user Uloverlay
Video output BT656,wireless RTSP video stream
Other RS232 serial port x1;User GPlOx6;USB2.0 x1;
Working voltage Lithium battery 2.7~4.2V orDC5V
Power consumption ≤1.2W

Video Image Acquisition/Transmission/Processing Component
