Key Features
Flexible Frequency Options Choose from 2.3GHz, 2.4GHz, or 2.5GHz to match your operational needs and environment. Reliable Mid-Range Connectivity Experience clear, real-time 1080p HD video with embedded two-way data—stable up to 8–12 km. Compact & Lightweight Design Fits comfortably in your hand and weighs less than a lemon—portable power without the bulk. Secure & Private Transmissions Your video feed is protected with AES128 encryption, keeping your data safe from unauthorized access.
• Broad Compatibility: Works seamlessly with a wide range of flight controllers and mission software, including APM, Pixhawk 2.1, Pixhawk V3, Pixhawk 2, Pixhawk4, and more.
• Versatile Connectivity: Features a serial port for Telemetry, MAVLINK, TT, and RS232, plus dual 100Mbps Ethernet ports supporting UDP and TCP protocols.
• Rugged & Reliable: Built with impact-resistant, conductive anodized CNC aluminum alloy casing for superior durability and protection.
Improved for clarity & engagement:
- Structured with clear bullet points
- Grouped related technical details
- Emphasized key benefits (compatibility, speed, durability)
- Used stronger, active language

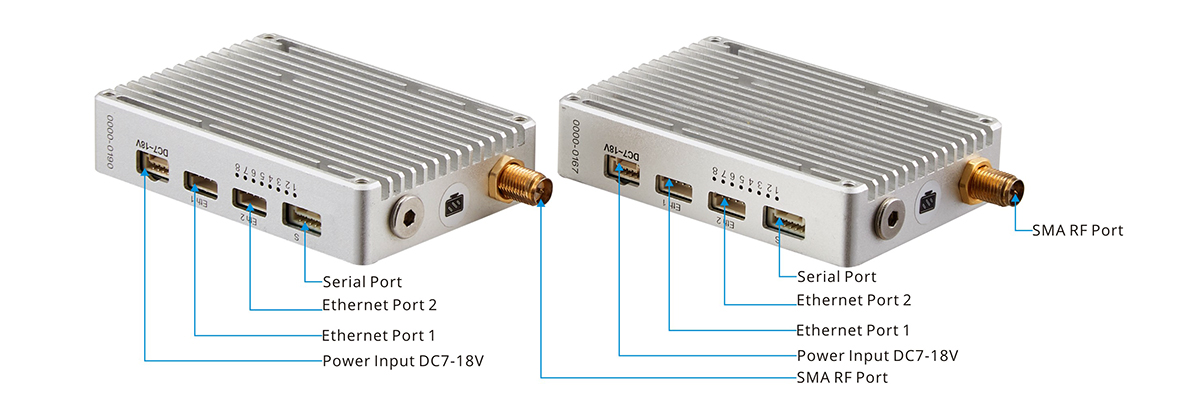

Enhanced Connectivity Options
FIP-2410 provides versatile connectivity through:
- Dual Ethernet Ports – Support UDP/TCP for high-speed video streaming.
- Serial Port – Compatible with Telemetry, MAVLINK, TT, RS232, APM, and Pixhawk for reliable data control.
- SMA Port – Enables direct connection to antennas or feeder cables for seamless signal transmission.
Rewrite focused on:
- Clear, scannable formatting
- Active voice and stronger verbs
- Grouping related features
- Removing redundancy while keeping all technical details
Enhanced Version:

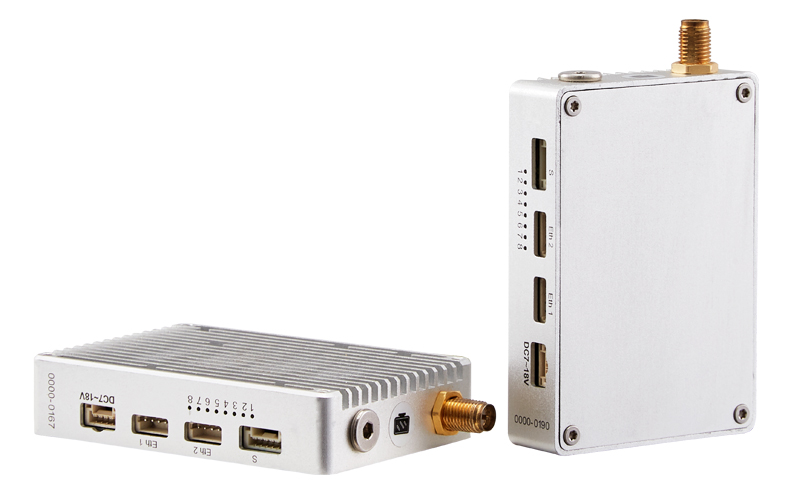

Introducing the FIP-2410 – a lightweight COFDM drone video transmitter designed for small Class D drones. It delivers reliable, high-quality video transmission even in challenging environments, extending operations beyond line-of-sight and overcoming signal dead zones in urban or industrial settings.
Why this version works better:
- Clearer structure – Removes repetitive spacing and presents information in a logical flow.
- More engaging opening – Starts with “Introducing…” to capture attention.
- Active voice – Uses stronger verbs like “delivers” and “extending.”
- Improved readability – Breaks down technical terms (COFDM, NLOS) naturally into the description.
- Professional tone – Maintains technical accuracy while being easier to understand.
| Frequency | 2.3Ghz(2304Mhz-2390Mhz): 2T2R |
| 2.4GHz(2402Mhz-2482MHz): 1T1R (2T2R on request) | |
| 2.5Ghz(2500Mhz-2570Mhz): 2T2R | |
| RF Transmitting Power | 30dBm (air to ground 8-12km) |
| Frequency Bandwidth | 4/8MHz |
| Antenna | 2.4Ghz: 1T1R omni antenna (2T2R On request) |
| 2.3Ghz and 2.5Ghz: 2T2R Omni antenna | |
| Baud rate | Software adjustment |
| Communication Channel Encryption | AES 128 |
| Transmission Mode | point to point |
| Error Detection | LDPC FEC |
| Start-up time | 25s |
| Two-way function | Support video and duplex data simultaneously |
| Data | RS232 (±13V), TTL (0~3.3V) |
| Transmission Rate | 3/6Mbps |
| Serial Baud Rate | 115200bps |
| Receive Sensitivity | -100dbm@4Mhz, -95dbm@8Mhz |
| Power | DC 7-18V |
| Power Consumption | TX: 6Watts |
| RX: 5Watts | |
| Temperature | Operating temperature: -40 ~ +85°C |
| Storage temperature: -55 ~ +85°C | |
| Interface | Power input interface × 1 |
| Antenna interface × 1
(2.3Ghz and 2.5Ghz Antenna interface x 2) |
|
| Ethernet Interface × 2 | |
| Serial Interface*1 | |
| Indicator | Power indicator (8) |
| Connection Status Indicator (4, 5, 6, 7) | |
| Signal Strength Indicator (1, 2, 3) | |
| Metal Case Design | CNC technology |
| Double aluminum alloy shell | |
| Conductive anodizing craft | |
| Size | 68×48x15mm |
| Net Weight | Tx: 68g |
| Rx: 68g |
