Key Features
Universal Compatibility Seamlessly connect with APM, Pixhawk 2.1, Pixhawk V3, Pixhawk 2, and Pixhawk 4 via serial port. Crystal-Clear Live Video Stream full 1080P HD video in real time with an embedded bi-directional data link. Compact & Lightweight Design Weighing just 68 grams, it’s mini-sized and super lightweight for easy integration. Secure & Encrypted Transmission Your video feed is protected with AES128 encryption, ensuring no unauthorized access. High-Performance Transmission Enjoy a transmit rate of 3 Mbps with 4 MHz bandwidth for reliable, high-speed data transfer. Flexible Antenna Connection Directly connect antennas or feeder cables using the SMA port interface. Versatile Serial Connectivity One serial port supports Telemetry, MAVLINK, TT, and RS232 protocols. Dual Ethernet Ports Two 10/100 Mbps Ethernet ports support UDP and TCP for robust network communication. Durable & Resilient Build Crafted with conductive anodized aluminum alloy using CNC technology, the double-shell design offers excellent impact resistance. — Let me know if you’d like this tailored for a spec sheet, product webpage, or marketing brochure!
Enhanced Connectivity Options FIP-2405 is equipped with dual 10/100 Mbps Ethernet ports for reliable video streaming over UDP/TCP protocols, plus a versatile serial port that supports Telemetry, MAVLINK, TT, RS232, APM, and Pixhawk—providing a dedicated data control channel for seamless integration.
Enhanced Version:

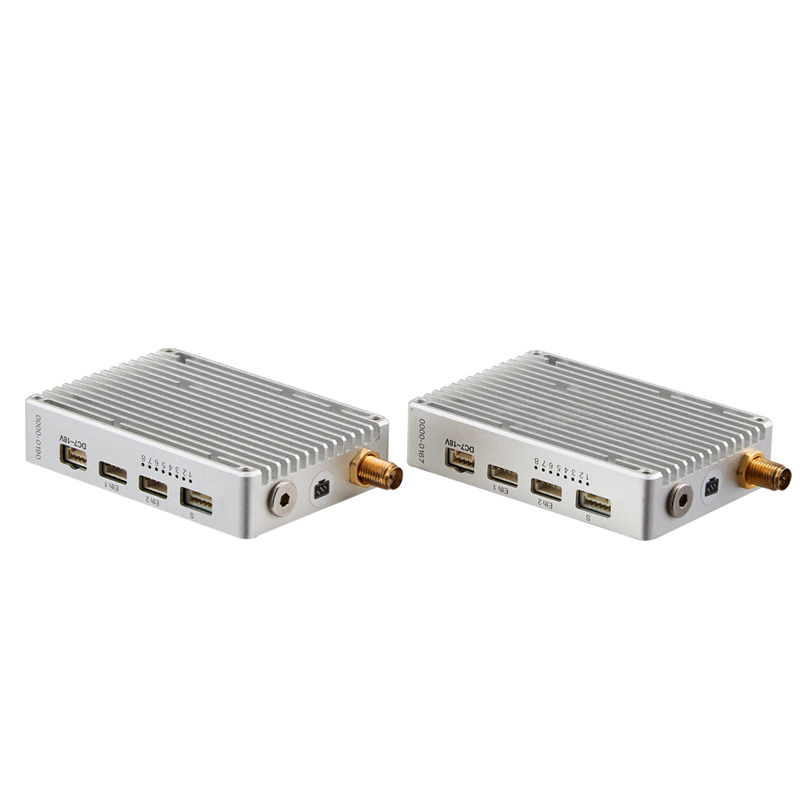

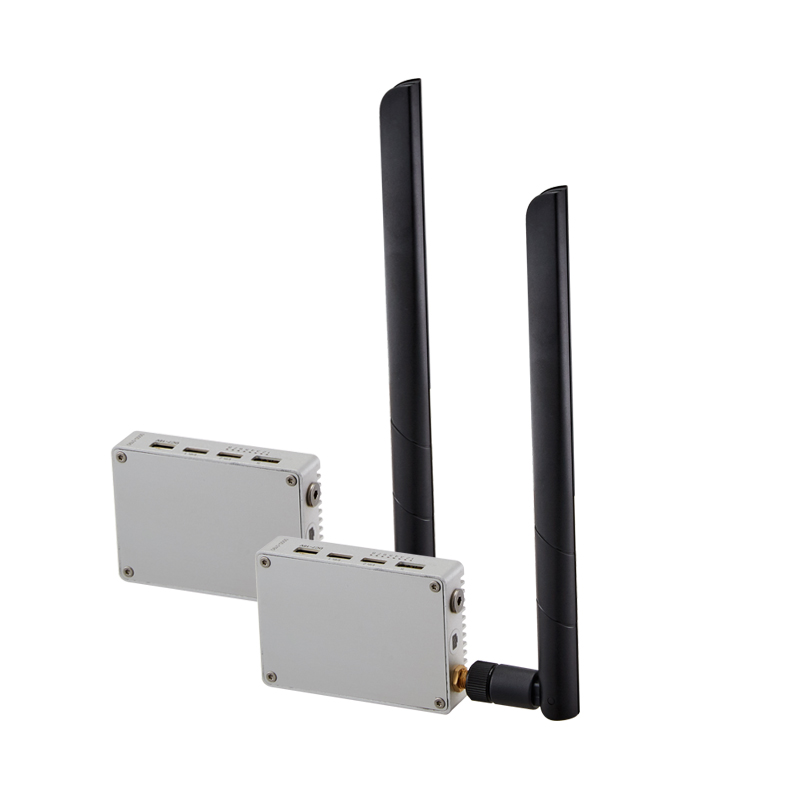

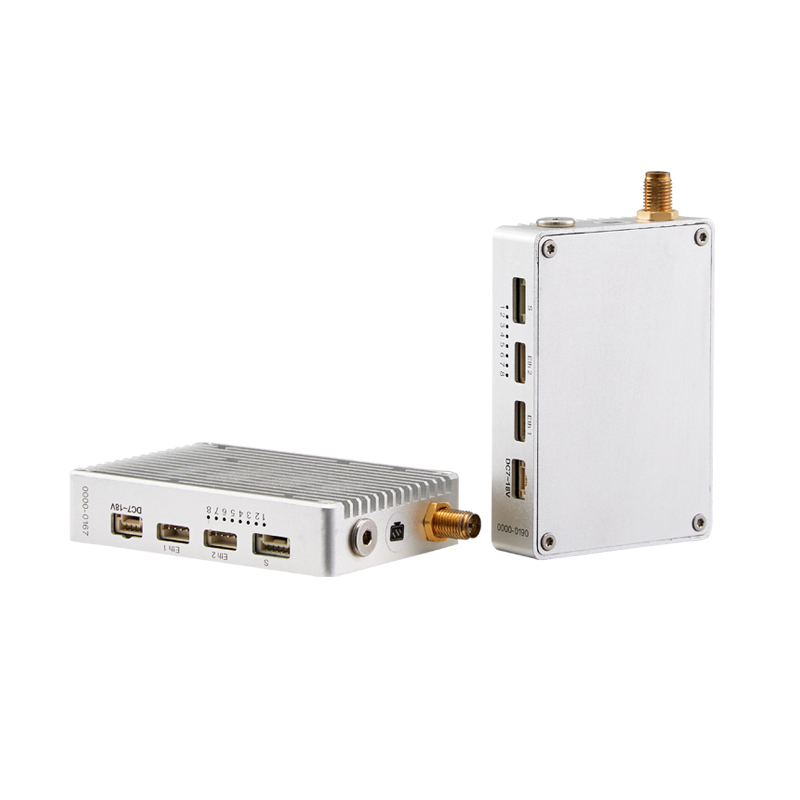

FIP-2405 is a lightweight COFDM drone video transmitter designed for small Class D drones. It delivers robust, high-quality video transmission while maintaining a superlight build—ideal for applications where every gram counts.
This system also serves as a reliable, low-cost, bi-directional data link for line-of-sight (LOS) drone operations, making it a versatile choice for both video and command communication.
Why this version works better:
- Clearer structure – Separates the video and data link functions into distinct points.
- Active voice – Uses stronger verbs like “delivers” and “serves.”
- More engaging phrasing – “Ideal for applications where every gram counts” adds context and relatability.
- Defined acronyms – “LOS” is spelled out as “line-of-sight” for clarity.
- Professional yet approachable tone – Remains technical but easier to read and understand.
Let me know if you’d like a shorter tagline version or one tailored for a specific audience.
| Frequency | 2.4GHz(2402Mhz-2482MHz) |
| RF Transmitting Power | 27dBm(air to ground 4-6km) |
| Frequency Bandwidth | 4MHz |
| Antenna | 1T1R, omni-directional antenna |
| Adjustment mode of bit rate | Software adjustment |
| Communication Channel Encryption | AES 128bit |
| Transmission Mode | point to point |
| Error Detection | LDPC FEC |
| Start-up time | 25s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support TTL |
| Date Rate | 3Mbps |
| Sensitivity | -100dbm@4Mhz |
| Power | DC 7-18V (DC12V Suggested) |
| Power Consumption | TX: 4Watts |
| RX: 4Watts | |
| Temperature | Operating temperature: -40 – +85°C |
| Storage temperature: -55 – +85°C | |
| Interface | Power input interface×1 |
| Antenna interface×1 | |
| Serial port×1 | |
| Ethernet to RJ45 ×2 | |
| Indicator | Power indicator(8) |
| Connection Status Indicator(4, 5, 6, 7) | |
| Signal Strength Indicator(1, 2, 3) | |
| Metal Case Design | CNC Technology |
| Double Aluminum Alloy Shell | |
| Conductive anodizing craft | |
| Size | 67.5×47.5×14.8mm |
| Net Weight | Tx: 68g / Rx: 68g |
