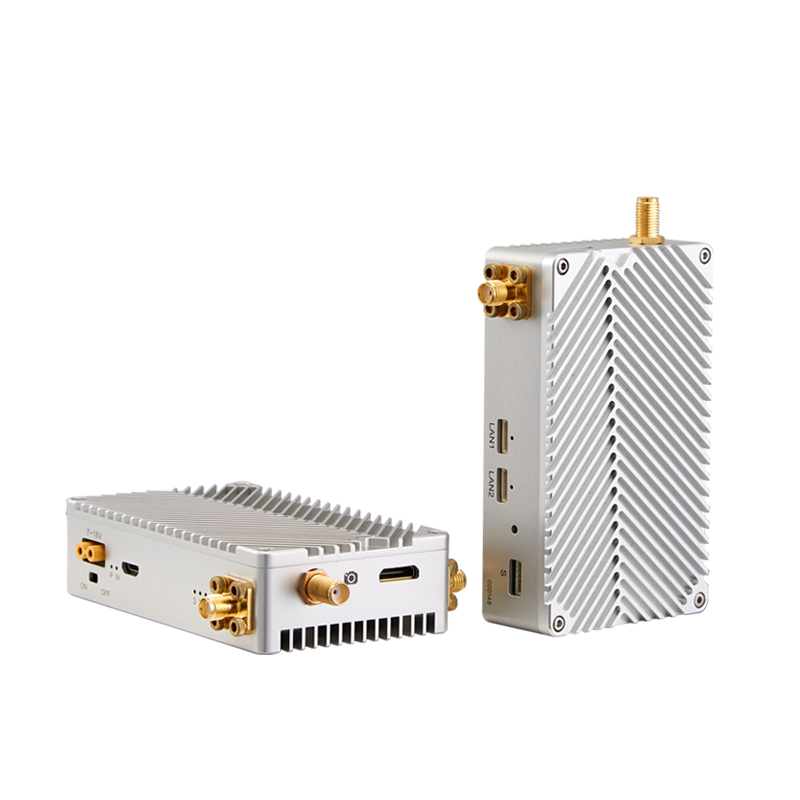

China Moneypro 16km Long Range SDI HDMI Full HD Digital Image Transmission System with Mavlink Telemetry

Introducing the FPM-8416S Digital Image Transmission System

Experience crystal-clear, long-range aerial video with the FPM-8416S—a full HD UAV video link engineered for reliability and performance. Built on advanced COFDM technology, it delivers seamless video transmission up to 14–16 km.

Key Features:

  • High-Definition, Low-Latency Video
    Stream 1080P at 30fps with just 80ms latency, or 720P at 60fps with 50ms latency—ideal for real-time piloting and mission control.
  • Superior Signal Integrity
    Equipped with IWAVE FHSS technology to minimize interference, ensuring a stable and clear video feed even in challenging environments.
  • Dedicated Frequency Bands
    Operates on UHF 800MHz and 1.4GHz bands to avoid crowded 2.4GHz spectrum, providing a cleaner, more reliable connection.
  • Integrated Data Transmission
    Send both video and flight control data simultaneously over the same link, with full compatibility with Pixhawk, Mission Planner, and QGroundControl.
  • Compact & Optimized for UAVs
    The air unit weighs only 130g (4.6oz), featuring a compact form factor and enhanced heat dissipation designed specifically for drones and unmanned systems.

Built for professionals who demand clarity, range, and reliability—the FPM-8416S keeps you connected when it matters most.

Category:
Description
Key Features at a Glance

High-Definition Video Transmission

  • HDMI and SDI inputs/outputs for professional-grade connectivity
  • Stream 1080p video at 60fps with ultra-low latency (<80ms)
  • Supports both H.264 and H.265 compression for efficient, high-quality streaming

Exceptional Long-Range Performance

  • Reach up to 16km with 800MHz or 14km with 1.4GHz frequency bands
  • Operates outside crowded 2.4GHz spectrum to minimize interference
  • COFDM technology ensures stable, reliable transmission even over long distances

Advanced Anti-Interference & Security

  • FHSS (Frequency-Hopping Spread Spectrum) dynamically switches frequencies for optimal signal clarity
  • AES128 encryption protects your video feed from unauthorized access
  • Receiving diversity with dynamic antenna switching maintains strong, consistent connections

Integrated Drone Control & Data

  • Two bidirectional serial ports for MAVLINK telemetry and drone control via Mission Planner or QGroundControl
  • 100Mbps Ethernet port for high-speed TCP/IP/UDP data transmission

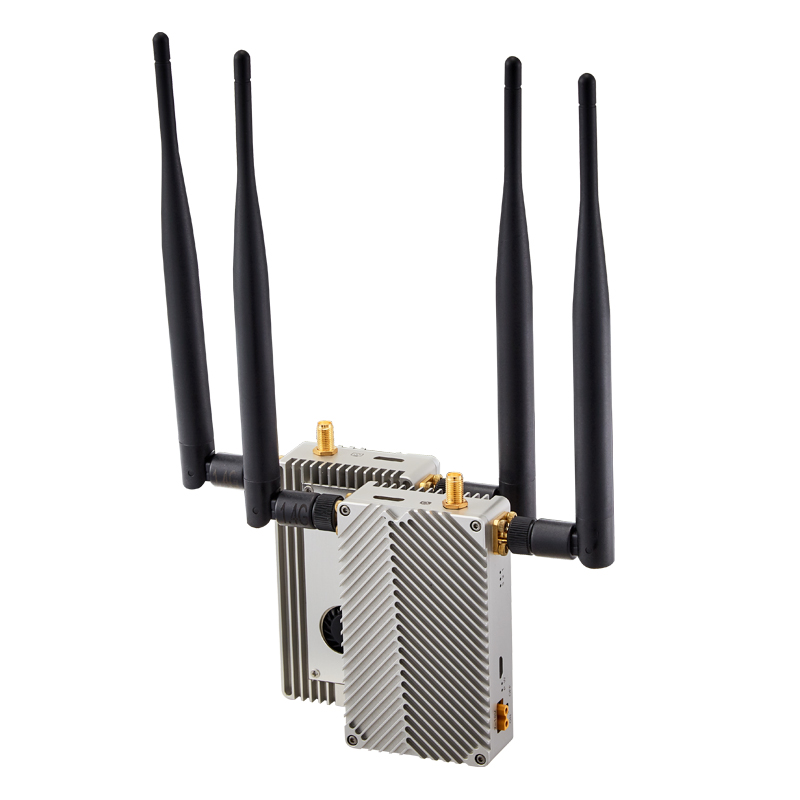

  • Includes omnidirectional antennas for both air and ground units

Engineered for Reliability

  • Experience minimal latency: under 50ms at 720p/60fps
  • Designed specifically to overcome multi-path interference in challenging environments
  • Maintain full remote control capabilities while streaming live video from your drone

Designed for professionals who demand crystal-clear video, unwavering signal stability, and complete data security—no matter the distance or environment.



drone camera transmitter and receiver




Enhanced Version:

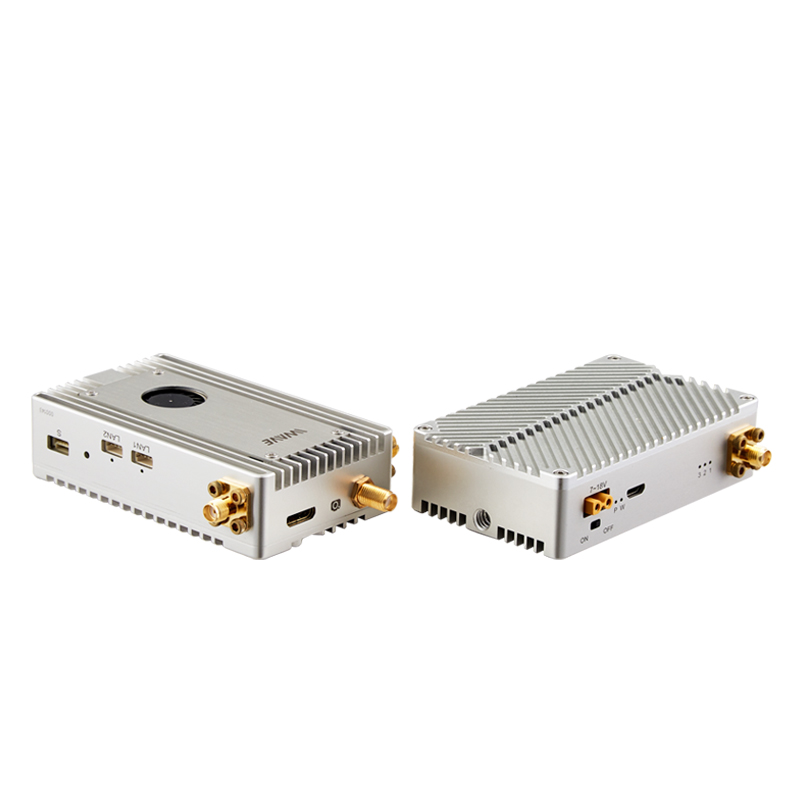

The FPM-8416S digital drone video link offers versatile connectivity with multiple ports, allowing you to stream high-definition video and control your drone simultaneously. It features:

  • An HDMI port
  • An SDI port
  • Two LAN ports
  • One bi-directional serial port

With these connections, you can seamlessly receive full HD video while maintaining flight control through Pixhawk—all at the same time.

Why this version works better:

  • Clearer Structure: Bullet points make the ports easy to scan.
  • Active Voice: More direct and engaging (e.g., “offers versatile connectivity”).
  • Improved Flow: The purpose is stated upfront, followed by specifics.
  • Stronger Opening: Starts with a benefit-focused statement.
  • Polished Wording: Uses terms like “seamlessly” and “maintaining flight control” for a professional tone.

Let me know if you’d like a shorter or more technical version!

FPM-8416S uav video link Ports


Application

16km Universal Drone Transmitter



Wireless drone video transmitters are the “eyes” of the drone pilot, enabling live HD video transmission for rapid response in critical applications such as intelligence, surveillance, and reconnaissance. Beyond that, COFDM video transmitters for UAVs also play a vital role in process industries and mining, drone delivery, infrastructure inspections, and first responder operations—empowering faster, more efficient decision-making.

Frequency
800Mhz 806~826 MHz
1.4Ghz 1428~1448 MHz
Bandwidth 8MHz
RF Power 0.6watt
Transmit Range 800Mhz: 16km1400Mhz: 14km
Antenna  800Mhz TX: Omni Antenna/25cm Length/ 2dbi
RX: Omni Antenna/60cm Length/6dbi
1.4Ghz TX: Omni Antenna/35cm Length/3.5dbi
RX: Omni Antenna/60cm Length/5dbi
Transmit Rate 3Mbps (HDMI or SDI Video Stream, Ethernet Signal and serial data share)
Baud Rate 115200bps(Adjustable)
Sensitivity -106@4Mhz
Wireless Fault Tolerance Algorithm Wireless baseband FEC forward error correction/ video codec super error correction
End to End Latency Latency for encoding + transmission + decoding720P/60
Link Rebuild Time
Modulation Uplink QPSK/Downlink QPSK
Video Compression H.264
Video Color Space 4:2:0 (Option 4:2:2)
Encryption AES128
Start Time 15s
Power DC12V (7～18V)
Interface Interfaces on Tx and Rx are same
●Video input/Output: Mini HDMI×1
●Video input/Output: SDI(SMA)×1
●Power Input Interface×1
●Antenna Interface: SMA×2
●Serial×1: (Voltage:+-13V(RS232), 0~3.3V(TTL)
●Ethernet: 100Mbps x 3
Indicators ●Power
●Wireless Connection
●Setup Indicator
Power Consumption Tx: 9W(Max)
Rx: 6W
Temperature ●Working: -40 ~+ 85℃
●Storage: -55 ~+100℃
Dimension Tx/Rx: 93 x 55.5 x 23.5 mm
Weight Tx/Rx: 130g
Metal Case Design CNC technology/double aluminum alloy shell
  Double Aluminum Alloy Shell
  Conductive anodizing craft
