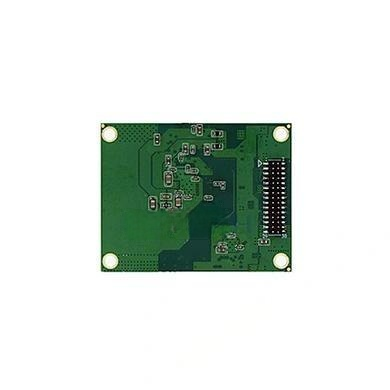

Revolutionizing Detection: The MOP-MWRS Multi-Channel Millimeter Wave Radar Sensor
nnIn an era where precision, reliability, and adaptability define technological success, the MOP-MWRS Multi-Channel Millimeter Wave Radar Sensor emerges as a game-changer. Engineered by MOP Tech, this advanced sensor harnesses the power of 76–81 GHz frequency band technology, delivering a substantial 5 GHz of available bandwidth. This combination ensures exceptional detection accuracy and robust anti-interference capabilities, making it a cornerstone for modern sensing applications. Whether in autonomous driving, industrial automation, or smart security, the MOP-MWRS stands out as a highly integrated solution that simplifies complex radar design while amplifying performance.nn
The Power of Integration: Highly Integrated Design
nnAt the heart of the MOP-MWRS Multi-Channel Millimeter Wave Radar Sensor lies a remarkable engineering achievement: the integration of critical components into a single, compact unit. The system combines a phase-locked loop (PLL), transmitter, receiver, baseband, and analog-to-digital converter (ADC) on a single chip. This highly integrated approach reduces external component count, minimizes signal loss, and enhances overall reliability. As a result, the sensor excels in diverse environments—from dusty industrial floors to rain-soaked highways—where traditional sensors might struggle with interference or maintenance.nn
Unmatched Channel Architecture for Superior Detection
nnThe MOP-MWRS is equipped with 4 receiving channels and 3 transmitting channels, supporting Time Division Duplex (TDD) Multiple Input Multiple Output (MIMO) working mode. This configuration enables simultaneous multi-target detection and high-resolution imaging, a critical requirement for complex scenarios like traffic flow monitoring or drone navigation. The sensor’s ability to process multiple objects at once without latency positions it as an ideal choice for applications where split-second decisions are paramount.nn
Formidable Processing Capabilities: Cortex-R4F and C674X DSP
nnSignal processing lies at the core of any radar system, and the MOP-MWRS excels with a dual-processor architecture. The built-in Cortex-R4F microcontroller handles real-time control and data management, while the C674X digital signal processor (DSP) accelerates radar signal processing with high efficiency. Together, they ensure rapid data analysis, agile responses, and seamless integration into larger systems. This pairing is particularly beneficial for multi-channel applications, where heavy data loads demand both speed and accuracy.nn
MOP-MWRS Multi-Channel Millimeter Wave Radar Sensor: Key Specifications
nnThe following table outlines the core technical parameters that define the MOP-MWRS, ensuring that engineers and developers have access to precise, actionable data for design and deployment.nn
| Parameter | Value |
|---|---|
| Frequency Bandwidth | 76–81 GHz coverage with 5 GHz available |
| Integrated Components | PLL, transmitter, receiver, baseband, ADC |
| Number of Channels per Chirp | 4 receiver channels, 3 transmit channels |
| Transmit Power | 12 dBm |
| Receive Noise Figure | 14~15 dB |
| Phase Noise at 1 MHz | -95 to -93 dBc/Hz |
| On-Chip Memory | 2 MB |
| Working Mode | TDD (MIMO) |
| Clock Frequency | 40 MHz |
| Microcontroller | Cortex-R4F |
| Signal Processing | C674X DSP |
| Host Interface | CAN and CAN-FD |
| Other Interfaces | ADC channels, SPI, UARTs, I2C, GPIO, LVDS |
| Input Voltage | DC +3.3/1.8 V |
| Extensibility | Supports dual- or quad-chip cascaded FMCW radar for LRR, MRR, SRR |
| Working Temperature | -40°C to +125°C |
| Storage Temperature | -55°C to +70°C |
nn
Applications Across Industries
nnThe versatility of the MOP-MWRS Multi-Channel Millimeter Wave Radar Sensor extends far beyond theoretical specifications. Its high reliability and flexibility make it a preferred component in intelligent transportation, where it powers vehicle collision avoidance systems and blind spot monitoring. In autonomous driving, the sensor enables lane-keeping, adaptive cruise control, and pedestrian detection with unparalleled accuracy. Industrial automation benefits from its ability to monitor machinery, detect obstacles, and manage inventory in real time. Security monitoring applications leverage its high-resolution imaging for perimeter surveillance, while drone navigation relies on its robust performance in varying weather conditions. Even smart home devices, such as occupancy sensors and gesture recognition systems, benefit from the compact, efficient design of the MOP-MWRS.nn
Conclusion: A Future-Ready Radar Solution
nnThe MOP-MWRS Multi-Channel Millimeter Wave Radar Sensor represents a fusion of advanced hardware, powerful signal processing, and wide environmental adaptability. Its highly integrated design simplifies system development while delivering superior performance across long-range (LRR), medium-range (MRR), and short-range (SRR) radar applications. By providing a high-performance, scalable radar solution, MOP Tech has positioned the MOP-MWRS as a key component in driving the evolution of intelligent technology. For engineers and innovators seeking a reliable, accurate, and adaptable sensor, the MOP-MWRS stands ready to transform possibilities into reality. Embrace the future of detection with this multi-channel millimeter wave radar sensor—where precision meets integration.
