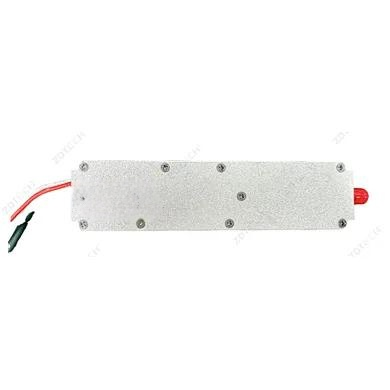

Unleashing Signal Potential with the 30W 420-6000MHZ PA Power Amplifier Module
nnIn the critical realm of signal processing, a robust and consistent power amplifier is the bedrock of reliable communication. The 30W 420-6000MHZ PA power amplifier module stands as a testament to engineering excellence, designed to safeguard and enhance your signal transmission with exceptional performance. Whether you are working on advanced communication systems, sophisticated scientific research, or high-stakes drone operations, this module delivers the power and precision you need. Its versatile nature makes it an indispensable asset for professionals seeking to elevate their signal integrity.nn
Understanding the 30W PA Module’s Core Specifications
nnThe 30W 420-6000MHZ PA boasts a wide operating frequency span from 420 to 6000 MHz, effortlessly navigating complex signal environments. This broad coverage ensures that it can adapt to a multitude of applications, from communication base stations to specialized research equipment. With a powerful output of 30W, and a peak output power reaching 45±0.5 dBm, signal amplification becomes not only efficient but also highly reliable. The module also supports power customization, allowing users to tailor the output to specific scenarios, whether greater power is needed or a more refined adjustment is required for delicate tasks.nnThe module’s gain of 40±1 dB, coupled with minimal in-band fluctuations, ensures stable and consistent signal transmission. Excellent spurious emission control guarantees signal purity, reducing interference and maintaining clarity. Designed to operate effectively within a temperature range of -10°C to +55°C, this PA module adapts to diverse environmental conditions. The SMA female external screw internal hole RF output interface simplifies connectivity, ensuring a secure and straightforward installation process.nn
Detailed Technical Parameters of the 30W 420-6000MHz PA Module
nnSelecting this PA power amplifier module means choosing a professional and reliable signal amplification solution. Its stable performance and flexible customization capabilities make it a top choice for engineers and technicians. Below is a comprehensive breakdown of its technical specifications, presented in a clear and structured format.nn
| Test Item | Indicator | Unit | Note |
|---|---|---|---|
| Frequency Range | 420-5850 | MHz | Customizable for clients |
| Operating Voltage | 28 | V | 28-32V |
| Maximum Output Power | 45±0.5 / 44±0.5 | dBm | 30W @ ≤2.1A |
| Gain | 40±1 | dB | Peak-to-peak |
| In-band Fluctuation | ≤2 | dB | Peak-to-peak |
| Spurious Emission (Within Operating Band) | ≤-15dBm/1MHz | dB | Measured with CW signal added to center frequency to maximum output power |
| Spurious Emission (Out of Operating Band) | 9KHz～1GHz – No higher than normal background noise; 1G～12.75GHz – No higher than normal background noise | dBm | -10dBm without power, tested with dual directional coupler |
| Output VSWR (Without Power) | ≤1.30 | — | -10dBm without power, tested with dual directional coupler |
| Output VSWR (With Power) | ≤1.30 | — | Tested with power, dual directional coupler |
| Operating Environment Temperature | -10～+55 | ℃ | Low-temperature startup capability |
| Gain Stability | ±1.5 | dB | @-40℃~+55℃ |
| Power Stability | ±1 | dB | @-40℃~+55℃ |
| Power Supply Requirement | ≥3A@+28Vdc | — | Continuous wave output 30/25W |
| Power Supply Interface | Red-positive, black-negative | — | Red-positive, black-negative |
| RF Output Connector | SMA | — | SMA female outer spiral socket |
nn
Model Variants and Physical Dimensions for the 30W PA Module
nnThis PA module is available in multiple frequency-specific variants, allowing for precise application alignment. Each model maintains the same robust performance characteristics while targeting different operational bands. The table below outlines the available models and their respective specifications.nn
| Model | Frequency (MHz) | Power (dBm) | Current (A) | Voltage (V) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| MOP-PA-420/580M-30W | 420-580 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-720/820M-30W | 720-820 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-850/930M-30W | 850-930 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-970/1100M-30W | 970-1100 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-1170/1280M-30W | 1170-1280 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-1550/1620M-30W | 1550-1620 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-2400/2500M-30W | 2400-2500 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-5150/5350M-30W | 5150-5350 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-5400/5700M-30W | 5400-5700 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
| MOP-PA-5725/5850M-30W | 5725-5850 | 45±1 | ≤2.1 | 28-32 | 6015021.5 | 0.1603 |
nn
Conclusion: The Ultimate 30W PA for Reliable Signal Amplification
nnIn summary, the 30W 420-6000MHZ PA power amplifier module is not just a component; it is a comprehensive solution for demanding signal processing challenges. Its wide frequency range, high output power, and customizable features make it a versatile choice for various industries. Whether you are deploying it in a drone, a base station, or advanced research setup, this PA module ensures that your signals are transmitted with clarity and strength. By choosing this module, you invest in a professional, reliable amplification system that delivers consistent performance in every application. Trust in the 30W 420-6000MHZ PA to power your communications with unwavering efficiency.
