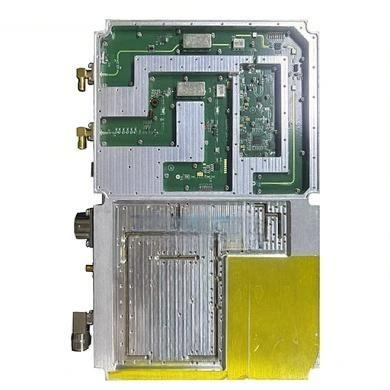

Unlocking Superior Signal Processing: The X-Band 3-Channel Down-Conversion Module
nnIn the demanding world of X-band RF receiving systems, signal integrity and precision are paramount. The X-band 3-channel down-conversion module (Model X-bond 9.1/9.5) stands as a benchmark for high-performance signal conversion, offering a robust solution for converting complex 9.1–9.5 GHz RF signals into clean, manageable 35 MHz IF outputs. This module is engineered to meet the rigorous requirements of defense, aerospace, and advanced communications, where every decibel of gain and every microsecond of rise time matters.nnDesigned for professionals who cannot compromise on quality, this module delivers a noise figure that ensures minimal signal degradation. Whether you are deploying it in a radar system, satellite ground station, or electronic warfare platform, the X-band 3-channel down-conversion module provides the reliability and performance needed for critical missions. Its tri-channel architecture allows for simultaneous processing, enhancing system throughput and reducing latency.nn
Technical Specifications and Performance Metrics
nnUnderstanding the raw capability of this module requires a deep dive into its electrical characteristics. The following table outlines the key performance indicators that define the X-band 3-channel down-conversion module, ensuring transparency and aiding in system integration.nn
| Parameter | Value / Range | Condition / Notes |
|---|---|---|
| Number of Channels | 3 | Receive channels |
| Input RF Frequency | 9.1 – 9.5 GHz | X-band |
| RX-LO Frequency | 9.135 – 9.535 GHz | Local oscillator input |
| Noise Figure | As per X-band 3-channel down-conversion module solution | High-performance standard |
| Gain | ≥20 dB | High Gain mode |
| Gain Flatness | ±1 dB | Across bandwidth |
| Maximum Input Power | 50 dBm (Pulse 25%, 100 µs) | Pulse condition |
| Image Rejection | ≥35 dBc | Spurious rejection |
| Spurs (±200 KHz) | Better than 85 dBc | Narrowband |
| Spurs (±200 MHz) | Better than 60 dBc | Wideband |
| Harmonics | >70 dBc | Suppression |
| Rise & Fall Time | ≤10 ns | Switching speed |
| Switch Isolation | >80 dBc | Between channels |
| Operation Modes | High Gain: 20 dB, Low Gain: 2–3 dB, Blocking: -30 dB | Selectable |
| Output P1dB | ≥12 dBm | 1 dB compression point |
| Protection | Over/Under Voltage, DC-Power Good (Digital Monitor) | Inbuilt safety |
| IF Frequency | 35 MHz | Standard intermediate frequency |
| IF Bandwidth (3 dB) | 10 MHz | Passband |
| IF Bandwidth (30 dB) | 25 MHz | Selectivity |
nn
Operational Excellence and Versatility
nnThe module’s flexibility is highlighted by its three distinct operational modes: High Gain (20 dB), Low Gain (2–3 dB), and Blocking (-30 dB). This allows the X-band 3-channel down-conversion module to adapt to varying signal environments without external attenuators or gain blocks. In High Gain mode, it amplifies weak signals with exceptional linearity, while Low Gain mode accommodates stronger inputs, reducing the risk of saturation. The Blocking mode is ideal for test scenarios or when signals need to be suppressed for calibration.nnFurthermore, the built-in protection circuitry monitors over/under voltage conditions and provides a digital DC-Power Good signal, ensuring system reliability. The rise and fall time of ≤10 ns is crucial for fast-switching applications, such as phased-array radar or time-division multiplexing systems, where timing precision is everything.nn
Conclusion: Why Choose This X-band 3-Channel Down-Conversion Module?
nnWhen your system demands a receiver that can handle the harsh realities of X-band RF, the X-band 3-channel down-conversion module (Model X-bond 9.1/9.5) delivers unmatched performance. Its combination of low noise figure, high gain, excellent spurious rejection, and robust protection features makes it the ideal building block for next-generation communication and radar systems. By choosing this module, you invest in signal fidelity, operational flexibility, and long-term reliability. Whether you are upgrading an existing architecture or designing a new system from scratch, this X-band 3-channel down-conversion module solution ensures your data arrives clean, fast, and free from interference.
