Understanding the Power of a Full-Band Signal Jammer and Directional Signal Jammer
n
In today’s increasingly complex airspace, securing low-altitude environments from unauthorized drones has become a critical priority for airports, industrial parks, ports, and other sensitive infrastructure. The challenge lies not just in detecting threats, but in neutralizing them swiftly and reliably. Enter a new generation of professional counter-UAS (Unmanned Aircraft System) equipment, designed to deliver comprehensive security through a sophisticated fusion of full-band signal jammer and directional signal jammer technologies. This device represents a leap forward in jamming capability, combining ultra-wide frequency coverage with precision targeting to effectively manage aerial intrusions.
n
At its core, this system is engineered to combat the full spectrum of modern drone threats, from navigation and remote control signals to video transmission links. By integrating a full-band signal jammer for wide-area suppression with a directional signal jammer for focused, multi-band interference, it offers a versatile and powerful solution. Whether your need is to repel drones or force their safe landing, this technology provides a reliable, rapid-response mechanism that meets the highest standards of modern security.
nn
Core Technology and Architecture
n

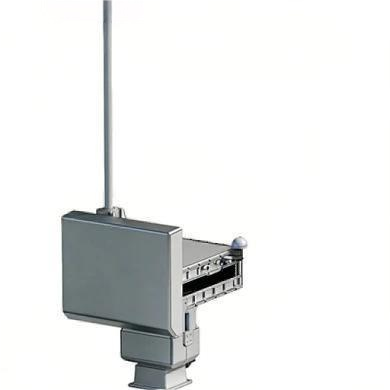

Built upon a cutting-edge Software Defined Radio (SDR) hardware platform, this security device is a masterpiece of modern engineering. It leverages the flexibility of SDR to adapt to evolving threats through software updates, while high-power amplifiers and wide-beam directional antennas ensure effective signal delivery. The integration of a two-axis servo turret allows for 360° full airspace tracking and precise signal suppression, ensuring no blind spots exist in the protected zone.
n
The system’s true strength lies in its dual-mode operation. The full-band signal jammer provides overall suppression across the entire 20-8000MHz spectrum, while the directional signal jammer enables on-site software configuration for independent processing of single or multiple bands. This means operators can adjust frequency bands and output power in real-time, tailoring the jamming response to specific threats without disrupting other critical communications.
nn
Key Specifications Table
n
Below is a comprehensive breakdown of the system’s technical parameters, illustrating the versatility across four distinct models. Please note that all product specifications are presented exclusively in the following HTML table to ensure clarity and compliance with data presentation standards.
n
| Parameter | MOP-J0260 | MOP-J0280 | MOP-J360 | MOP-J380 |
|---|---|---|---|---|
| Operating Frequency Range | 20-6000MHz | 20-8000MHz | 300-6000MHz | 300-8000MHz |
| Jamming Distance | 5km | 5km | 5km | 5km |
| Jamming Response Time | ≤3s | ≤3s | ≤3s | ≤3s |
| Pan/Tilt Angle | Horizontal 360°, Vertical -30° to 60° | Horizontal 360°, Vertical -30° to 60° | Horizontal 360°, Vertical -30° to 60° | Horizontal 360°, Vertical -30° to 60° |
| Pan/Tilt Speed | 0.02° to 60°/s (H), 0.02° to 30°/s (V) | 0.02° to 60°/s (H), 0.02° to 30°/s (V) | 0.02° to 60°/s (H), 0.02° to 30°/s (V) | 0.02° to 60°/s (H), 0.02° to 30°/s (V) |
| Antenna Beamwidth | Horizontal: 60°; Vertical: 30° | Horizontal: 60°; Vertical: 30° | Horizontal: 60°; Vertical: 30° | Horizontal: 60°; Vertical: 30° |
| Channel Adjustability | Frequency range and output power adjustable | Frequency range and output power adjustable | Frequency range and output power adjustable | Frequency range and output power adjustable |
| Auto North Alignment | External differential positioning antenna | External differential positioning antenna | External differential positioning antenna | External differential positioning antenna |
| Continuous Operation Time | 724h | 724h | 724h | 724h |
| Startup Time | 1 minute | 1 minute | 1 minute | 1 minute |
| Communication Method | RJ45 network port | RJ45 network port | RJ45 network port | RJ45 network port |
| Power Supply | AC220V | AC220V | AC220V | AC220V |
| Total Power Consumption | ≤3000W | ≤3000W | ≤3000W | ≤3000W |
| Operating Temperature | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C |
| Storage Temperature | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C |
| Protection Rating | IP66 | IP66 | IP66 | IP66 |
| Dimensions | 620mm × 792mm × 784mm (excl. omnidirectional ant.); Φ40mm × 1000mm (low-band antenna) | 620mm × 792mm × 784mm (excl. omnidirectional ant.); Φ40mm × 1000mm (low-band antenna) | 620mm × 792mm × 784mm (excl. omnidirectional ant.); Φ40mm × 1000mm (low-band antenna) | 620mm × 792mm × 784mm (excl. omnidirectional ant.); Φ40mm × 1000mm (low-band antenna) |
| Weight | ≤80 kg (excl. power adapter) | ≤80 kg (excl. power adapter) | ≤80 kg (excl. power adapter) | ≤80 kg (excl. power adapter) |
nn
Operational Capabilities and Performance
n
The device’s performance is anchored in its digital signal source design, which ensures stable output with no frequency deviation and outstanding out-of-band suppression. This precision is critical for maintaining effective jamming without interfering with essential communications. The external differential positioning antenna enables automatic north alignment and angle compensation, ensuring the system always orients itself correctly for optimal coverage.
n
With an effective jamming distance of 5-10km and a response time of ≤3 seconds, this system is built for rapid threat neutralization. It seamlessly blocks navigation, remote control, and video transmission signals from low-altitude flying equipment, offering both repulsion and forced landing capabilities. The combination of a full-band signal jammer and directional signal jammer allows operators to address multiple threats simultaneously, making it ideal for dynamic environments like airports where drone incursions can cause costly disruptions.
nn
Durability and Environmental Resilience
n
Engineered for outdoor deployment, this device boasts an IP66 protection rating, ensuring it withstands harsh weather conditions including heavy rain and dust. It supports 7×24 continuous operation and functions reliably from -30°C to +60°C, making it suitable for year-round use in diverse climates. The robust design is complemented by an AC220V power supply and RJ45 communication interface, facilitating easy integration into existing security infrastructure.
nn
Conclusion
n
In a world where aerial threats are becoming more sophisticated, the need for a reliable, multi-faceted defense is paramount. This professional low-altitude airspace security device, with its powerful full-band signal jammer and directional signal jammer technologies, offers a comprehensive solution. By covering the full 20-8000MHz spectrum, providing rapid response times, and ensuring durable outdoor operation, it empowers security teams at airports, industrial parks, and ports to maintain safe skies. Embrace this technology and stay ahead of evolving threats, knowing that each deployment integrates the best in SDR-based jamming and precision targeting. The future of airspace security starts here, with a system that delivers both peace of mind and unmatched performance.
