Unleashing Performance: The 20W High Power RF Amplifier Module
nnIn the demanding world of radio frequency engineering, signal strength and clarity are paramount. The 20W high power RF Amplifier Module stands as a professional-grade solution, meticulously engineered to meet the rigorous requirements of modern RF applications. Whether you are building a communication infrastructure, enhancing a signal relay system, or developing a specialized RF link, this module delivers exceptional power and precision. By adopting the TDD (Time Division Duplexing) standard, it ensures efficient and reliable data transmission across the critical 200-300MHz operating frequency band. This amplifier represents a significant upgrade in core power performance, making it an indispensable component for any serious RF deployment.nnAt the heart of its performance lies a balanced combination of high output and sensitivity. The downlink path achieves a maximum output power of 43±0.5dBm with a substantial gain of 48±1.5dB, ensuring that your transmitted signal penetrates obstacles and reaches its target with authority. Simultaneously, the uplink path offers a gain of 25±1.0dB, which is crucial for capturing weak return signals from remote devices. The module is designed with the core advantages of low noise, excellent linearity, and ultra-low spurious emissions. This minimizes signal distortion and interference, preserving the integrity of your data in even the most challenging electromagnetic environments. For engineers and system integrators, this translates to cleaner signals, wider coverage, and more reliable communication links.nn
Technical Specifications and Performance Metrics
nnUnderstanding the exact parameters of the 20W high power RF Amplifier Module is essential for proper integration. Below is a comprehensive breakdown of its key performance indicators, covering both downlink and uplink paths under standard test conditions.nn
| Test Item | Indicators (Downlink) | Indicators (Uplink) | Unit | Remark |
|---|---|---|---|---|
| Frequency Range | 200-300 | 200-300 | MHz | |
| Maximum Output Power | 43±0.5 | 15 | dBm | |
| Gain | 48±1.5 | 25±1.0 | dB | |
| Noise Figure | ≤15 | ≤3 | / | |
| Flatness | ≤3 | ≤2 | dB | |
| PA Voltage | 32 | 32 | V | |
| Power Conversion Efficiency | ＞15% | / | % | @43dBm |
| Gain Adjustment Step Size | 1.0 | Not supported | dB | |
| Numerical Control Regulation Error | 1–16dB ≤1.0 | Not supported | dB | |
| Spurious Emission In-Band | ≤-36 | / | dBm | Tested with CW signal at center frequency and max output power |
| Spurious Emission Out-of-Band (9KHz–1GHz) | No Clutter Above Normal Noise Floor | / | dBm | |
| Spurious Emission Out-of-Band (1G–12.75GHz) | No Clutter Above Normal Noise Floor | / | dBm | |
| EVM | ≤10% | ≤1.2% | / | Dynamic testing @43dBm |
| ACLR | ≤-35dBc | / | / | |
| Maximum Allowable Input Power | ≤+10 | ≤-10 | dBm | No damage for continuous 1-min operation |
| Input VSWR | ≤1.50 | ≤1.50 | / | |
| Output VSWR | ≤1.50 | ≤1.50 | / | |
| Switching Delay | ≤2 | ≤4.8 | μs |
nn
Advanced Features and Intelligent Protection
nnBeyond raw power, the 20W high power RF Amplifier Module incorporates advanced intelligence for seamless integration. It supports rapid TDD uplink and downlink switching with a delay of ≤4.8μs, ensuring minimal latency in time-sensitive networks. A built-in 0-16dB digital control attenuator allows for precise gain adjustment, giving you fine-grained control over signal levels. To safeguard your investment, the module is equipped with multi-level protection mechanisms, including over-temperature, over-power, and VSWR monitoring. Furthermore, parameter configuration and real-time status monitoring are easily managed via an RS-485 interface, providing a user-friendly experience for system diagnostics and tuning.nn
Robust Design for Harsh Environments

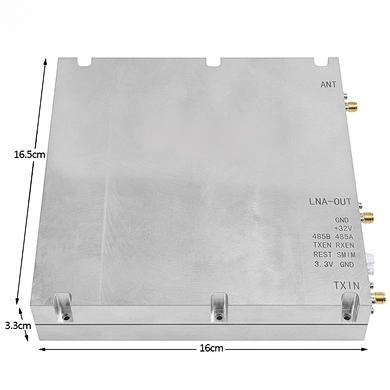

nnReliability in extreme conditions defines the true value of this 20W high power RF Amplifier Module. Powered by a 32V DC supply with a power conversion efficiency exceeding 15% at full power, it operates flawlessly in ambient temperatures ranging from -10°C to +55°C. The module exhibits excellent gain and power stability under both high and low temperature extremes, ensuring consistent performance in outdoor or industrial settings. Input and output VSWR values are maintained at ≤1.5, minimizing signal reflection and connection loss. The industrial-grade structural design incorporates robust interfaces like KF2EDG5.08-4P and XH2.54-8P connectors for power and monitoring, alongside SMA-K and MCX-K connectors for RF signals, making installation straightforward and secure.nnIn conclusion, the 20W high power RF Amplifier Module is a top-tier solution for professionals seeking a perfect balance of power, precision, and dependability. Its comprehensive feature set, from rapid TDD switching to intelligent protection and remote monitoring, ensures it can handle the toughest signal enhancement tasks. Whether for 20W high power RF amplification, signal boosting in weak coverage areas, or constructing a robust RF link, this module sets a new standard for excellence in its class.
