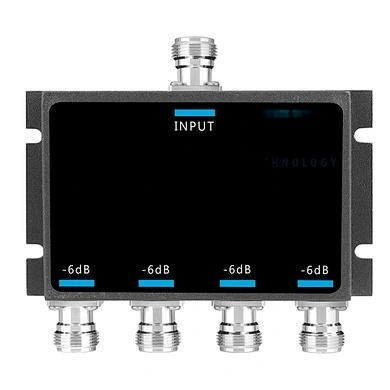

Unlocking Wireless Performance: The 698-2700MHz 4-Way Power Splitter
nnIn the fast-paced world of wireless communications, signal integrity is everything. Whether you are deploying a distributed antenna system (DAS), optimizing a 5G network, or setting up an RF testing lab, the precision of your signal distribution can make or break your system’s performance. Enter the high-performance 4-Way Power Splitter—a robust RF power divider engineered to deliver accurate, reliable signal splitting across the critical 698-2700MHz frequency range. This device is not just a component; it is a cornerstone for modern cellular, LTE, and 5G infrastructures.nn
Why Choose a 4-Way Power Splitter for Signal Distribution?
nnThe core strength of this 4-Way Power Splitter lies in its ability to divide a single input signal into four identical output signals with minimal losses. Using advanced microstrip technology, it ensures an exceptionally low insertion loss of ≤0.4 dB. This means your transmitted power stays strong, avoiding the degradation that can plague lesser RF power dividers. Furthermore, the device maintains an amplitude balance that keeps each output path perfectly matched, eliminating the risk of signal disparity in multi-antenna configurations.nn
Superior Engineering for Demanding Environments
nnWhen building a wireless system that must perform without interruption, reliability is non-negotiable. This RF power divider is constructed with heavy-duty N female connectors, providing not just a secure connection but also excellent mechanical stability. These connectors are corrosion-resistant, making the splitter ideal for both indoor installations and exposed outdoor base station environments. The unit’s compact, black-plated finish adds to its durability, while its integrated shielding protects against electromagnetic interference (EMI). By minimizing phase variation, the 4-Way Power Splitter ensures consistent operation even when your system faces extreme weather or electronic noise.nn
Technical Specifications of the 4-Way Power Splitter
nnTo fully appreciate the performance of this RF power divider, examine its technical data. The following table outlines the key specifications, confirming its suitability for professional wireless applications.nn
Core Electrical and Mechanical Parameters
nn
| Parameter | Value |
|---|---|
| Frequency Range | 698-2700 MHz (Microstrip) |
| Split Ways (Available) | 2, 3, 4, 6, 8 |
| VSWR | ≤1.25:1 |
| Insertion Loss (all splits) | ≤0.4 dB |
| Isolation | ≥20 dB |
| Average Power Handling | 50 W |
| Impedance | 50 Ω |
| Connector Type | DIN, 4.3-10, or N-Female |
| Operating Temperature | -35°C to +65°C |
| Application | Indoor or Outdoor |
| Finish | Black Plated |
nn
Versatile Connectivity and Integration
nnA truly effective 4-Way Power Splitter must offer flexibility. This model supports multiple connector types, including DIN, 4.3-10, or N-Female options, ensuring seamless integration with existing coaxial cables and network hardware. Whether you are retrofitting an old system or building a brand-new distributed antenna system, the ease of connection speeds up installation and reduces potential failure points. The 50-ohm impedance ensures standard matching across the vast majority of wireless communication systems, from repeaters to complex testing setups.nn
Industry Applications for Your RF Power Divider
nnThis 4-Way Power Splitter excels in real-world scenarios where precision splitting is critical:nn
- n
- Distributed Antenna Systems (DAS): Distribute signals evenly across multiple antennas in stadiums, hospitals, or large office buildings.
- 5G and LTE Networks: Support wideband 5G deployments and legacy LTE bands with reliable isolation and low loss.
- RF Testing and Measurement: Split reference signals for simultaneous multi-device testing without introducing distortion.
- Repeater Systems: Deliver consistent power to multiple amplifier inputs for better coverage in weak signal areas.
n
n
n
n
nn
Conclusion: The Ultimate 4-Way Power Splitter for Modern Networks
nnWhen you require a high-performance solution that does not compromise on signal quality, this 4-Way Power Splitter stands out as a premier RF power divider. Its wide 698-2700MHz frequency capability, robust N female connectors, and minimal insertion loss make it the go-to choice for engineers and technicians. By choosing this 4-Way Power Splitter for your cellular, LTE, or 5G project, you invest in a component engineered for longevity and consistency. Experience the confidence that comes with superior power distribution—a small part that makes a massive difference in your communication systems.
