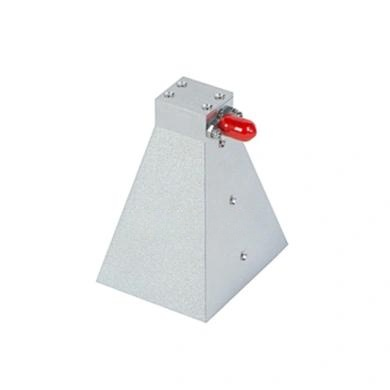

Unlocking High-Frequency Performance with a 5-26.5GHz Wideband High-Gain Horn Antenna
nnIn the demanding world of radio frequency (RF) engineering, the need for versatile, reliable, and high-performing components is paramount. The 5-26.5GHz Wideband High-Gain Horn Antenna is a sophisticated solution tailored for advanced high-frequency applications. Unlike traditional single-band antennas that require cumbersome switching to accommodate different signals, this innovative device provides seamless coverage across the entire 5 to 26.5 GHz spectrum. By leveraging the inherent benefits of a Wideband Horn Antenna design, it dramatically enhances device compatibility and operational efficiency, solving the critical problem of poor adaptability found in older antenna technologies.nnThis antenna eliminates the complexity of managing multiple antennas for different bands, offering a single, streamlined solution for a wide range of tasks. This not only simplifies system architecture but also reduces potential points of failure, making it a robust choice for mission-critical environments. The core of this high-performance design is its use of mature Linear Polarization technology. This ensures a stable and consistent polarization of the transmitted or received signal, which is crucial for minimizing cross-interference and maintaining signal integrity, especially in crowded RF environments.nn
Precision Engineering for Flawless Integration
nnA key feature that sets this 5-26.5GHz Horn Antenna apart is its meticulous design for seamless integration. It is equipped with a standard 2.92mm (K) female interface, enabling direct and accurate connection to industry-standard RF test equipment like oscilloscopes, spectrum analyzers, and signal generators. This compatible interface minimizes connection loss, preserving the purity of the signal along the entire transmission path. Such precision is vital for ensuring that test results are accurate and that system performance is optimized during development and deployment.nnFurthermore, the antenna boasts an exceptionally low Voltage Standing Wave Ratio (VSWR) of ≤2.0 (typical value). This low VSWR indicates that the antenna is effectively matched to the transmission line, dramatically reducing signal reflection and attenuation. The result is a signal loss rate that is far below the industry average. Coupled with a wide gain range of 7 dBi to 16 dBi, this Wideband Horn Antenna maintains stable signal transmission and reception capabilities even in the most complex and challenging electromagnetic environments. For applications requiring high signal directivity, it features a 3dB beamwidth that varies from 15° to 75°, allowing engineers to precisely focus signal energy, minimize waste in irrelevant areas, and achieve superior directional radiation performance.nn
Robust Construction and Environmental Resilience
nnBuilt to endure the toughest conditions, the structural design of this antenna utilizes high-strength aluminum alloy. This material choice offers an excellent strength-to-weight ratio, resulting in a compact form factor with dimensions of ≤53mm × 43.9mm × 72mm. This small, lightweight design makes it exceptionally easy to integrate into existing setups without adding significant bulk. Its durability is not just about physical strength; it also demonstrates outstanding resistance to extreme temperatures. With an operating temperature range of -55°C to +75°C and a storage temperature range of -65°C to +85°C, this antenna is proven to withstand both high and low temperature extremes, as well as the effects of aging over long periods.nn
Comprehensive Specifications and Parameters
nnBelow are the detailed technical specifications that define the performance and capabilities of this exceptional antenna. This data is critical for engineers and system integrators to assess its suitability for specific applications.nn
| Parameter | Value |
|---|---|
| Operating Frequency | 5 – 26.5 GHz |
| VSWR | ≤2.0 (typical) |
| Gain | 7 dBi – 16 dBi |
| Polarization | Linear Polarization |
| Reference Dimensions | ≤53 mm × 43.9 mm × 72 mm (excluding mounting structure) |
| Material | Aluminum Alloy |
| Interface | 2.92mm (K) Female |
| 3dB Beamwidth | 15° to 75° |
| Operating Temperature | -55°C to +75°C |
| Storage Temperature | -65°C to +85°C |
