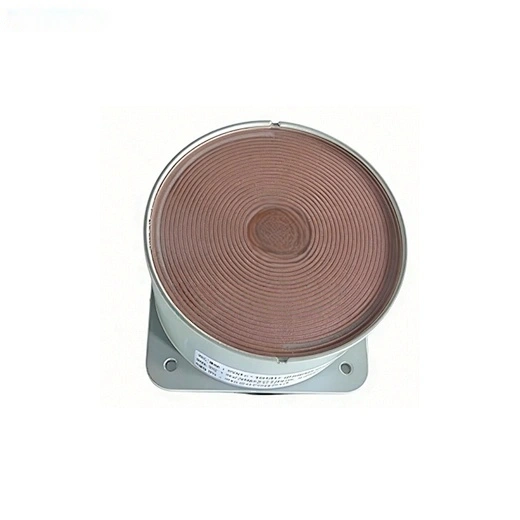

Unlocking Wideband Performance: The 2-18GHz High Compatibility Plane Spiral Antenna
nnIn the fast-evolving world of radio frequency (RF) communications, few components are as critical as the antenna. For engineers and system integrators working across demanding applications, the need for a robust, wideband solution that delivers consistent performance without compromising on size or durability is paramount. Enter the MOP20180G-L652, a high-performance Plane Spiral Antenna meticulously engineered for the 2-18GHz spectrum. This isn’t just another antenna; it is a testament to precision design, offering a unique blend of wide bandwidth, reliable polarization, and rugged construction that sets a new standard for versatility.nnAt the heart of this antenna lies a core right-handed circular polarization (RHCP) design. In an era where signal integrity can be compromised by multipath interference and orientation issues, RHCP provides a distinct advantage. It ensures that the signal remains stable and intelligible whether the receiving antenna is moving, rotating, or in a fixed position. This makes the MOP20180G-L652 an ideal choice for high-stakes environments such as electronic warfare, surveillance systems, and advanced radar applications. The antenna’s ability to cover the entire 2-18GHz band without switching or tuning means fewer components, simpler integration, and reduced system complexity. Whether you are working on a drone-based communication link or a fixed industrial sensor platform, this Plane Spiral Antenna simplifies the RF chain.nn
The Science of Stability: RF Performance and Gain
nnOne of the most compelling features of this antenna is its consistent electrical performance across an exceptionally wide frequency range. With a gain spanning from -1 dBi to +6 dBi, it compensates for the natural losses encountered at higher frequencies while maintaining sensitivity at lower bands. The 3 dB beam width, varying from 50° to 130°, provides a controlled yet adaptable coverage pattern that can be fine-tuned for specific use cases. This combination directly translates to reliable signal transmission and reception, even in environments prone to interference. The ultra-low axial ratio, typically ≤3 dB, guarantees near-perfect circular polarization purity, a critical factor in modern communication protocols that rely on polarization diversity to maximize data throughput and minimize noise.nn
Form Factor and Durability: Build to Last
nnBeyond its electrical excellence, the MOP20180G-L652 is a triumph of mechanical engineering. Its miniature and sturdy construction, with a reference dimension of just ≤65mm x 65mm x 40mm (excluding connectors), allows it to be embedded into space-constrained systems without sacrificing performance. The use of Alufer for the antenna cavity is a deliberate choice, combining the lightweight benefits of aluminum with the superior shielding and thermal properties needed for high-frequency operation. Weighing in at ≤100 grams, this Plane Spiral Antenna is remarkably easy to handle and integrate. The inclusion of a stainless steel SMA-50K connector adds a layer of durability, resisting corrosion and mechanical wear over countless connection cycles. This robust build is paired with a wide temperature tolerance, operating flawlessly from -50°C to +70°C and storing safely between -50°C to +65°C. Such resilience makes it a perfect candidate for outdoor installations, aerospace platforms, and industrial environments where temperature extremes are a daily reality.nn
Technical Specifications at a Glance
nnFor engineers who require precise data for system design, the following table outlines the key electrical and mechanical parameters of the MOP20180G-L652:nn| Parameter | Value |n| :— | :— |n| Frequency Range | 2-18 GHz |n| Gain | -1 dBi to +6 dBi |n| 3 dB Beam Width | 50° – 130° |n| Standing Wave Ratio (VSWR) | ≤2.5 |n| Axial Ratio | ≤3 dB (typical value) |n| Polarization Method | Right-Handed Circular Polarization (RHCP) |n| Connector Type | SMA-50K (Stainless Steel) |n| Reference Dimension | ≤65 mm x 65 mm x 40 mm (excluding connectors) |n| Weight | ≤100 g |n| Antenna Cavity Material | Alufer |n| Working Temperature | -50°C to +70°C |n| Storage Temperature | -50°C to +65°C |nn
Conclusion: The Ultimate Choice for Wideband Applications
nnIn summary, the 2-18GHz High Compatibility Plane Spiral Antenna is more than a component—it is a comprehensive solution for modern wideband challenges. Its superior right-handed circular polarization ensures stable and interference-resistant communication, while its broad gain and beamwidth offer the flexibility required for diverse applications from RF communications to industrial detection and beyond. The robust Alufer construction, combined with its lightweight, miniaturized footprint, guarantees that this antenna can be deployed in the most challenging physical environments with ease. When your project demands uncompromising performance, a focus on reliability, and a seamless integration experience, the MOP20180G-L652 stands out as the definitive choice. Upgrade your systems with this high-reliability Plane Spiral Antenna and experience the difference that professional-grade engineering makes in every transmission.
