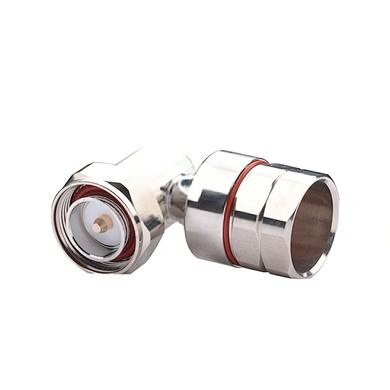

Outdoor RF Coaxial Connectors DIN Male Right Angle: Engineered for Reliable Performance in Harsh Environments
n
When it comes to robust outdoor installations, the outdoor RF coaxial connectors DIN male right angle for 7/8 coaxial cable connector stands out as a premier choice for demanding telecommunications, broadcast, and military applications. This heavy-duty RF coaxial connector is meticulously crafted to deliver exceptional signal integrity, even in the most extreme weather conditions. Whether you’re deploying cellular base stations, distributed antenna systems (DAS), or tower-mounted equipment, this coaxial cable connector ensures reliable, high-frequency performance up to 6GHz. Its innovative design not only withstands harsh environmental stresses but also simplifies installation in confined spaces, making it a versatile solution for modern communication infrastructure.
n
The cornerstone of this connector’s reliability lies in its construction. A corrosion-resistant brass body, combined with IP67-rated sealing, provides robust protection against moisture, dust, and temperature extremes ranging from -40°C to +85°C. The coaxial cable right angle connector design is a standout feature, minimizing space constraints while maintaining optimal impedance matching for frequencies up to 6GHz. This 90-degree configuration significantly reduces cable strain and enhances routing flexibility in tight spaces, such as on tower equipment or within outdoor cabinets. For professionals seeking a durable and high-performance solution, these attributes make the 7/8 coaxial cable connector a trusted choice for permanent outdoor deployment.
n
Precision Engineering for Superior Signal Integrity
n
At the heart of this RF coaxial connector is a precision DIN male interface, fully compliant with 7/8 standards, ensuring secure mating with industry-standard coaxial cables. This design prevents signal leakage, even in high-vibration environments, which is critical for maintaining consistent data transmission. The connector incorporates a gold-plated center contact and PTFE dielectric, which together achieve ultra-low insertion loss and exceptional VSWR performance. Performance metrics like VSWR of ≤1.15 and PIM3 of ≤-155dBc underscore its ability to deliver clean, reliable signals without degradation. These characteristics are vital for applications where signal integrity is paramount, such as in cellular networks and military communications.
n
Rugged Construction for Outdoor Durability
n
The outdoor RF coaxial connectors DIN male right angle are engineered to withstand the harshest outdoor conditions. The connector features a triple-layer silicone O-ring and a stainless steel coupling nut, guaranteeing waterproof performance for permanent deployment outdoors. Additionally, the UV-resistant outer jacket prevents degradation from prolonged sun exposure, while the nickel-plated finish provides long-term resistance to salt spray and moisture. These features ensure that the coaxial cable connector maintains its performance over years of use, even in coastal or industrial environments. Compatibility with LDF4-50A and equivalent coaxial cables, both rigid and semi-flexible, further broadens its applicability, making it a versatile component for diverse outdoor installations.
n
| Parameter | Specification |
|---|---|
| Interface Model | MOP-CN-DMR-CF78 |
| Electrical Characteristics | |
| Impedance | 50 Ω |
| Frequency Range | DC-6 GHz |
| VSWR | ≤1.15 |
| Dielectric Withstanding Voltage | ≥2500 V RMS, 50 Hz, at sea level |
| Dielectric Resistance | ≥5000 MΩ |
| Contact Resistance | Outer Contact ≤1.0 mΩ; Center Contact ≤1.0 mΩ |
| PIM3 | ≤ -155 dBc |
| Mechanical | |
| Durability (Mating Cycles) | ≥500 |
| Material and Plating | |
| Body | Brass with Tri-alloy plating |
| Insulator | PTFE |
| Center Conductor | Phosphor bronze + Beryllium bronze with Ag plating |
| Other | Brass with Ni plating |
| Environmental | |
| Temperature Range | -40°C to +85°C |
n
Optimal Performance for Diverse Applications
n
This coaxial cable connector is specifically designed to support high-frequency applications where precision and durability are non-negotiable. The 90-degree right-angle configuration not only optimizes cable routing but also maintains low insertion loss and stable impedance, which is crucial for systems like cellular base stations and broadcast transmitters. In military communications, the connector’s ability to prevent signal leakage under vibration ensures operational reliability. For distributed antenna systems (DAS), the rugged design simplifies installation in tight spaces, reducing the need for additional hardware and minimizing potential points of failure. The combination of robust materials and advanced engineering makes this coaxial cable right angle connector a superior choice for professionals who demand long-term, maintenance-free performance in outdoor settings.
n
Conclusion: A Trusted Solution for Outdoor RF Connectivity
n
In summary, the outdoor RF coaxial connectors DIN male right angle for 7/8 coaxial cable connector delivers an exceptional blend of durability, precision, and reliability. Its IP67-rated sealing, corrosion-resistant materials, and advanced electrical characteristics ensure consistent performance in the most challenging environments. Whether you’re deploying for cellular, broadcast, or military applications, this coaxial cable connector provides the signal integrity and mechanical robustness needed for successful outdoor installations. With its meticulous engineering and compliance with industry standards, it stands as a testament to quality in RF connectivity—making it an invaluable component for any professional seeking to optimize their outdoor communication systems.
