Mastering Spectrum Control: The High Gain Directional Antenna for Precision Jamming
nnIn the evolving landscape of electronic warfare and counter-drone operations, the high gain directional antenna stands as a critical tool for security professionals. The MOP-DYA-5.4/5.9G-SMAM is a specialized RF solution engineered for precision jamming applications within the 5GHz spectrum, particularly targeting the 5.8GHz band commonly used by commercial drones. This compact PCB antenna delivers exceptional signal focusing capabilities, making it an indispensable component in both portable and fixed-site jamming installations. With 12-15dBi gain and a superior front-to-back ratio exceeding 16dB, this antenna ensures that jamming energy is directed precisely where needed, minimizing collateral interference while maximizing operational effectiveness.nnThe design leverages a directional Yagi architecture implemented on a durable PCB substrate, providing reliable performance across the 5400-5900MHz range. This specific frequency coverage is crucial for addressing the control links of modern drones, which often operate in the 5.8GHz band. The antenna’s optimized radiation pattern ensures efficient power transfer with a VSWR of ≤1.5, maintaining signal integrity even in demanding electronic warfare environments. Whether integrated into rapid-response anti-drone guns or fixed-site protection systems, the high gain directional antenna delivers focused RF energy required for effective countermeasures. Its robust construction ensures long-term reliability in field operations, making it a critical component in the escalating technological arms race between drone operators and counter-UAV systems.nn
Electrical Characteristics and Performance
nnThe electrical design of this antenna is tailored for maximum efficiency and integration with jamming transmitters. The 50Ω impedance matching and 50W maximum input power handling allow for seamless compatibility, while the DC ground lightning protection enhances field reliability. As a PCB-based design, the antenna achieves an exceptional balance between performance and compact size, weighing just 60 grams. The vertical polarization and precision-tuned elements provide consistent directional performance across the entire operational temperature range (-40°C to +50°C), ensuring reliable operation in diverse climatic conditions. Below is the comprehensive set of electrical specifications:nn
| Parameter | Value |
|---|---|
| Model NO. | MOP-DYA-5.4/5.9G-SMAM |
| Frequency Range (MHz) | 5400-5900 |
| Gain (dBi) | 12-15 (±1) |
| Polarization | Vertical |
| Front-to-Back Ratio | >16 dB |
| VSWR | ≤1.5 |
| Maximum Input Power (W) | 50 |
| Impedance (Ω) | 50 |
| Lightning Protection | DC Ground |
nn
Mechanical Design and Practical Implementation

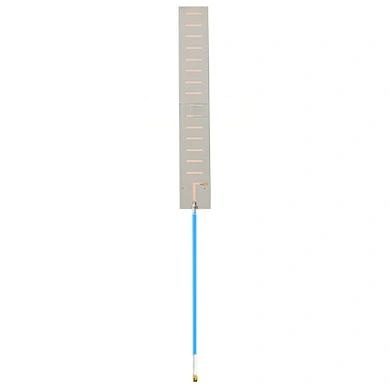

nnThe mechanical design of this directional Yagi antenna solution offers significant practical advantages. The SMA male connector with an RG405 cable (330mm length) ensures robust RF connectivity, while the PCB construction provides durability against vibration and wind loads up to 60m/s. The 5.8GHz optimization within the broader 5.4-5.9GHz range specifically targets common control link frequencies used by commercial drones, making this PCB antenna for jammer applications particularly effective. The combination of lightweight construction (just 60 grams) and high power handling (50W) addresses the conflicting requirements of portability and performance that characterize modern electronic countermeasure systems. Below are the mechanical specifications:nn
| Parameter | Value |
|---|---|
| Connector Type | SMA Male |
| Dimensions (mm) | Approx. 250 × 28 × 1 |
| Cable | RG405, 330 mm length |
| Antenna Weight (kg) | 0.06 |
| Rated Wind Velocity (m/s) | 60 |
| Material | PCB |
| Operating Temperature (°C) | -40 to +50 |
nn
Optimizing Jammer Systems with the High Gain Directional Antenna
nnWhen integrating this high gain directional antenna into jammer systems, security operators gain a technically advanced solution for spectrum dominance. The precision-engineered radiation pattern minimizes collateral interference while maximizing jamming effectiveness against target drones. The directional Yagi architecture, combined with the PCB substrate, ensures that the antenna maintains consistent performance even under physical stress from environmental factors. For portable anti-drone guns, the lightweight design and SMA connector enable quick deployment and easy attachment to handheld systems. In fixed-site installations, the DC ground lightning protection and high wind resistance make it suitable for outdoor environments where reliability is paramount.nnThe 5.8GHz optimization is particularly valuable, as this frequency band is heavily utilized by commercial drones for control and video transmission. By focusing energy on this critical band, the antenna disrupts communication links effectively, providing security teams with a reliable tool for counter-UAV operations. The ≤1.5 VSWR ensures minimal power loss, allowing transmitters to operate at peak efficiency. Furthermore, the vertical polarization matches common drone antennas, maximizing signal coupling. As electronic warfare continues to evolve, this high gain directional antenna remains a cornerstone of effective countermeasure strategies, enabling operators to maintain spectrum dominance in an increasingly contested environment. Whether used in rapid-response scenarios or integrated into long-term protection systems, the MOP-DYA-5.4/5.9G-SMAM provides the focused RF energy necessary for successful jamming missions.
