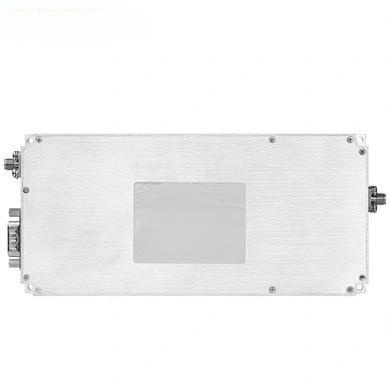

Unleashing Performance: The High Power 25W 1-2GHz RF Power Module
nnIn the demanding world of radio frequency (RF) engineering, achieving a perfect balance between raw power and intelligent control is paramount. The High Power 25W 1-2GHz RF Power Module stands as a testament to modern innovation, offering a robust 25-watt saturated output across the critical 1-2GHz frequency band. This module is not merely an amplifier; it is a sophisticated digital-centric solution designed for applications where reliability, precision, and real-time monitoring are non-negotiable. Whether you are working on advanced communication systems, radar technology, or industrial heating, this RF power module provides the necessary foundation for high-stakes operations.nnOperating from 1 to 2 GHz, this module delivers a saturated output power of 44±1dBm, which equates to approximately 25 watts. It seamlessly handles both continuous wave (CW) and pulsed input signals, with an input pulse width ranging from just 50 nanoseconds to full CW. This versatility makes it ideal for a wide array of test and measurement setups, as well as high-power transmission systems. The inclusion of digital-driven monitoring and control, primarily through an RS485 serial communication interface, elevates this module beyond traditional power amplifiers. It allows engineers to track critical parameters like temperature and current in real time, enabling proactive system management and enhanced operational oversight.nn
Comprehensive Protection and Digital Control
nn
Robust Safeguard Mechanisms for Long-Term Reliability
nnOne of the standout features of this RF power module is its multi-layered protection suite. It is fortified against common electrical hazards, ensuring longevity and preventing costly downtime. The integrated protection mechanisms include:nn- Reverse Polarity Protection: Prevents damage from incorrect power supply connections.n- Over-Temperature Shutdown: Automatically powers down the amplifier when internal temperatures exceed 85°C, with automatic restoration once the temperature drops below 65°C.n- Overvoltage and Undervoltage Protection: Triggers a shutdown if the supply voltage exceeds 36V or drops below 24V.n- Overcurrent Protection: Disables the amplifier if the current draw surpasses 10A.nnThese features are complemented by a digital monitoring system that tracks temperature and current via RS485 communication, providing actionable data for predictive maintenance and operational adjustments. The module also incorporates a TTL-based Power ON/OFF control (0/3.3V logic), where a 3.3V signal turns the amplifier on and 0V turns it off, with a default state of 3.3V (powered on). This digital integration allows for seamless integration into automated test systems and remote-controlled environments.nn
Key Electrical and RF Performance Specifications
nn
| Parameter | Value |
|---|---|
| Frequency Range | 1-2 GHz |
| Input Signal Type | CW & Pulsed |
| Input Pulse Width Range | 50 ns to CW |
| RF Input Drive | 0-3 dBm |
| Saturated Output Power | 44±1 dBm (~25W) |
| Flatness @ Psat | ±2 dB Max |
| Second Harmonics @ Max. Power | >10 dBc |
| Non-Harmonics Spurious @ Max. Power | >60 dBc |
| Input/Output Impedances | 50 ohms |
| Operating Voltage | 28V / 3.2A |
| Power ON/OFF Time | TTL 0/3.3V (Default: 3.3V) |
| Communication Model | RS485 Serial Communication |
nn
Physical and Environmental Durability
nnThe module’s compact form factor is designed for flexible deployment without compromising performance. With dimensions of 120±0.5mm × 80±0.5mm × 20±0.5mm and a weight of ≤1kg, it can be easily integrated into existing racks, enclosures, or portable systems. Its robust operating temperature range of -40°C to +60°C ensures consistent functionality in harsh environments, from freezing cold to extreme heat. This makes the RF power module a durable choice for outdoor installations, mobile platforms, and industrial settings where environmental stability is critical.nn
Protection Thresholds Summary
nn
| Protection Type | Trigger Condition | System Response |
|---|---|---|
| Over-Temperature | Temperature > 85°C | Amplifier power off; restores below 65°C |
| Overvoltage | Voltage > 36V | Amplifier power off |
| Undervoltage | Voltage < 24V | Amplifier power off |
| Overcurrent | Current > 10A | Amplifier power off |
| Reverse Polarity | Incorrect DC connection | Prevents damage |
nn
Conclusion: The Modern Choice for High-Power RF Applications
nnThe High Power 25W 1-2GHz RF Power Module is more than just an amplifier; it is a digitally integrated powerhouse that brings unprecedented control and reliability to your RF projects. By combining a 25-watt saturated output with a suite of digital protections and real-time monitoring via RS485, it addresses the core needs of engineers who demand both performance and peace of mind. The module’s ability to handle continuous wave and pulsed signals, along with its robust environmental tolerances, makes it an ideal candidate for defense communications, radar systems, electromagnetic compatibility (EMC) testing, and industrial RF applications. Whether you are designing a new system or upgrading an existing one, this RF power module offers a future-proof solution that prioritizes efficiency, safety, and operational excellence.
