Unleashing Performance: The 150W TDD Linear Power Amplifier
nnIn the demanding world of RF communications, signal integrity and power efficiency are non-negotiable. The 150W TDD linear power amplifier emerges as a professional-grade solution, engineered to enhance signal amplification and RF link construction with exceptional precision. This device is a core integrated model that combines a high-performance linear power amplifier with a linear amplifier, operating under the TDD standard. It accurately covers the 200-300MHz operating frequency band, delivering a substantial upgrade in core power performance. Whether you are building robust communication links or requiring reliable signal boosting, this 150W TDD linear power amplifier stands out with its low noise, excellent linearity, and minimal spurious emissions.nn
Key Specifications and Technical Insights
nnThe amplifier’s technical prowess is evident in its detailed performance metrics. It is designed to maintain high fidelity while handling substantial power loads, making it ideal for professional applications where signal clarity and strength are paramount. Below is a comprehensive breakdown of its test items and specifications:nn
| Test Item | Downlink | Uplink | Unit | Remark |
|---|---|---|---|---|
| Frequency Range | 200–300 | 200–300 | MHz | — |
| Maximum Output Power | 52±0.5 | 15 | dBm | — |
| Gain | 55±1.5 | 25±1.0 | dB | — |
| Noise Figure | ≤15 | ≤3 | — | — |
| Flatness | ≤3 | ≤2 | dB | — |
| PA Voltage | 32 V | V | — | |
| Power Conversion Efficiency | ＞15% | % | @52dBm | |
| Gain Adjustment Step Size | 1.0 | Not supported | dB | — |
| Numerical Control Regulation Error | 1–16dB, ≤1.0 | Not supported | dB | — |
| Spurious Emission | In-Band: ≤-36 | dBm | Tested with CW signal at center frequency, output power set to max | |
| Out-of-Band 9KHz–1GHz: No Clutter Above Normal Noise Floor | dBm | — | ||
| Maximum Allowable Input Power | ≤+10 | ≤-10 | dBm | No damage for continuous operation for 1 min |
| 1G–12.75GHz: No Clutter Above Normal Noise Floor | dBm | — | ||
| Input VSWR | ≤1.50 | — | — | |
| Output VSWR | ≤1.50 | — | — | |
| Switching Delay | ≤2 | ≤4.8 | μs | — |
| High and Low Temperature Test | Ambient Temperature: -10～+55 | ℃ | Starts normally at low temperatures; monitoring works normally | |
| Gain Stability: ±2 | dB | @-10℃～+55℃ | ||
| Power Stability: ±1.5 | dB | @-10℃～+55℃ | ||
| Current | ≤20A@32V | A | — | |
| Power Interface | KF2EDG5.08-4P Male Connector | — | — | |
| Monitoring Interface | XH2.54-8P Male Connector | — | — | |
| RF Input/Output Connectors | RF-IN/LAN OUT/ANT: N-K/MCX-K | — | — | |
| Uplink/Downlink Switching Methods | TX_EN and RX_EN signal (10=transmit state, 01=receive; 00: power amplifier and receiver both off; simultaneous setting to 11 is prohibited) | — | — | |
nn
Advanced Features and Operational Benefits
nnThe 150W TDD linear power amplifier is engineered for demanding environments. It supports fast uplink and downlink switching with a switching delay of ≤4.8μs, ensuring minimal latency in communication paths. A built-in 0-16dB digital control attenuation adjustment allows precise signal level management. Multi-level protection mechanisms guard against over-temperature, over-power, and VSWR faults, enhancing system reliability. Real-time parameter configuration and status monitoring are facilitated via an RS-485 interface, making it easy to integrate into automated systems. Powered by 32V DC with a power conversion efficiency exceeding 15%, it operates reliably across a temperature range of -10 to +55℃. The input and output VSWR are both ≤1.5, ensuring excellent impedance matching and signal integrity.nn

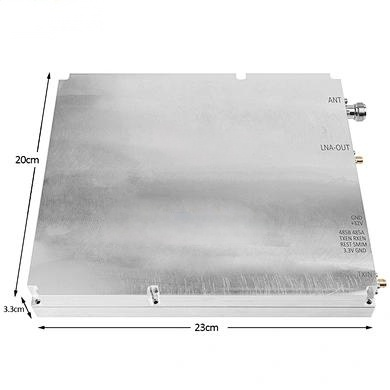

Robust Design for Scalable RF Solutions
nnThe industrial-grade structural design includes rich interfaces and straightforward installation procedures. The amplifier excels in both gain and power stability under high and low temperature extremes, making it suitable for outdoor or harsh operating conditions. Its low spurious emission profile and low noise figure underscore its role as a 150W TDD linear power amplifier ideal for signal amplification and RF link construction. Whether deployed in base stations, repeaters, or specialized communication systems, this device delivers consistent high performance.nn
Conclusion: The Ultimate 150W TDD Linear Power Amplifier
nnIn summary, the 150W TDD linear power amplifier is a top-tier solution for professionals requiring reliable, high-power RF amplification. Its robust performance metrics—including 52±0.5dBm downlink output power, 55±1.5dB gain, and fast switching—make it indispensable for enhancing signal strength and quality. With advanced protection features, digital control, and exceptional thermal stability, this 150W TDD linear power amplifier ensures seamless operation in diverse scenarios. For any application demanding precision and power, this device remains an unmatched choice for building dependable RF links.
