Introduction: Meeting Demanding High-Frequency Signal Challenges with the Right-Hand Circular Polarization Antenna
In the world of professional-grade signal reception, the ability to maintain clarity and stability under extreme conditions is non-negotiable. The MOP60180-45 6-18GHz Planar Helical Antenna is engineered to meet these demands head-on. This device is a cornerstone solution for applications spanning advanced communications, precision detection, and robust industrial control. Its defining feature is the implementation of a Right-Hand Circular Polarization Antenna design, which provides exceptional immunity to signal interference. In complex electromagnetic environments where linear polarization can falter, this circular polarization ensures that high-frequency signals are received with unwavering clarity. Whether deployed in a crowded urban sensor network or a remote field research station, this antenna delivers the consistent, high-quality performance that professionals rely upon. Moreover, its design as a High/Low Temperature Resistant Antenna guarantees that this reliability is not compromised by environmental extremes, from arctic cold to scorching industrial heat.
Core Performance and Stability of the Right-Hand Circular Polarization Antenna
At the heart of this antenna’s capabilities is its wide operational bandwidth, spanning from 6 to 18 GHz. This frequency range makes it an ideal component for a variety of systems, including satellite communications, radar systems, and test equipment. The stability of the signal is further enhanced by the Right-Hand Circular Polarization Antenna architecture. This design naturally mitigates issues like multipath interference, which can plague standard antennas. The result is a cleaner, more reliable signal link. To quantify this performance, the antenna maintains a gain of ≥ -3 dBi across a wide ±45° beamwidth in both azimuth and elevation. This broad, stable coverage pattern ensures that even when the signal source moves off-axis, communication remains strong. Complementing this is a Voltage Standing Wave Ratio (VSWR) of ≤ 2.5, a benchmark that reflects minimal signal reflection and maximum power transfer. These figures are not just arbitrary numbers; they are key indicators that confirm this antenna meets the stringent standards required for professional equipment, making it a perfect match for any application where signal integrity is paramount.
Detailed Product Specifications
To fully appreciate the engineering behind this antenna, a look at its technical parameters is essential. Below are the detailed specifications, clearly presented for your reference.
| Parameter | Value |
|---|---|
| Operating Frequency | 6 – 18 GHz |
| Standing Wave Ratio (VSWR) | ≤ 2.5 |
| Polarization | Right-Hand Circular |
| Gain (within ±45° Azimuth) | ≥ -3 dBi |
| Gain (within ±45° Elevation) | ≥ -3 dBi |
| Operating Temperature | -90°C to +55°C |
| Storage Temperature | -90°C to +70°C |
| Connector Type | SMA-50K |
| Dimensions (L x W x H) | 60mm x 60mm x 40mm (±2mm) |
| Housing Material | Aluminum Alloy (Military Grade) |
| Finish Color | Military Green |
| Weight | ≤ 200g |
The Advantage of a High/Low Temperature Resistant Antenna

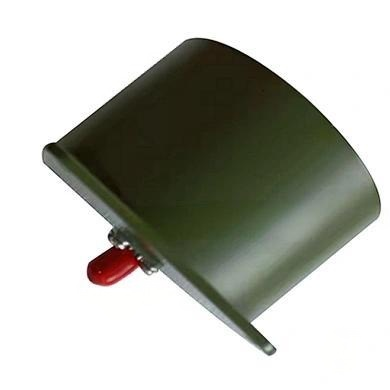

One of the most compelling features of this product is its classification as a true High/Low Temperature Resistant Antenna. The unit is constructed from a single piece of military-grade aluminum alloy, which is then coated with a protective layer in a classic military green finish. This integrous construction provides exceptional resistance to corrosion and physical wear, ensuring a long operational lifespan even in harsh environments. The engineering magic lies in its thermal stability. The antenna is designed to operate reliably within a temperature range of -90°C to +55°C and can be safely stored in conditions from -90°C to +70°C. This remarkable tolerance means that the High/Low Temperature Resistant Antenna will not suffer from performance degradation due to thermal expansion or contraction. Whether it is placed in the frozen landscapes of polar regions, inside a sweltering industrial server room, or on the open plains with severe diurnal temperature swings, this antenna remains a steadfast performer. This resilience is critical for applications like defense, aerospace, and remote environmental monitoring, where equipment failure is not an option.
Application Scenarios for Extreme Environments
– Polar and Alpine Research: Reliable signal relay for weather stations and geological sensors.
– Industrial Computing and Data Centers: Consistent connectivity in high-temperature, high-interference environments.
– Field Operations and Mobile Systems: Dependable communication for vehicles and portable equipment exposed to severe weather.
– Aerospace and Defense: Integration into systems that must withstand rapid temperature changes and harsh conditions.
Ease of Installation and Integration
Beyond its rugged performance, the MOP60180-45 is designed for practicality. Its compact form factor—measuring just 60mm x 60mm x 40mm (±2mm) and weighing no more than 200g—makes it exceptionally easy to integrate into space-constrained setups. This small size often eliminates the need for custom mounting solutions, allowing for direct placement within existing equipment. Furthermore, the antenna comes standard with an SMA-50K connector. This interface is ubiquitous in high-frequency communication and test devices. The use of this standard connector means that users can often connect the antenna directly to their transceivers or spectrum analyzers without needing additional adapters or custom cables. This plug-and-play simplicity drastically reduces setup time and lowers the barrier to entry for both field technicians and engineers working in laboratory settings. The combination of a small footprint and a universal connector makes this 6-18GHz Planar Helical Antenna an incredibly user-friendly and versatile component for a wide array of professional applications.
Conclusion: A Dependable Choice for Professional Signal Integrity
In summary, the MOP60180-45 6-18GHz Planar Helical Antenna stands out as a premier solution for professionals who require unwavering signal reliability. Its core identity as a Right-Hand Circular Polarization Antenna directly addresses the challenges of interference, ensuring clear and stable links in complex environments. Simultaneously, its robust construction as a High/Low Temperature Resistant Antenna guarantees operational consistency across the most extreme thermal extremes. The antenna does not just survive these conditions; it thrives, with key performance metrics like gain and VSWR remaining well within professional standards. Combining this rugged performance with a compact, lightweight design and a standard SMA connector, it offers a perfect balance of high capability and practical usability. For any application demanding a durable, high-performing, and stable antenna solution in the 6-18 GHz band, this planar helical antenna is an outstanding and reliable choice.
