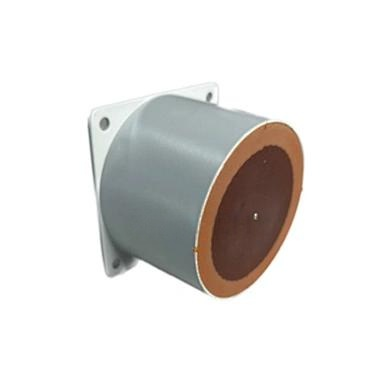

Introduction: The Ultimate 2-18GHz Ultra-Wideband Planar Helical Antenna

nnIn the ever-evolving landscape of wireless communication, the demand for antennas that can operate seamlessly across multiple frequency bands is paramount. The Model MOP021804 2-18GHz Planar Helical Antenna emerges as a professional-grade solution, setting a new standard for ultra-wideband performance. This exceptional antenna integrates extensive frequency coverage, remarkably low VSWR characteristics, and unparalleled stability, making it an indispensable core component for communication systems, RF testing, and industrial IoT applications. By eliminating the need for frequent antenna swaps, this high-performance antenna enables multi-band devices to achieve consistent and reliable signal transmission. Whether you are an engineer designing next-generation wireless systems or a technician operating in challenging outdoor environments, the 2-18GHz Ultra-Wideband Planar Helical Antenna offers the versatility and robustness required for mission-critical tasks.nn

Exceptional Performance and Key Features

nn

Unmatched Ultra-Wideband Coverage from 2GHz to 18GHz

nnThe standout feature of this antenna is its extraordinary frequency range, covering 2GHz to 18GHz in a single compact unit. This ultra-wideband capability allows the antenna to seamlessly adapt to various multi-band devices, eliminating the need for multiple antennas and reducing system complexity. The right-hand circular polarization design further enhances its utility, providing superior anti-interference capabilities compared to standard linear polarization antennas. In complex electromagnetic environments, this design ensures that signal integrity is maintained, making the antenna ideal for defense, aerospace, and sensitive industrial applications.nn

Low VSWR and Exceptional Signal Purity

nnAs a true Low VSWR Helical Antenna, the MOP021804 maintains a Voltage Standing Wave Ratio (VSWR) of ≤2.5 across its entire frequency range. This low VSWR, combined with a low back lobe of ≤-10dBc, significantly reduces signal reflection loss. The result is a purer, stronger received signal that enhances overall system efficiency. For professionals who demand precise and reliable performance, this low VSWR specification is a critical factor in ensuring data integrity and minimizing errors in high-speed communication links.nn

Gain Performance and Beamwidth Consistency

nnThe gain performance of this antenna is impressive, with specifications that ensure stable operation across all frequencies. Specifically, the gain is ≥-7dBi at 2GHz and above, improving to ≥-2dBi at 3GHz and above, reaching ≥1dBi at 4GHz, and peaking at ≥4.5dBi in the 9-10GHz range. This consistent gain profile is complemented by a 3dB beamwidth that is stably maintained between 55.9° and 87.1° across the 2-18GHz spectrum. Such wide coverage and uniform signal distribution make this antenna perfect for applications that require high-quality signal propagation, such as wireless base stations and RF testing instruments.nn

Robust Structural and Environmental Design

nn

Durable Construction with Lightweight Materials

nnThe 2-18GHz Planar Helical Antenna is built to last. Its high-strength Alufer antenna cavity combines exceptional durability with lightweight properties, ensuring the antenna can withstand harsh physical conditions without adding unnecessary weight to your system. Weighing in at ≤50g and with reference dimensions of ≤55mm×55mm×40mm (excluding the connector), this antenna is compact enough for flexible installation on a wide variety of devices, from drones to portable test equipment.nn

Environmental Resilience and Connector Quality

nnDesigned for extreme conditions, the antenna operates stably in temperatures from -40℃ to +55℃ and can be safely stored in environments ranging from -55℃ to +70℃. Its SMA-50K stainless steel connector offers both robust connection integrity and excellent corrosion resistance, extending the antenna’s service life even in humid or corrosive atmospheres. The grayish sea color finish ensures the antenna blends seamlessly with most device exteriors, maintaining a professional aesthetic.nn

Technical Specifications at a Glance

nnBelow are the detailed technical parameters presented in an HTML table for easy reference.nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Conclusion: The Future of Ultra-Wideband Communication

nnIn conclusion, the Model MOP021804 2-18GHz Ultra-Wideband Planar Helical Antenna stands as a testament to advanced antenna engineering. By seamlessly integrating ultra-wideband frequency coverage, low VSWR performance, and robust environmental resilience, it provides a reliable and efficient solution for a vast array of demanding applications. From wireless communication base stations to RF testing instruments, industrial control terminals, and outdoor monitoring equipment, this antenna delivers the signal quality and consistency that professionals rely on. If you require a component that combines high performance with unmatched versatility, the 2-18GHz Ultra-Wideband Planar Helical Antenna is the definitive choice for your next project.
