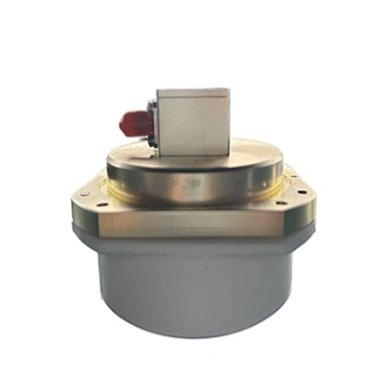

The Ultimate Guide to the 2-18GHz Wideband Low-VSWR Circularly Polarized Planar Spiral Antenna
nnIn the dynamic worlds of modern communication, radar detection, and electronic testing, the antenna is the unsung hero that dictates signal integrity and system reliability. As devices become more complex and environments more crowded, the demand for a single, versatile antenna that can handle multiple bands with unwavering stability has never been higher. Enter the 2-18GHz Wideband Low-VSWR Circularly Polarized Planar Spiral Antenna—a professional-grade solution designed to bridge the gap between performance and practicality. This antenna is not just a component; it is a strategic asset for engineers and system integrators facing the challenges of broadband signal management.nn
Why the Wideband Circularly Polarized Antenna Is a Game-Changer
nnThe core strength of this antenna lies in its astonishing Wideband Circularly Polarized Antenna design. Covering an ultra-wide frequency range from 2 GHz to 18 GHz, it seamlessly straddles the spectrum from shortwave to microwave frequencies. For professionals in fields like electronic warfare, spectrum monitoring, or multi-band satellite communications, this eliminates the need for multiple antennas. Instead of swapping antennas for different bands, you get one robust unit that handles it all. This not only boosts equipment efficiency but also simplifies system design and reduces maintenance.nnThe circular polarization feature—with an axial ratio of ≤3 dB—is a standout. In complex electromagnetic environments riddled with reflections, multipath interference, and polarization mismatches, a traditional linearly polarized antenna often falters. This Wideband Circularly Polarized Antenna excels by maintaining a stable, consistent signal connection, even in the most challenging scenarios, such as UAV data links, satellite communications, and mobile base stations. It effectively suppresses interference, ensuring your data stays clean and your connections remain robust.nn
Precision and Reliability: The Low-VSWR Antenna Advantage
nnSignal integrity is the lifeblood of any high-stakes application, and this antenna delivers with its hallmark Low-VSWR Antenna performance. With a Voltage Standing Wave Ratio (VSWR) of ≤ 2.5 (typical), it minimizes signal reflection at the feed point. This low VSWR ensures that nearly every bit of transmitted power reaches the target, with negligible loss due to mismatches. In radar systems, where weak return signals must be discerned perfectly, or in electronic test instruments that demand flawless calibration, this Low-VSWR Antenna characteristic is non-negotiable. It prevents the performance degradation caused by reflected power, such as transmitter overheating or reduced detection range.nnFurthermore, the gain profile of this Low-VSWR Antenna is tailored for real-world applications. From 2 GHz to 4 GHz, the gain is ≥ -4 dBi, which is more than adequate for lower-band applications like wide-area surveillance. In the crucial 4 GHz to 18 GHz range, the gain climbs to ≥ 1 dBi, providing a strong, reliable signal for higher-frequency tasks like point-to-point links and 5G testing. The antenna also boasts a beam axis deviation of ≤ 5°, ensuring accurate pointing, while its 3 dB beamwidth covers 60° to 130° in the horizontal plane and > 50° in the vertical plane. This combination offers both precision and wide coverage, making it ideal for base station relay, outdoor emergency communication, and mobile platforms.nn
Built Tough: The 2GHz~18GHz Planar Spiral Antenna in Harsh Environments
nnThe 2GHz~18GHz Planar Spiral Antenna is engineered for ruggedness. It operates reliably from -55°C to +75°C and can be stored from -65°C to +85°C, making it suitable for arctic, desert, and high-altitude deployments. Its compact form factor—with reference dimensions of ≤ 70 mm × 77 mm × 60 mm (excluding the connector)—is a space-saving marvel. The rear-mounted installation holes simplify mounting, while the standard SMA connector ensures compatibility with most equipment.nnThis 2GHz~18GHz Planar Spiral Antenna is the perfect choice for military, aerospace, and outdoor communications where durability and performance are paramount. Whether you are setting up a temporary command post, testing airborne radars, or deploying a remote IoT network, this antenna stands up to the elements.nn
| Parameter | Value |
|---|---|
| Frequency Range | 2 GHz ~ 18 GHz |
| VSWR (Type) | ≤ 2.5 |
| Gain (2 GHz – 4 GHz) | ≥ -4 dBi |
| Gain (4 GHz – 18 GHz) | ≥ 1 dBi |
| Axial Ratio | ≤ 3 dB |
| Polarization | Circular |
| 3 dB Beam Width (H-plane) | 60° ~ 130° |
| 3 dB Beam Width (E-plane) | > 50° |
| Beam Axis Deviation | ≤ 5° |
| Connector Type | SMA |
| Installation Method | Rear-end mounting holes |
| Reference Dimension (excl. connector) | ≤ 70 mm × 77 mm × 60 mm |
| Operating Temperature | -55 °C ~ +75 °C |
| Storage Temperature | -65 °C ~ +85 °C |
n
nn
Conclusion: The Definitive Choice for Modern Signal Challenges
nnThe 2-18GHz Wideband Low-VSWR Circularly Polarized Planar Spiral Antenna is more than just a piece of hardware; it is a solution to the most pressing signal integrity problems faced in advanced communications and radar systems. Its ultra-wideband coverage, exceptional circular polarization for interference rejection, and low VSWR for maximum power transfer make it indispensable. Whether in a lab, on a battlefield, or under the open sky, this antenna delivers consistent, high-quality performance. For engineers and designers seeking a single, reliable antenna for multi-band operations, the 2-18GHz Wideband Low-VSWR Circularly Polarized Planar Spiral Antenna stands as the clear front-runner.
