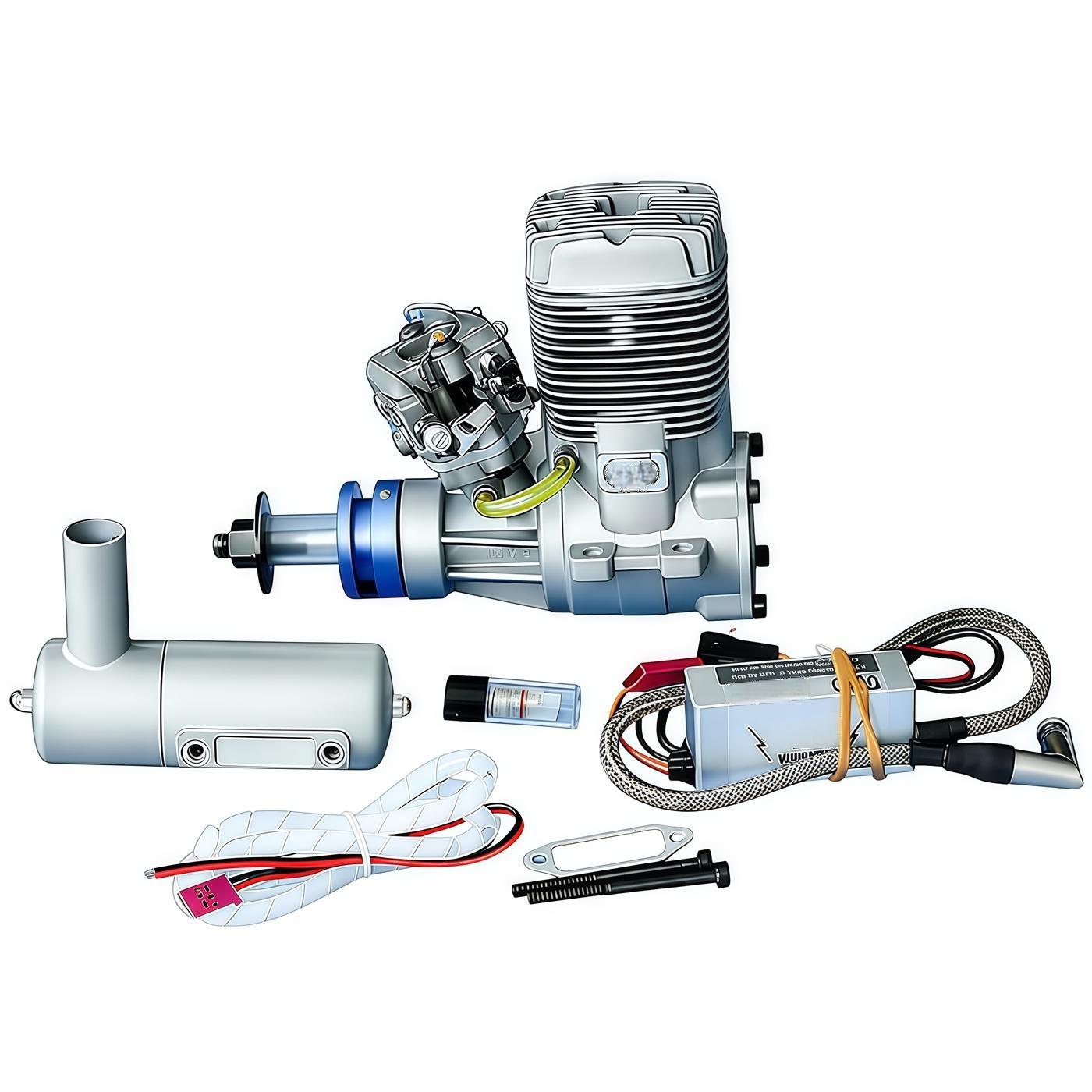

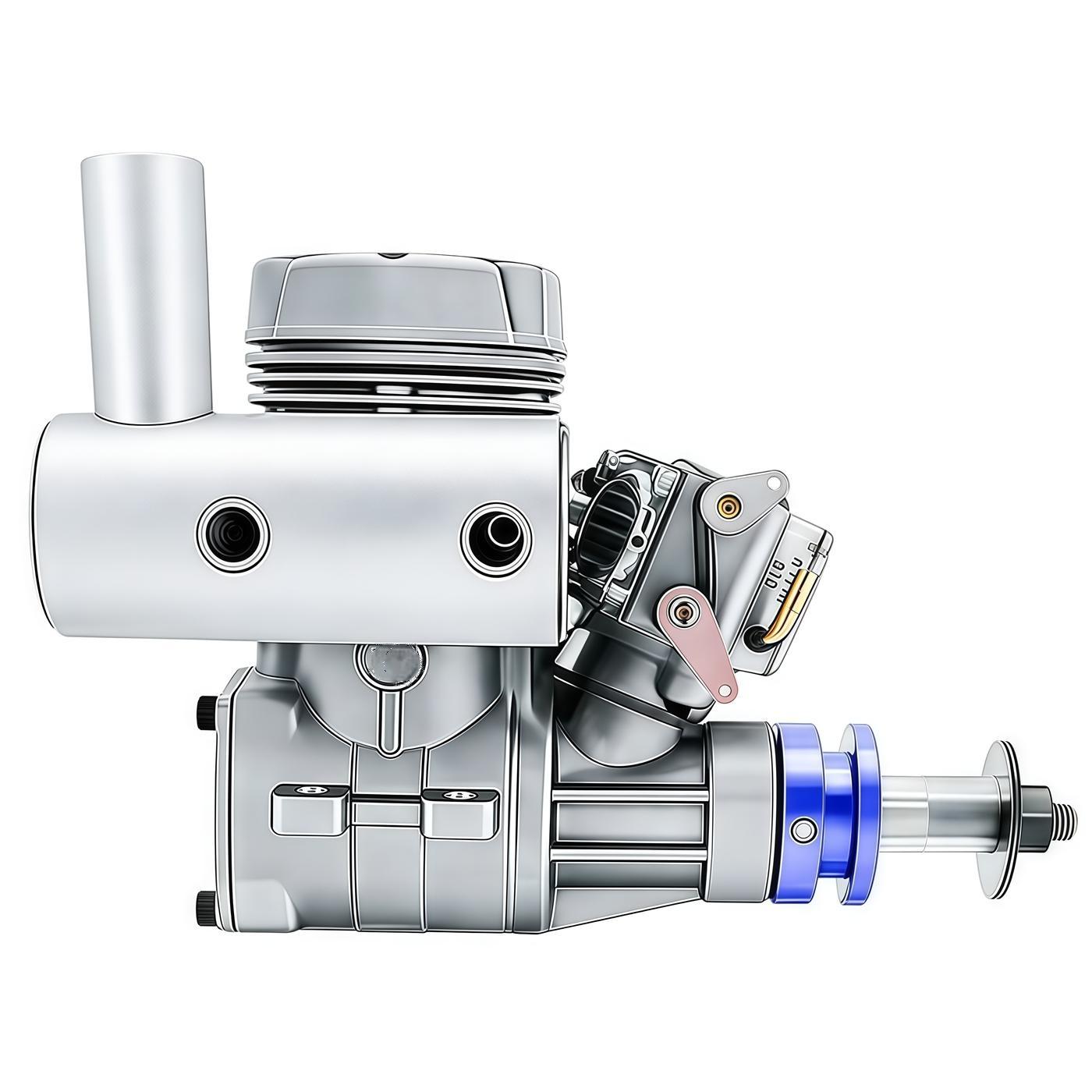

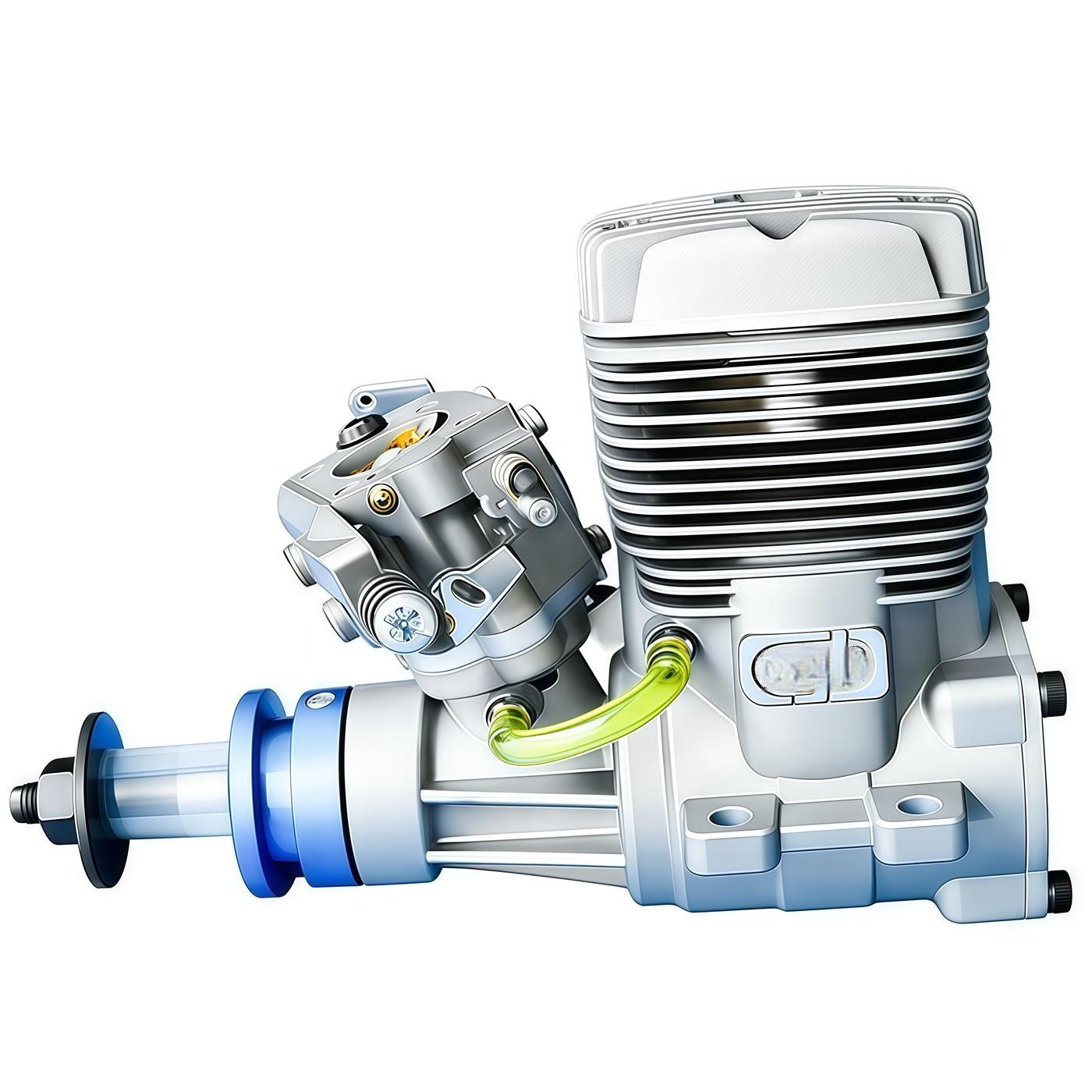

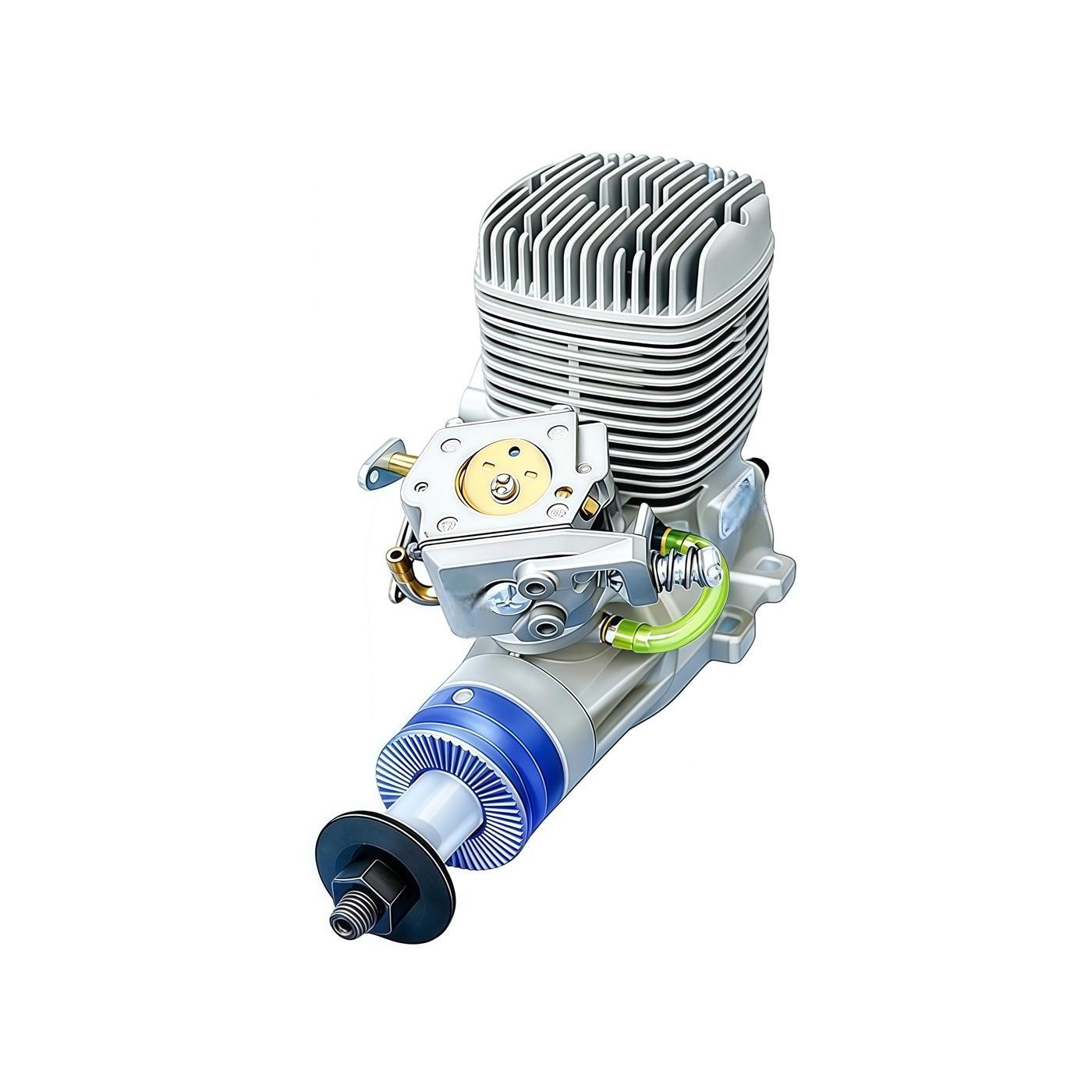

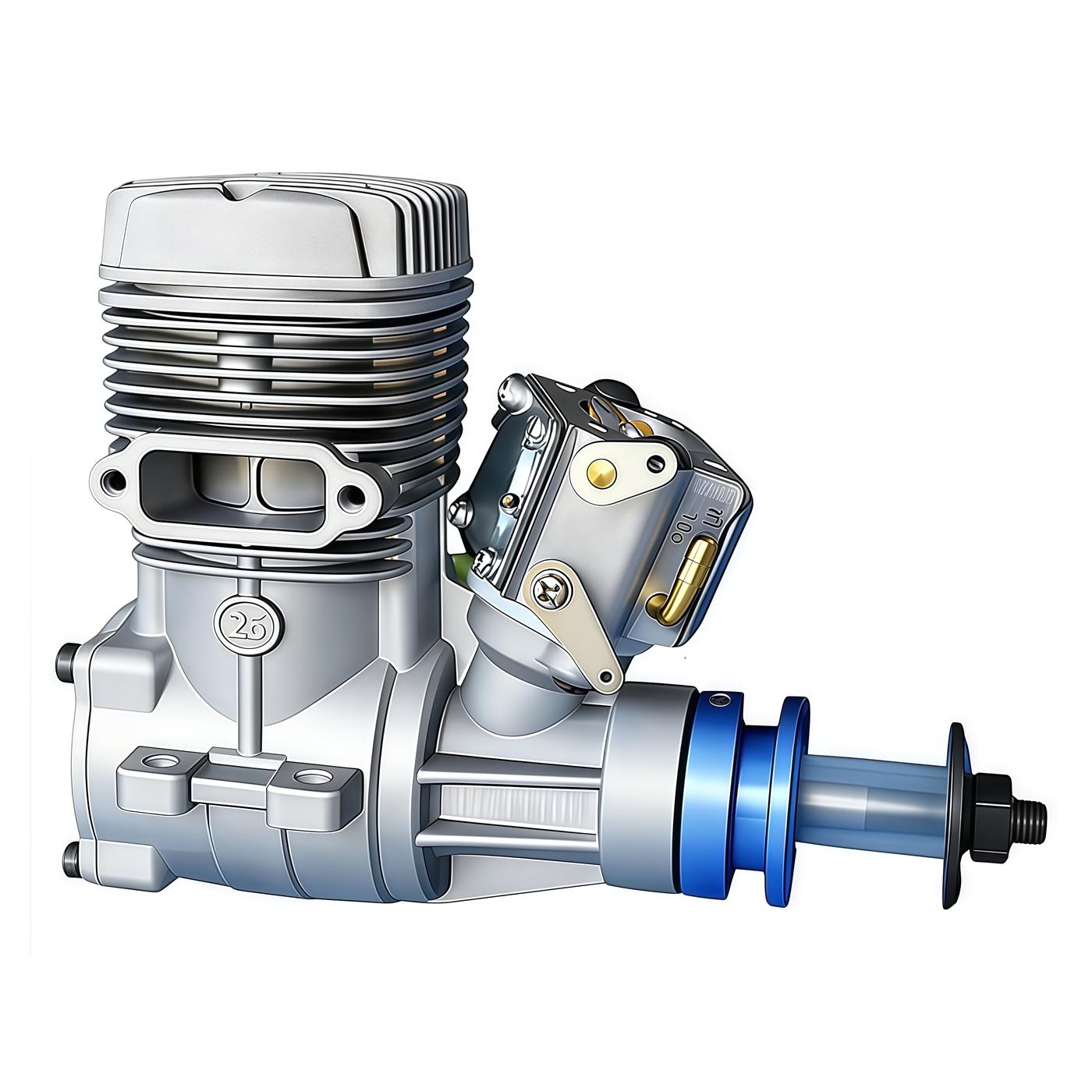

Unleashing the Power: The China Moneypro MOPGT25 Professional-Grade Two-Stroke Engine
When it comes to high-performance gasoline engines for RC aircraft, China Moneypro has established a reputation for engineering excellence. Their latest offering, the MOPGT25, represents a significant leap forward in two-stroke engine technology, designed specifically for demanding RC enthusiasts who refuse to compromise on power, reliability, or precision. This engine is not merely a component; it’s the heartbeat of your aircraft, delivering the thrust and consistency needed for advanced maneuvers and extended flight times.
The MOPGT25 is a professional-grade powerhouse that combines compact engineering with robust performance. It features the same installation dimensions as a 120-level methanol engine, but its power output is fully comparable to those units, making it an ideal upgrade for pilots transitioning from methanol to gasoline. With the ability to handle take-off weights of 6-8 KG, it is the perfect power configuration for 91-120 class RC aircraft. This engine ensures that your aircraft has the muscle to climb, cruise, and perform with authority.
Engineering Excellence and Key Specifications of the MOPGT25
At the core of the MOPGT25’s design is a commitment to precision and durability. The front carburetor configuration is a standout feature, designed to increase air intake through propeller pressure, effectively boosting engine power. This design also eliminates firewall interference during installation, a common issue with rear-carburetor engines. The connecting rod is reinforced with a needle roller bearing, which provides superior lubrication to the piston pin, reducing friction and extending engine life.
The cylinder liner is crafted from wear-resistant nodular cast iron, with bore roundness tolerance maintained within 0.01mm. This level of precision far exceeds that of standard aluminum alloy chrome-plated cylinder liners, which typically have a roundness tolerance of 0.03mm and often fail to meet EU environmental standards. The engine’s air intake system uses a crankshaft intake method, ensuring more accurate intake opening and closing timing compared to reed valve systems, which can experience elastic delay and inconsistent negative pressure. Additionally, an optional surround exhaust pipe effectively reduces noise and improves performance, making it popular among European and American RC enthusiasts.
MOPGT25 Complete Product Specifications
| Parameter | Value |
|---|---|
| Displacement | 25.09cc |
| Bore | 33.2mm |
| Stroke | 29mm |
| Practical Speed Range | 1800 – 11000 rpm |
| Output Power | 2.97 HP @ 11000 rpm |
| Tensile Force | 6.7 kg |
| Engine Weight | 840 g |
| Exhaust Pipe Weight | 80 g |
| Igniter Weight | 100 g |
| Ignition Power Supply | DC 6V – 14.4V / 1000mAh |
| Recommended Propeller | 17×10, 16×8, 16×10, 17×8 (Two-blades) |
| Fuel Type | 92# unleaded gasoline + fully synthetic 2T lubricant |
| Lubrication Ratio | Gasoline : Lubricating Oil = 25:1 |
Advanced Features That Define the MOPGT25
Front Walbro Carburetor and Lightweight Design
The engine is equipped with a front-mounted Walbro carburetor, known for its reliable operation and simple tuning. This setup, combined with a lightweight overall design, ensures powerful output without adding unnecessary weight to your aircraft. The MOPGT25 delivers excellent reliability, even under demanding flight conditions.
CNC Carved Connecting Rod with Needle Bearings
The connecting rod is precision CNC-carved and features double needle roller bearings. This advanced design enhances lubrication to the piston pin, reduces friction, and significantly improves the engine’s longevity and performance consistency.
Single Nut Output Shaft and Versatile Propeller Options
The single nut output shaft design simplifies propeller changes, allowing you to easily switch between the recommended two-blade propellers (17×10, 16×8, 16×10, 17×8) to match your flying style or aircraft requirements.
RCEXL Auto-Advance Micro-Ignition System
Specially made for China Moneypro, the RCEXL auto-advance micro-ignition system ensures optimal ignition timing across the entire RPM range. This leads to smooth acceleration, improved fuel efficiency, and reliable starts every time.
Conclusion: Why the MOPGT25 is the Ultimate Choice for RC Enthusiasts
The China Moneypro MOPGT25 is more than just an engine—it’s a testament to advanced engineering and a deep understanding of what RC pilots need. With its superior precision components, optimized air intake, and robust construction, this professional-grade two-stroke engine delivers power and reliability that stands up to the most demanding flights. The MOPGT25’s comprehensive specifications, from its 25.09cc displacement to its 2.97 HP output, are all meticulously crafted to ensure peak performance. Whether you’re upgrading a 91-120 class aircraft or building a new 6-8 KG model, this engine provides the power and confidence you need. Choose the MOPGT25 and experience the difference that true engineering quality makes in your RC flying.
