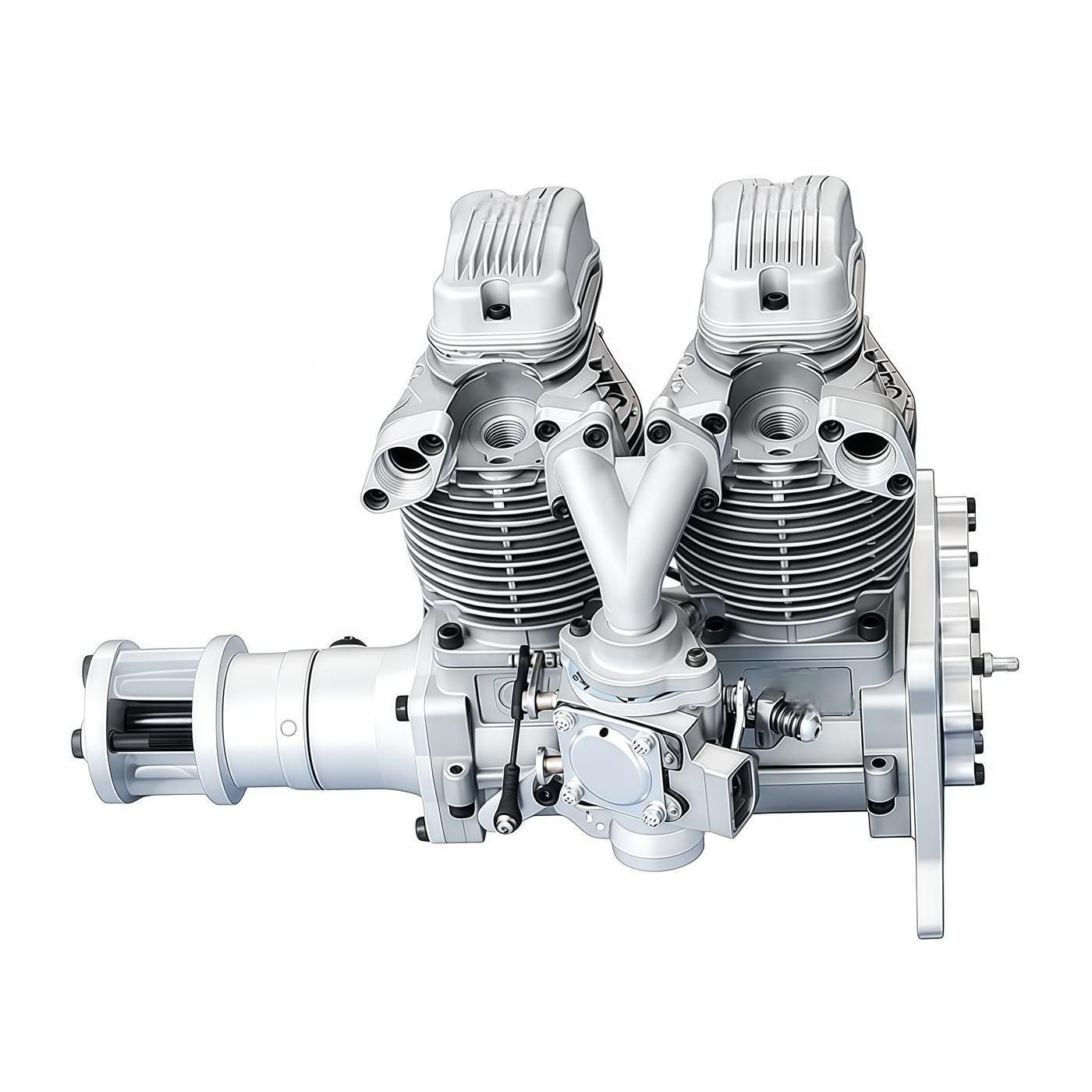

Engineered for Excellence: The China Moneypro MOPGF60i2 4-Stroke Gasoline Engine
For enthusiasts and professionals in the RC aircraft and UAV industries, the quest for a reliable, high-performance powerplant is never-ending. Enter the China Moneypro MOPGF60i2, a professional-grade 4-stroke gasoline engine that redefines the standards of power, efficiency, and durability. As the first factory in China to independently develop and produce 4-stroke RC gasoline engines, China Moneypro has leveraged years of engineering expertise to create a powerhouse that is as sophisticated as it is robust. This article explores the cutting-edge features of the MOPGF60i2, demonstrating why it is the premier choice for demanding aviation applications.
The MOPGF60i2 is not merely an engine; it is a statement of engineering precision. Designed specifically for RC aircraft and fixed-wing UAVs, it delivers an exceptional combination of high performance, low fuel consumption, and remarkable torque. Its compact structure and beautiful appearance belie the advanced technology within. For pilots and operators seeking the best power configuration for 300-350 level RC real aircraft and UAVs, this engine offers an unmatched solution.
Unmatched Power and Efficiency for Modern UAVs
One of the most compelling aspects of the China Moneypro MOPGF60i2 is its ability to deliver power comparable to a 300-350 glow-sized 4-stroke engine, but with the unique advantages of gasoline operation. With a takeoff weight capacity of 12-16kg, it is ideally suited for long-endurance UAVs and large-scale RC real aircraft. The engine’s high stability and ultra-low vibration ensure smooth operation, even under demanding flight conditions. The power-to-weight ratio exceeding 2:1 is a testament to its efficient design, providing the thrust needed for sustained performance.
Advanced Internal Mechanics: The Science of Lubrication and Durability
The internal architecture of the MOPGF60i2 is a marvel of mechanical engineering. The engine features a unique separation lubrication circulation system, which ensures that every moving part is lubricated more fully than conventional designs. This is complemented by a unique double piston ring system—one lubricating ring and one sealing ring—which works in tandem to optimize sealing and reduce wear. The connecting rod, equipped with a needle bearing, further enhances lubrication of the hinge pin, extending the engine’s operational life.
Innovation continues with the unique 90-degree crank angle double cam mechanism. This design effectively reduces vibration and increases overall stability, a critical factor for sensitive UAV payloads. The precision-forged connecting rod is built to withstand high stress, while the rear carburetor location facilitates easier engine adjustment and maintenance.
Superior Metallurgy and Environmental Compliance
Durability begins with materials. The cylinder liner of the MOPGF60i2 is made from wear-resistant nodular cast iron. The tolerance of the bore in the cylinder is held to within 0.01mm, a precision level far exceeding the 0.03mm roundness tolerance typically seen in aluminum alloy chrome-plated cylinder liners. This enhanced precision reduces friction, improves fuel efficiency, and extends engine life. Furthermore, the nodular cast iron liner avoids the environmental issues associated with chromium plating, making the MOPGF60i2 compliant with stringent EU environmental regulations.
Complete Specification Overview
The following table details the critical specifications and features of the China Moneypro MOPGF60i2:
| Specification / Feature | Details |
|---|---|
| Engine Type | Professional-grade 4-stroke gasoline engine |
| Application | RC aircraft, fixed-wing UAV (300-350 level) |
| Takeoff Weight Capacity | 12-16 kg |
| Power Classification | Comparable to 300-350 glow-size 4-stroke engine |
| Power-to-Weight Ratio | Greater than 2:1 |
| Piston Rings | Unique double piston ring (1 lubricating, 1 sealing) |
| Connecting Rod | Precision forged with needle bearing |
| Crank Mechanism | Unique 90-degree crank angle double cam |
| Cylinder Liner Material | Wear-resistant nodular cast iron |
| Cylinder Bore Tolerance | Within 0.01mm |
| Environmental Standard | EU compliant (no chromium plating) |
| Spark Plug | RCEXL CM6 |
| Ignition System | RCEXL with automatic advancing system (custom for China Moneypro) |
| Carburetor | Matched Walbro (for reliable running and convenient installation) |
| Exhaust | Universal exhaust silencer (for smoother, deeper voice, surging power) |
| Lubrication System | Unique separation lubrication circulation system |
| Noise Level | Low noise, smooth exhaust |
| Key Features | Ultra-high stability, large torque, ultra-low vibration, low fuel consumption, high wear resistance |
Conclusion
In conclusion, the China Moneypro MOPGF60i2 stands out as a pinnacle of 4-stroke gasoline engine technology for RC aircraft and fixed-wing UAVs. Its blend of high performance, low fuel consumption, and exceptional build quality makes it the ideal choice for discerning pilots and UAV operators. From its precision-machined nodular cast iron cylinder liner to its advanced lubrication and vibration-dampening systems, every component is engineered for reliability and longevity. Whether you are flying a long-endurance UAV or a scale RC real aircraft, the MOPGF60i2 delivers the power, stability, and efficiency you need to succeed.
