Unleash Unmatched Power with the China Moneypro MOPGTT70EFI Engine
When it comes to precision engineering and robust performance, China Moneypro has long been a benchmark in the world of high-quality gasoline engines. Their latest innovation, the MOPGTT70EFI, is a testament to this legacy. Designed specifically for serious RC enthusiasts, this professional-grade, two-stroke electronic injection gasoline engine combines compact elegance with raw, abundant power. Unlike traditional carbureted engines, the MOPGTT70EFI employs a state-of-the-art electronic fuel injection system that ensures optimal fuel delivery, stable performance, and exceptional throttle response. This engine isn’t just a component; it’s the heart of any high-performance RC aircraft or fixed-wing drone, promising reliability and efficiency that seasoned pilots can trust.
Engineered Excellence: A Deeper Look at the MOPGTT70EFI

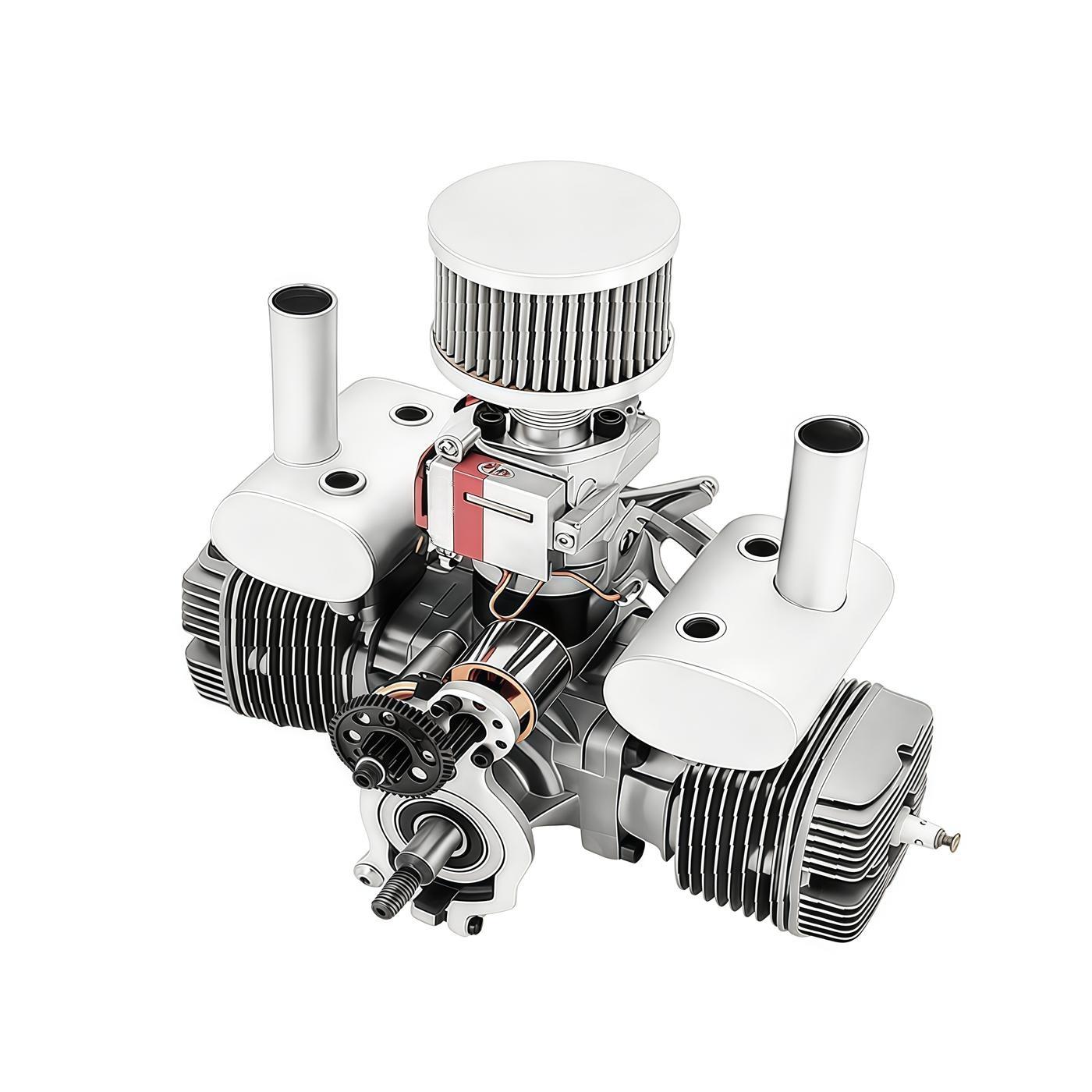

The MOPGTT70EFI is a horizontally opposed, dual-cylinder engine, a sophisticated evolution derived from the proven GT35 platform. This configuration naturally balances internal forces, reducing vibration and enhancing the smoothness of operation—a critical factor for sensitive drone applications. At its core lies a precision-forged connecting rod with needle roller bearings, and the crankshaft is supported by three high-quality deep groove ball bearings, ensuring longevity and friction-free rotation even under high loads.
Key Specifications and Performance Data
The following table outlines the critical technical parameters that define the MOPGTT70EFI’s superior build quality. Note the strict tolerances and advanced materials that set it apart from lesser engines.
| Parameter | Specification / Detail |
|---|---|
| Engine Type | Horizontally Opposed, Dual Cylinder |
| Displacement | 70cc (derived from GT35 platform) |
| Ignition System | RCXEL Customized Automatic Angle Capacitor Discharge, Dual Cylinder Synchronous |
| Fuel System | Two-Stroke Electronic Fuel Injection (EFI) with Closed-Loop Pressure Control |
| Fuel Pump Type | Self-Priming, with non-return pressure regulation |
| Communication Protocol | RS232 (for real-time engine data acquisition) |
| Mounting Configuration | Radial mounting seats included |
| Connecting Rod | Precision forged with needle roller bearings |
| Crankshaft Bearings | 3 high-quality deep groove ball bearings |
| Cylinder Liner Material | Wear-resistant ductile iron |
| Cylinder Bore Roundness Tolerance | < 0.01mm (Significantly exceeds standard) |
| Exhaust System | 2 integrated welded exhaust pipes (standard) |
| Electric Start Option | Available (electric start / non-electric start configurations) |
Material Science and Precision Engineering
The MOPGTT70EFI’s cylinder liner is a standout feature. Manufactured from wear-resistant ductile iron, it achieves a roundness tolerance of within 0.01mm. This is a significant leap over conventional aluminum alloy chromium-plated cylinder liners, which typically have a tolerance of around 0.03mm. The tighter tolerance means superior piston ring sealing, reduced blow-by, and consistent compression over the engine’s lifespan. Furthermore, the use of ductile iron over chromium-plated liners aligns with modern environmental standards, as the latter does not meet stringent EU environmental requirements. This commitment to advanced materials underscores China Moneypro’s dedication to both performance and sustainability.
Revolutionary Fuel System and Electronic Integration
At the heart of the MOPGTT70EFI’s performance is its advanced electronic injection system. The newly designed fuel pump features self-priming capability, a critical feature for reliable starting and operation after maintenance or storage. It employs closed-loop pressure control, meaning a sensor continuously monitors fuel rail pressure and adjusts the pump’s output to maintain a precise, stable pressure. Importantly, this system does not return excess fuel to the tank—a design that reduces fuel heating and vapor lock, common problems in less sophisticated EFI systems. Pilots can also take advantage of the RS232 communication protocol, which allows for real-time acquisition of engine operation data. This enables fine-tuning and diagnostics, giving the user unprecedented control over their powerplant.
Versatile Applications Across RC Aircraft and Drones

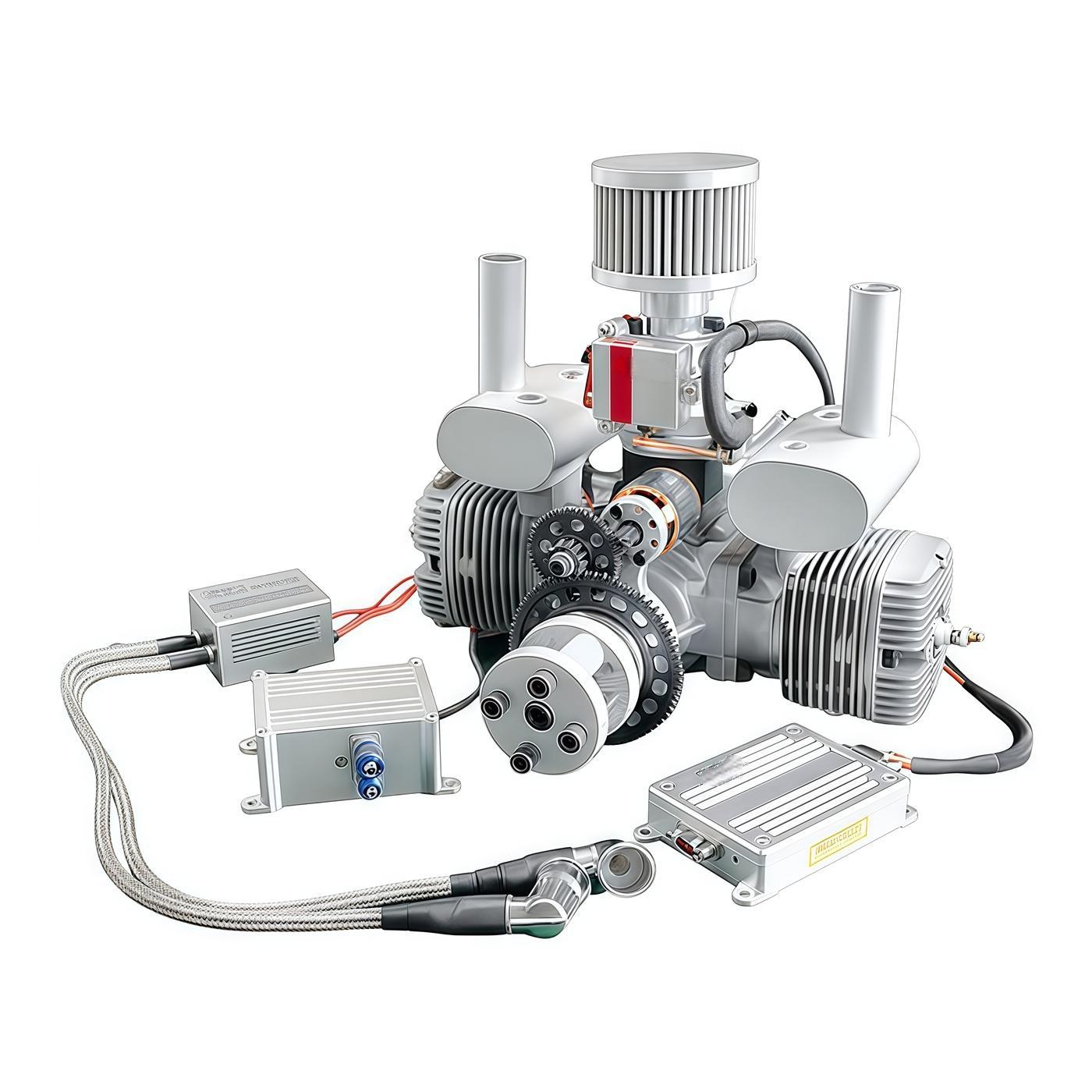

The MOPGTT70EFI is an ideal power solution for a range of demanding applications. It is perfectly suited for RC aircraft with a takeoff weight of 10-15kg, as well as fixed-wing drones within the same weight class. The standard equipment includes the complete China Moneypro electronic injection system, EFI ECU, oil pump, all required wiring harnesses, and a CDI module. The electric start version adds a dedicated electric starting device and electronic speed controller (electronic adjustment) for effortless ignition. The inclusion of two integrated welded exhaust pipes as standard not only improves power extraction but also effectively reduces and manages noise, a feature highly praised by RC enthusiasts flying in noise-sensitive areas. Whether for sport flying, aerial photography, or professional drone operations, the MOPGTT70EFI delivers the reliability and power needed for peak performance.
Conclusion: Elevate Your Flight with Precision and Reliability
The China Moneypro MOPGTT70EFI is more than just an engine; it’s a finely-tuned instrument designed for the discerning RC enthusiast. With its horizontally opposed configuration, advanced EFI system, precision forged internals, and industry-leading tolerances, it offers a rare combination of power, stability, and efficiency. The MOPGTT70EFI ensures that whether you are piloting a scale RC aircraft or a demanding fixed-wing drone, you have a reliable and responsive power source. Upgrade to the MOPGTT70EFI and experience the difference that professional-grade engineering makes in every flight, bringing new levels of performance and peace of mind to your airborne projects.
